Número de pieza AS21922-6

Tube Fitting Clinch Sleeve
Descripción

Sleeve clinch tubefi

Disponibilidad de stock  Códigos de condición del producto

Número de pieza as21922-6 está en stock en las siguientes cantidades y condiciones.

  • NE: 1104
  • NS: 330
  • SV: 4
  • OH: 1
  • AR: 1

Nota: La disponibilidad de este artículo se actualizó por última vez 07/14/2025 y puede haber cambiado desde entonces. Solicite una cotización para conocer los precios y la disponibilidad actualizados.

Precios y disponibilidad

Envíe este formulario para conocer los precios actuales y la disponibilidad de esta NSN.
Número de pieza:
Cantidad:
Dirección de correo electrónico:
Teléfono:
Referencia:
Compañía:
Nombre:

No compartimos ni vendemos su información a nadie.
Privacidad | Letra chica

All major credit cards accepted as well as gov. p-cards

Imágenes

Imágenes de referencia de esta pieza

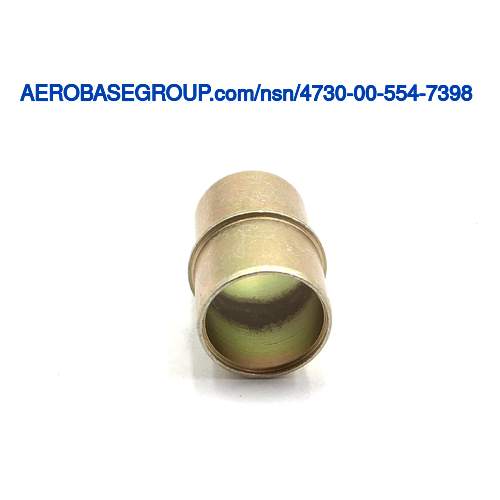

Imagen del número de acciones nacionales 4730-00-554-7398

El precio histórico de este producto está entre 3.58 and 4.833 USD. Dependiendo de la cantidad, disponibilidad, condición, plazo de entrega y posible interrupción de un artículo, no podemos garantizar el precio hasta que le proporcionemos un presupuesto actualizado.

Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
as21922-6
Desmilitarización:
No
Vigencia:
N/A
Unidad de medida:
25 EA
NIIN:
005547398
NSN
Número de acciones nacionales:
4730-00-554-7398 4730005547398
TXT
Descripción:
Tube Fitting Clinch Sleeve
INC
INC
Código de nombre del artículo:
18025
MRC:
Indicates whether or not a ferrous alloy object has been subjected to a process whereby the outer portion is made substantially harder than the inner portion or core.AASG
Casehardening Indicator:
Not casehardened
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABHP
Overall Length:
0.660 inches
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
Grumman aerospace corporation A10 aircraft
MRC:
A measurement taken at right angles to the length of a flange,in distinction from thickness.AGFF
Flange Width:
0.060 inches
MRC:
The length of a straight line which passes through the center of a flange,and terminates at the outside circumference.AHTC
Flange Outside Diameter:
0.484 inches
MRC:
The angle of the end surface upon which the mated surface seats,expressed in degrees.AJFY
Seat Angle In Deg:
12.0
MRC:
The length of a straight line which passes through the center of the sleeve,with terminated points on the outside circumference.ARYW
Sleeve Outside Diameter:
0.435 inches
MRC:
The length of a straight line which passes through the center of the hose or tube for which the item is designed,and terminates at the outside circumference.CPMS
Hose/tube Outside Diameter For Which Designed:
0.375 inches
MRC:
The element,compound,or mixture of which an item is fabricated,excluding any surface treatment.MATL
Material:
Steel MIL-S-13433-CANCELED
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 12L14
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Cadmium
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Flareless
MRC:
Consists of plating,dip,and/or coating that cannot be wiped off.plating and/or coating is any chemical and/or metallic additive,electrochemical,or mild mechanical process which protects a surface.SURF
Surface Treatment:
Cadmium
