Descripción:

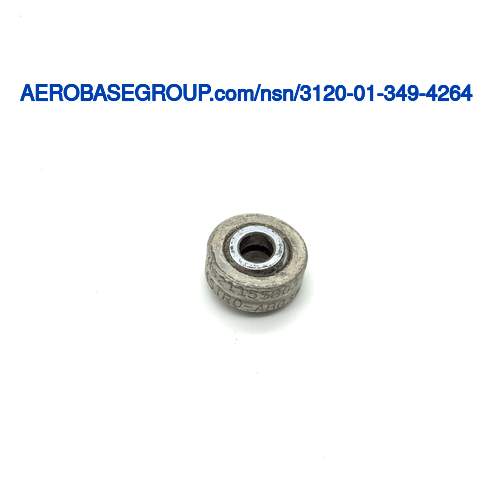

Self-aligning Plain Bearing
Código de nombre del artículo:
13208
MRC:
The length of a straight line which passes through the center of a circular bore,and terminates at the circumference.ABXV
Bore Diameter:
Between 0.1895 inches and 0.1900 inches
Outer Member Outside Diameter:
Between 0.5620 inches and 0.5625 inches
Outer Member Width:
Between 0.2130 inches and 0.2230 inches
Inner Member Width:
Between 0.2790 inches and 0.2810 inches
MRC:
The limiting radial load which the item can carry at rest without permanent deformation of the stressed surface or the danger of fracture.AGKP
Static Radial Load Rating:
2800 pounds
MRC:
A numeric value that reflects the hardness of an item when used in conjunction with a hardness rating scale.CQFM
Hardness Rating:
56.0 rockwell c inner MEMBER27.0 rockwell c outer race member and 36.0 rockwell c outer race member
MRC:
The feature inherent in the item design to effect lubrication.CTLM
Lubrication Feature:
Groove inner member and perforation inner member
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp E52100 inner member or steel comp 440C inner membercopper alloy 642 outer race member or copper alloy 630 outer race member
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Ams 5630 assn standard 2ND material response inner memberastm B124 assn standard all material responses outer race member or astm B150 assn standard all material responses outer race member or astm B283 assn standard 1ST material response outer race member
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Chromium inner membercadmium outer race member
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
QQ-P-416, type 1, class 2 federal specification single treatment response outer race member
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Without insert or liner
