Descripción:

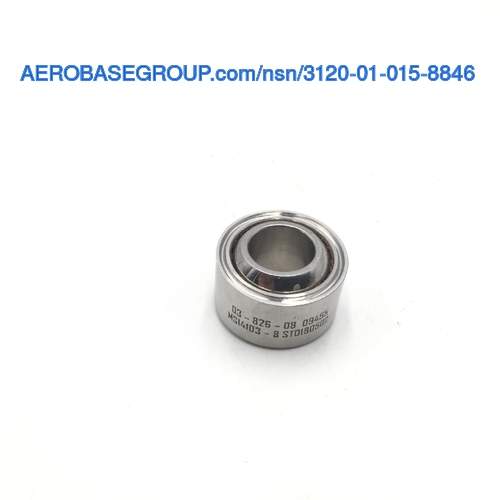

Self-aligning Plain Bearing
Código de nombre del artículo:
13208
MRC:
The length of a straight line which passes through the center of a circular bore,and terminates at the circumference.ABXV
Bore Diameter:
Between 0.4995 inches and 0.5000 inches
Outer Member Outside Diameter:
Between 0.9995 inches and 1.0000 inches
Outer Member Width:
Between 0.5000 inches and 0.5100 inches
Inner Member Width:
Between 0.6230 inches and 0.6250 inches
MRC:
The limiting radial load which the item can carry at rest without permanent deformation of the stressed surface or the danger of fracture.AGKP
Static Radial Load Rating:
27500 pounds
MRC:
A numeric value that reflects the hardness of an item when used in conjunction with a hardness rating scale.CQFM
Hardness Rating:
23.0 rockwell c outer race member and 35.0 rockwell c outer race member
MRC:
A numeric value that reflects the hardness of an item when used in conjunction with a hardness rating scale.CQFM
Hardness Rating:
55.0 rockwell c inner member and 62.0 rockwell c inner member
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 440C inner member
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 630 outer ring
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Ams 5630 assn standard single material response inner member
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Ams 5643 assn standard single material response outer ring
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
With insert and/or liner with staking groove
