Número de pieza AN848-16D

Hose Elbow
Disponibilidad de stock  Códigos de condición del producto

Número de pieza an848-16d está en stock en las siguientes cantidades y condiciones.

  • NS: 34
  • NE: 2

Nota: La disponibilidad de este artículo se actualizó por última vez 11/26/2022 y puede haber cambiado desde entonces. Solicite una cotización para conocer los precios y la disponibilidad actualizados.

Precios y disponibilidad

Envíe este formulario para conocer los precios actuales y la disponibilidad de esta NSN.
Número de pieza:
Cantidad:
Dirección de correo electrónico:
Teléfono:
Referencia:
Compañía:
Nombre:

No compartimos ni vendemos su información a nadie.
Privacidad | Letra chica

All major credit cards accepted as well as gov. p-cards

Imágenes

Imágenes de referencia de esta pieza

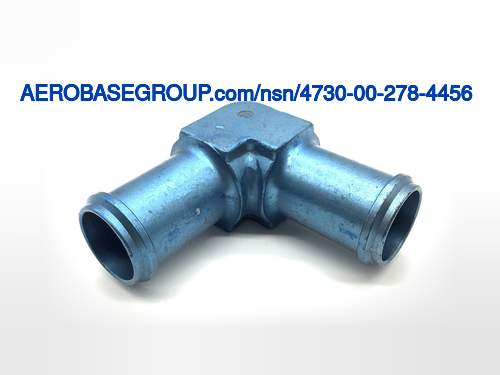

Imagen del número de acciones nacionales 4730-00-278-4456
Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
an848-16d
Desmilitarización:
No
Vigencia:
Unidad de medida:
NIIN:
002784456
NSN
Número de acciones nacionales:
4730-00-278-4456 4730002784456
TXT
Descripción:
Hose Elbow
INC
INC
Código de nombre del artículo:
03332
MRC:
A numeric-alpha designator indicating the pitch diameter tolerance and an external or internal thread.AAJD
Thread Class:
3A 1ST end bulkhead
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the connection.AHNC
Connection Style:
Beaded (hose) all ends
MRC:
A measurement of the longest dimension of the leg,in distinction from width.AHSJ
Leg Length:
2.281 inches 2ND end
MRC:
A measurement of the longest dimension of the leg,in distinction from width.AHSJ
Leg Length:
3.218 inches 1ST end
MRC:
Indicates the type of connection/s/.AWLS
Connection Type:
Unthreaded external hose all ends
MRC:
The number of threads on the item per linear inch measured on a line parallel to the thread axis.CMLP
Thready Qty Per Inch (tpi):
12 1ST end bulkhead
MRC:
A designation that is used for the purpose of general identification of the thread.CQJX
Thread Size:
1.312 inches 1ST end bulkhead
MRC:
The angle that the flow is turned from the straight flow.CRFY
Flow Angle:
90.0 degrees
MRC:
The nominal length of a straight line which passes through the center of the accommodated hose,and terminates at the inside circumference.CWDW
Inside Diameter Hose Accommodated:
1.000 inches all ends
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Aluminum alloy
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Anodize inside
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Anodize outside
MRC:
A designation distinguishing one group of thread diameter-pitch combinations from another by the number of threads per measurement scale for a specific diameter.THSD
Thread Series Designator:
Unj 1ST end bulkhead
MRC:
The document designator of the specification or standard which established the item of supply.ZZZK
Specification Data:
88044-AN848 government standard
