Número de pieza AN814-22

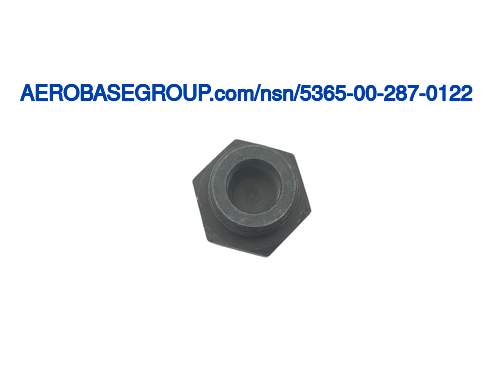

Machine Thread Plug
Disponibilidad de stock  Códigos de condición del producto

Número de pieza an814-22 está en stock en las siguientes cantidades y condiciones.

  • NE: 99
  • NS: 70
  • AR: 1
  • SV: 1
  • OH: 1

Nota: La disponibilidad de este artículo se actualizó por última vez 10/26/2020 y puede haber cambiado desde entonces. Solicite una cotización para conocer los precios y la disponibilidad actualizados.

Precios y disponibilidad

Envíe este formulario para conocer los precios actuales y la disponibilidad de esta NSN.
Número de pieza:
Cantidad:
Dirección de correo electrónico:
Teléfono:
Referencia:
Compañía:
Nombre:

No compartimos ni vendemos su información a nadie.
Privacidad | Letra chica

All major credit cards accepted as well as gov. p-cards

El precio histórico de este producto está entre 14.68 and 19.818 USD. Dependiendo de la cantidad, disponibilidad, condición, plazo de entrega y posible interrupción de un artículo, no podemos garantizar el precio hasta que le proporcionemos un presupuesto actualizado.

Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
an814-22
Desmilitarización:
No
Vigencia:
N/A
Unidad de medida:
1 EA
NIIN:
002870122
NSN
Número de acciones nacionales:
5365-00-287-0122 5365002870122
TXT
Descripción:
Machine Thread Plug
INC
INC
Código de nombre del artículo:
03801
MRC:
A numeric-alpha designator indicating the pitch diameter tolerance and an external or internal thread.AAJD
Thread Class:
3A external
MRC:
The direction of the thread when viewed axially. a right-hand thread winds in a clockwise direction while a left-hand thread winds in a counterclockwise direction.AAJF
Thread Direction:
Right-hand external
MRC:
A measurement of the extent of threads,including incomplete threads,along a line parallel to the longitudinal axis.AASA
Thread Length:
0.469 inches external
MRC:
A measurement from the bottom to the top of the head,in distinction from depth.AASU
Head Height:
0.406 inches
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABHP
Overall Length:
1.000 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the connection.AHNC
Connection Style:
Plain
MRC:
The length of a straight line which passes through the center of the body core,and terminates at the circumference.AJFC
Body Core Diameter:
0.609 inches
MRC:
An inside measurement between specified points on a core,in distinction from height.AJFD
Core Depth:
Between 0.469 inches and 0.484 inches
MRC:
None.AJFG
Bleeder Hole Center To Threaded End Distance:
Between 0.313 inches and 0.375 inches
MRC:
None.AJFH
Bleeder Hole Diameter:
0.062 inches
MRC:
The number of threads on the item per linear inch measured on a line parallel to the thread axis.CMLP
Thready Qty Per Inch (tpi):
12 external
MRC:
A designation that is used for the purpose of general identification of the thread.CQJX
Thread Size:
1.062 inches external
MRC:
The angle of the end surface upon which the mated surface seats.CQRB
Seat Angle:
45.0 degrees
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Cadmium
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
QQ-P-416, type 1, cl 2 federal specification single treatment response
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Plug machine w/bleeder holes
MRC:
A designation distinguishing one group of thread diameter-pitch combinations from another by the number of threads per measurement scale for a specific diameter.THSD
Thread Series Designator:
Un external
