Número de pieza 93202-2-B-12-30

Aircraft Mooring Tie Down
Disponibilidad de stock  Códigos de condición del producto

Número de pieza 93202-2-b-12-30 está en stock en las siguientes cantidades y condiciones.

  • NE: 1

Nota: La disponibilidad de este artículo se actualizó por última vez 05/03/2025 y puede haber cambiado desde entonces. Solicite una cotización para conocer los precios y la disponibilidad actualizados.

Precios y disponibilidad

Envíe este formulario para conocer los precios actuales y la disponibilidad de esta NSN.
Número de pieza:
Cantidad:
Dirección de correo electrónico:
Teléfono:
Referencia:
Compañía:
Nombre:

No compartimos ni vendemos su información a nadie.
Privacidad | Letra chica

All major credit cards accepted as well as gov. p-cards

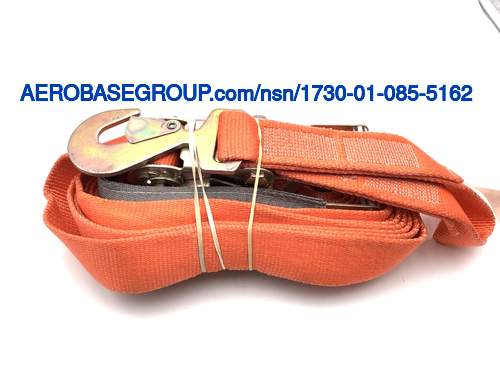

Imágenes

Imágenes de referencia de esta pieza
Imagen del número de acciones nacionales  1730-01-085-5162

El precio histórico de este producto está entre 839.68 and 1133.568 USD. Dependiendo de la cantidad, disponibilidad, condición, plazo de entrega y posible interrupción de un artículo, no podemos garantizar el precio hasta que le proporcionemos un presupuesto actualizado.

Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
93202-2-b-12-30
Desmilitarización:
No
Vigencia:
N/A
Unidad de medida:
1 AY
NIIN:
010855162
NSN
Número de acciones nacionales:
1730-01-085-5162 1730010855162
TXT
Descripción:
Aircraft Mooring Tie Down
INC
INC
Código de nombre del artículo:
06917
MRC:
Hardware furnished with the item.ACHP
Furnished Hardware:
1 hook 96603 12420-1, 1 d-ring 96603 11365-1
MRC:
The minimum force required to rupture the material,expressed in specified units of measure per unit of area.AFPH
Material Bursting Strength:
10.000 pounds
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
Used to secure helicopter to ships deck onboard 210 ft wmec 270 ft wmec and 378 ft whec coast guard vessels
MRC:
The element,compound,or mixture of which the item is fabricated,excluding and surface treatment,and its location.AKEL
Material And Location:
Polyamide nylon MIL-W-4088 webbing and steel connector snap and steel ring
MRC:
A numeric value that reflects the hardness of the material when used in conjunction with a hardness rating scale.ALME
Material Hardness Rating:
40.0 rockwell c
MRC:
A measurement of the longest dimension of the component,in distinction from width.ALMG
Component Length:
30.000 feet webbing
MRC:
A measurement taken at right angles to the length of the component,in distinction from thickness.ALMK
Component Width:
1.656 inches webbing and 1.844 inches webbing
MRC:
The type of tightening device included with the item.ALML
Tightening Device:
Ratchet buckle assembly
MRC:
The identifying numeric code of the originator that controls or manufactures the tightening device.ALMM
Tightening Device Manufacturer Code:
96603
MRC:
The identifying part number assigned to the tightening device by the manufacturer.ALMN
Tightening Device Manufacturer Part Number:
13196-5
