Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
910844-02
NSN
Número de acciones nacionales:
TXT
Descripción:

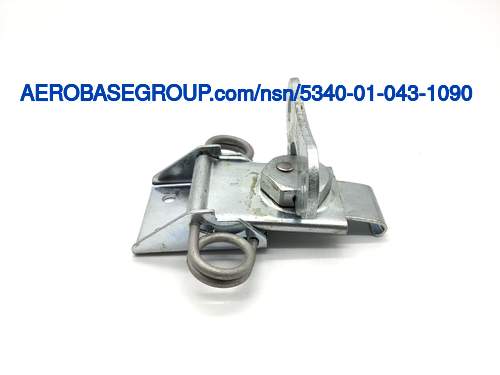

Clamping Catch
Código de nombre del artículo:
26525
MRC:
The length of a straight line which passes through the center of a hole,and terminates at the circumference.AAUB
Hole Diameter:
0.193 inches
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABXG
Overall Length:
3.719 inches
MRC:
The means used to operate the item.APHE
Operation Method:
Wing nut
MRC:
The number of holes provided.ASXK
Hole Quantity:
4
Engaging Surface Width:
0.875 inches
Catch Width:
1.594 inches
Wing Nut Width:
2.750 inches
Extended Tension Spring Width:
3.188 inches
MRC:
The distance measured in a straight line from the bottom to the top of an item.CTHX
Overall Height:
1.781 inches
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Stainless steel
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Cadmium wing nut and chromate wing nut
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Cadmium body and chromate body
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Cadmium hook and chromate hook
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Passivate pin
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Passivate rivet
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Passivate spring
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
QQ-P-416, type 2, class 2 federal specification all treatment responses body
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
QQ-P-416, type 2, class 2 federal specification all treatment responses hook
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
QQ-P-416, type 2, class 2 federal specification all treatment responses wing nut
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Special
