Número de pieza 8741800

Rod End Plain Bearing

Precios y disponibilidad

Envíe este formulario para conocer los precios actuales y la disponibilidad de esta NSN.
Número de pieza:
Cantidad:
Dirección de correo electrónico:
Teléfono:
Referencia:
Compañía:
Nombre:

No compartimos ni vendemos su información a nadie.
Privacidad | Letra chica

All major credit cards accepted as well as gov. p-cards

Imágenes

Imágenes de referencia de esta pieza

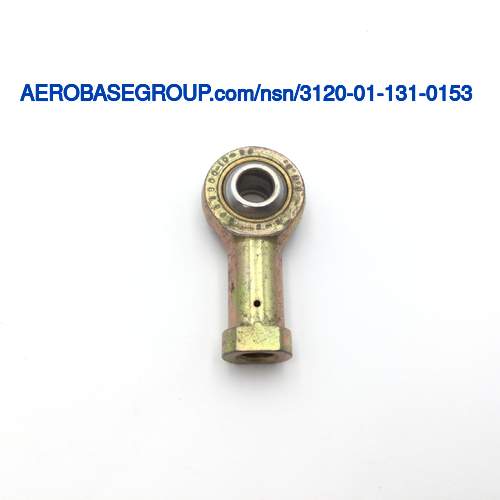

Imagen del número de acciones nacionales  3120-01-131-0153

El precio histórico de este producto está entre 37.56 and 50.706 USD. Dependiendo de la cantidad, disponibilidad, condición, plazo de entrega y posible interrupción de un artículo, no podemos garantizar el precio hasta que le proporcionemos un presupuesto actualizado.

Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
8741800
Desmilitarización:
No
Vigencia:
N/A
Unidad de medida:
No qup EA
NIIN:
011310153

Información de la pieza
USED-ON-235-0011

NSN
Número de acciones nacionales:
3120-01-131-0153 3120011310153
TXT
Descripción:
Rod End Plain Bearing
INC
INC
Código de nombre del artículo:
13209
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the shank.AAZF
Shank Style:
Internally threaded w/bead and wrench flats
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABHP
Overall Length:
Between 2.3020 inches and 2.3220 inches
MRC:
The length of a straight line which passes through the center of a circular bore,and terminates at the circumference.ABXV
Bore Diameter:
Between 0.3735 inches and 0.3775 inches
MRC:
None.AGGF
Outer Member Outside Diameter:
1.1250 inches
MRC:
None.AGGG
Bore Center To Shank End Distance:
Between 1.7400 inches and 1.7600 inches
MRC:
None.AGGH
Outer Member Width:
0.5490 inches
MRC:
None.AGGJ
Inner Member Width:
0.5930 inches
MRC:
None.AGGY
Shank Thread Length:
Between 0.5300 inches and 0.6240 inches
MRC:
The shortest straight line between wrenching flats,perpendicular to the height of the shank.AGHB
Shank Width Across Wrench Flats:
Between 0.5520 inches and 0.5720 inches
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Chromium inner member
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Ball type
