Descripción:

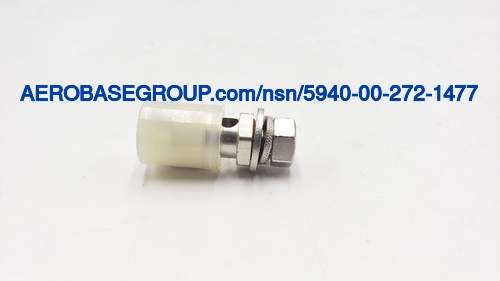

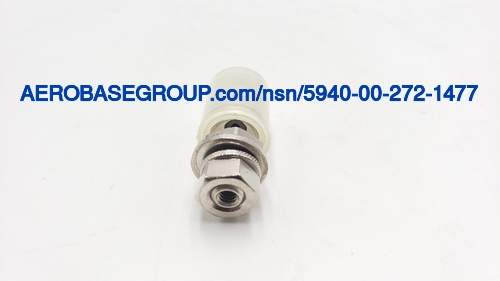

Electrical Binding Post
Código de nombre del artículo:
00883
MRC:
The distance measured in a straight line from the bottom to the top of an item.AAJT
Overall Height:
1.471 inches
MRC:
A measurement of the longest straight line across a circular cross-sectional plane.AAJW
Overall Diameter:
0.625 inches
MRC:
Distance from surface plane of mounting to top of item.AAKA
Maximum Height Above Mounting Surface:
1.065 inches
Wire Hole Diameter:
0.189 inches single end
MRC:
The feature consisting of sleeves,covering,caps,mounting bushings and the like,used to electrically insulate an item.AALV
Electrical Insulation Feature:
Insulated caps with uninsulated studs
MRC:
The style designation indicating the configuration that most nearly corresponds to the mounting method of the item.AALX
Mounting Method Style:
Swage
Minor Bushing Length:
0.025 inches
Swage Depth:
0.025 inches
Swage Outside Diameter:
0.050 inches
MRC:
The application of color or a series of colors for the expressed purpose of identifying the specific functional design and/or the system application of an item.AAPC
Identification Code Color:
White
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
W/s: assault amphibious vehicle command (AAVC-7A1); control center comm Tech (06MJUL83) (AN/TSQ-84); truck 5-TON M939 series switchboard, telephone manual tam A24807; truck cargo 5-TON, 6X6, xlwb w/e topographic support system (tss) hx unique
MRC:
The style designation indicating the configuration that most nearly corresponds to the basic appearance of the item.AGTA
Basic Shape Style:
Single post round (post binding)
MRC:
Indicates the type of connector or conductor accommodation included on the item.CSFJ
Conductor Accommodation Type:
Spring cap w/hole single end
Cap Outside Diameter:
0.625 inches
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Copper alloy 360 except insulation
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Plastic polyamide insulation
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
QQ-B-626 federal specification single material response except insulation
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Nickel except insulation single layer
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
QQ-N-290 federal specification single treatment response except insulation single layer
