Número de pieza 70307-03018-102

Flange To Hose Straight Adapter
Disponibilidad de stock  Códigos de condición del producto

Número de pieza 70307-03018-102 está en stock en las siguientes cantidades y condiciones.

  • NE: 1
  • AR: 1
  • SV: 1

Nota: La disponibilidad de este artículo se actualizó por última vez 01/07/2025 y puede haber cambiado desde entonces. Solicite una cotización para conocer los precios y la disponibilidad actualizados.

Precios y disponibilidad

Envíe este formulario para conocer los precios actuales y la disponibilidad de esta NSN.
Número de pieza:
Cantidad:
Dirección de correo electrónico:
Teléfono:
Referencia:
Compañía:
Nombre:

No compartimos ni vendemos su información a nadie.
Privacidad | Letra chica

All major credit cards accepted as well as gov. p-cards

Imágenes

Imágenes de referencia de esta pieza

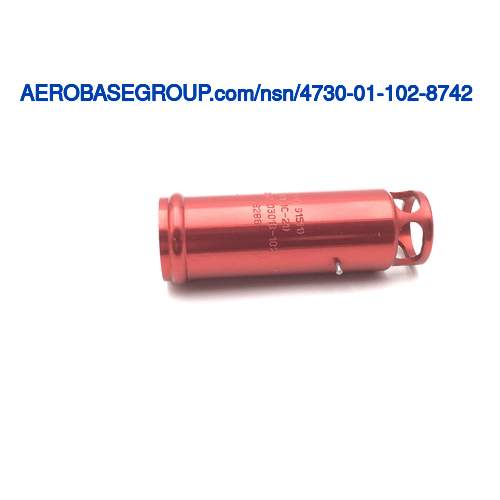

Imagen del número de acciones nacionales 4730-01-102-8742

El precio histórico de este producto está entre 395.58 and 534.033 USD. Dependiendo de la cantidad, disponibilidad, condición, plazo de entrega y posible interrupción de un artículo, no podemos garantizar el precio hasta que le proporcionemos un presupuesto actualizado.

Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
70307-03018-102
Desmilitarización:
No
Vigencia:
N/A
Unidad de medida:
1 EA
NIIN:
011028742

Información de la pieza
E/i sikorsky aircraft p/n 70307-03018 valve sump/tank drain fuselage aft lower fuel system

NSN
Número de acciones nacionales:
4730-01-102-8742 4730011028742
TXT
Descripción:
Flange To Hose Straight Adapter
INC
INC
Código de nombre del artículo:
29655
MRC:
The number of bolt holes provided on the item.AECS
Bolt Hole Quantity:
4 1ST end
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the connection.AHNC
Connection Style:
Beaded hose 2ND end
MRC:
A nominal measurement taken at right angles to the length of an item,in distinction from thickness.AKGF
Width:
3.000 inches 1ST end
MRC:
A nominal measurement of the longest dimension of an item,in distinction from width.AKGG
Length:
3.000 inches 1ST end
MRC:
The physical configuration of the flange.ARKN
Flange Shape:
Rectangular with holes 1ST end
MRC:
Indicates the type of connection/s/.AWLS
Connection Type:
Flange 1ST end
MRC:
Indicates the type of connection/s/.AWLS
Connection Type:
Unthreaded internal hose 2ND end
MRC:
A nominal measurement of the smallest dimension of an item,in distinction from length or width.CWCK
Thickness:
0.230 inches 1ST end
MRC:
The nominal length of a straight line which passes through the center of the bolt hole,and terminates at the circumference.CWCQ
Bolt Hole Diameter:
0.267 inches 1ST end
MRC:
The center to center nominal distance between bolt holes along the length of an item.CWCY
Center To Center Distance Between Bolt Holes Along Length:
2.120 inches 1ST end
MRC:
The center to center nominal distance between bolt holes along the width of an item.CWDC
Center To Center Distance Between Bolt Holes Along Width:
2.120 inches 1ST end
MRC:
The design of the flange face.CWDF
Flange Face Design:
Raised straight 1ST end
MRC:
A nominal measurement from the bottom to the top surface of a raised face,in distinction from depth.CWDH
Raised Face Height:
0.170 inches 1ST end
MRC:
The nominal length of a straight line which passes through the center of a raised face,and terminates at the circumference.CWDL
Raised Face Diameter:
1.990 inches 1ST end
MRC:
The nominal length of a straight line which passes through the center of the accommodated hose,and terminates at the inside circumference.CWDW
Inside Diameter Hose Accommodated:
1.076 inches 2ND end
MRC:
The nominal length of a straight line which passes through the center of the accommodated hose,and terminates at the outside circumference.CWDZ
Outside Diameter Hose Accommodated:
1.250 inches 2ND end
MRC:
The nominal dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.CWFR
Nominallength:
4.000 inches
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Stainless steel or copper alloy
MRC:
The type of media for which the item is designed.MEDA
Media For Which Designed:
Fuel single response
