Número de pieza 7-113100108-3

Plain Encased Seal

Precios y disponibilidad

Envíe este formulario para conocer los precios actuales y la disponibilidad de esta NSN.
Número de pieza:
Cantidad:
Dirección de correo electrónico:
Teléfono:
Referencia:
Compañía:
Nombre:

No compartimos ni vendemos su información a nadie.
Privacidad | Letra chica

All major credit cards accepted as well as gov. p-cards

Imágenes

Imágenes de referencia de esta pieza

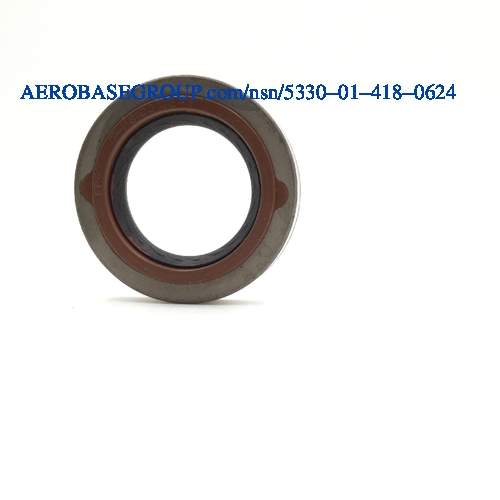

Imagen del número de acciones nacionales  5330-01-418-0624

El precio histórico de este producto está entre 191.74 and 258.849 USD. Dependiendo de la cantidad, disponibilidad, condición, plazo de entrega y posible interrupción de un artículo, no podemos garantizar el precio hasta que le proporcionemos un presupuesto actualizado.

Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
7-113100108-3
Desmilitarización:
No
Vigencia:
N/A
Unidad de medida:
1 EA
NIIN:
014180624

Información de la pieza
Seal plain encased - apu compressor and hydraulicpump, main transmission

NSN
Número de acciones nacionales:
5330-01-418-0624 5330014180624
TXT
Descripción:
Plain Encased Seal
INC
INC
Código de nombre del artículo:
04214
MRC:
A value which expresses the degree of heat or cold as applied to the operation,or limitation of operation,of an item.ABJH
Tempurature Rating:
-65.0 degrees fahrenheit and 250.0 degrees fahrenheit
MRC:
The length of a straight line which passes through the center of the accommodation for the shaft,and terminates at the circumference.ABVM
Accommodated Shaft Diameter:
0.875 inches
MRC:
A measurement taken between the flat surfaces /front and back/ of the seal,in distinction from thickness.ADUC
Seal Width:
Between 0.254 inches and 0.286 inches
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
AH-64 apache helicopter
MRC:
The length of a straight line which passes through the center of a circular housing bore,and terminates at the circumference.CPCW
Housing Bore Diameter:
1.379 inches
MRC:
Those unusual or unique characteristics or qualities of an item not covered in the other requirements and which are determined to be essential for identification.FEAT
Special Features:
2 psi maximum operating pressure MIL-L-23699 oil lubricant 2 each 0.062 inch removal holes in metal case mfr source control reference (SR-1 7-113100108 code 8V613
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Rubber fluorocarbon class fpm packing
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 304 case
