Número de pieza 654476-3

Electrical Receptacle Connector
Disponibilidad de stock  Códigos de condición del producto

Número de pieza 654476-3 está en stock en las siguientes cantidades y condiciones.

  • NE: 1

Nota: La disponibilidad de este artículo se actualizó por última vez 04/01/2025 y puede haber cambiado desde entonces. Solicite una cotización para conocer los precios y la disponibilidad actualizados.

Precios y disponibilidad

Envíe este formulario para conocer los precios actuales y la disponibilidad de esta NSN.
Número de pieza:
Cantidad:
Dirección de correo electrónico:
Teléfono:
Referencia:
Compañía:
Nombre:

No compartimos ni vendemos su información a nadie.
Privacidad | Letra chica

All major credit cards accepted as well as gov. p-cards

Imágenes

Imágenes de referencia de esta pieza

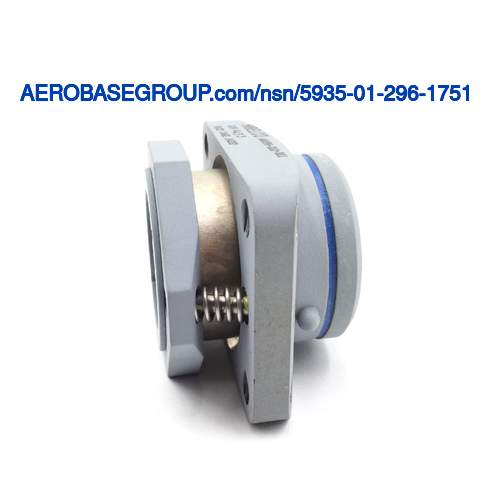

Imagen del número de acciones nacionales 5935-01-296-1751

El precio histórico de este producto está entre 1355 and 1829.25 USD. Dependiendo de la cantidad, disponibilidad, condición, plazo de entrega y posible interrupción de un artículo, no podemos garantizar el precio hasta que le proporcionemos un presupuesto actualizado.

Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
654476-3
Desmilitarización:
Yes - DEMIL/MLI
Vigencia:
N/A
Unidad de medida:
1 EA
NIIN:
012961751
NSN
Número de acciones nacionales:
5935-01-296-1751 5935012961751
TXT
Descripción:
Electrical Receptacle Connector
INC
INC
Código de nombre del artículo:
15093
INC
COM
Conformidad:
* ITAR Controlled
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the body.AAQL
Body Style:
Straight shape rectangular
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABHP
Overall Length:
Between 2.396 inches and 2.416 inches
MRC:
The distance measured in a straight line from the bottom to the top of an item.ABKW
Overall Height:
Between 1.175 inches and 1.180 inches
MRC:
An overall measurement taken at right angles to the length of an item,in distinction from thickness.ABMK
Overall Width:
Between 1.690 inches and 1.710 inches
MRC:
The number of mating ends provided with the item which are designed to accommodate another connector.AFQW
Mating End Quantity:
1
MRC:
An indication of whether or not the contact(s) is removable.AFQZ
Contact Removability:
Removable single mating end all contact groupings
MRC:
Indicates the location of the terminal/s/ on the item.CQTM
Terminal Location:
Back single mating end all contact groupings
MRC:
The chemical compound or mechanical mixture properties of which the insert is fabricated.CQZG
Insert Material:
Plastic polyamide single mating end
MRC:
Indicates the type of terminal for providing electrical connection to the item.CSCF
Terminal Type:
Crimp single mating end all contact groupings
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the insert material.CTKL
Insert Material Specification:
L-P-410 federal specification single material response single mating end
MRC:
The number of contacts included with the item which provides electrical connection.CXCG
Included Contact Quantity:
10 single mating end 2ND contact grouping
MRC:
The number of contacts included with the item which provides electrical connection.CXCG
Included Contact Quantity:
18 single mating end 3RD contact grouping
MRC:
The number of contacts included with the item which provides electrical connection.CXCG
Included Contact Quantity:
2 single mating end 1ST contact grouping
MRC:
Indicates the type of contact(s) included with the item.CXCL
Included Contact Type:
Round socket single mating end all contact groupings
