Número de pieza 5M968-4

Terminal Board
Disponibilidad de stock  Códigos de condición del producto

Número de pieza 5m968-4 está en stock en las siguientes cantidades y condiciones.

  • NS: 338
  • NE: 1012
  • AR: 1
  • SV: 1

Nota: La disponibilidad de este artículo se actualizó por última vez 02/07/2023 y puede haber cambiado desde entonces. Solicite una cotización para conocer los precios y la disponibilidad actualizados.

Precios y disponibilidad

Envíe este formulario para conocer los precios actuales y la disponibilidad de esta NSN.
Número de pieza:
Cantidad:
Dirección de correo electrónico:
Teléfono:
Referencia:
Compañía:
Nombre:

No compartimos ni vendemos su información a nadie.
Privacidad | Letra chica

All major credit cards accepted as well as gov. p-cards

Imágenes

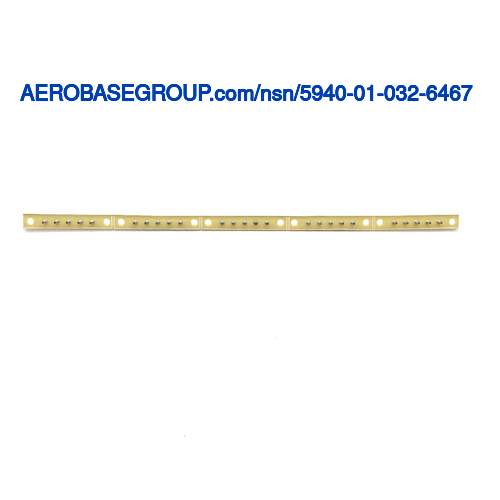

Imágenes de referencia de esta pieza
Imagen del número de acciones nacionales 5940-01-032-6467

El precio histórico de este producto está entre 46.9 and 63.315 USD. Dependiendo de la cantidad, disponibilidad, condición, plazo de entrega y posible interrupción de un artículo, no podemos garantizar el precio hasta que le proporcionemos un presupuesto actualizado.

Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
5m968-4
Desmilitarización:
No
Vigencia:
N/A
Unidad de medida:
1 EA
NIIN:
010326467
NSN
Número de acciones nacionales:
5940-01-032-6467 5940010326467
TXT
Descripción:
Terminal Board
INC
INC
Código de nombre del artículo:
00404
MRC:
The length of a straight line which passes through the center of a mounting hole,and terminates at the circumference.AAMA
Mounting Hole Diameter:
0.128 inches
MRC:
The maximum voltage the insulating materials of the item will withstand without resulting in disruptive discharge or deterioration,expressed in volts.AAPB
Dielectric Withstanding Voltage In Volts:
1500.0
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the body.AAQL
Body Style:
Strip type
MRC:
The structural characteristic(s) of the board.ABCX
Board Construction:
Solid construction
MRC:
None.ABDU
Center To Center Distance Between Mounting Facilities Parallel To Length:
2.020 inches
MRC:
None.ABDW
Distance From Bottom Edge Of Terminal Board To Center Of Mounting Hole:
0.560 inches
MRC:
None.ABDX
Distance From Left Edge Of Terminal Board To Center Of First Mounting Facility:
0.180 inches
MRC:
None.ABGN
Boardlength:
4.400 inches
MRC:
None.ABGP
Boardwidth:
1.120 inches
MRC:
None.ABGT
Board Thickness:
0.093 inches
MRC:
Indicates the type and number of facilities by which the item is mounted.AXHR
Mounting Facility Type And Quantity:
3 unthreaded hole
MRC:
Indicates the type of nonfeedthru terminal furnished with the item.CRNL
Nonfeedthru Terminal Type:
434 single
MRC:
The number of nonfeedthru terminals furnished with the item.CSCS
Nonfeedthru Terminal Quantity:
32 single
MRC:
The arrangement of terminal positions on the item.CWLG
Terminal Pattern Arrangement:
Random
MRC:
The design of the terminal.CWLN
Terminal Design:
Nonfeedthru
MRC:
Markings included on an item for the purpose of offering instructions or warnings or to indicate the purpose,function,or application of the item.excludes manufacturers part numbers,symbols,or the like.MARK
Special Markings:
1 through 32
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Copper alloy 360 terminals
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Glass fiber board and plastic epoxy board
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
MIL-P-18177, type gee military specification single material response board
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
QQ-B-626, comp 22, 1/2 h federal specification single material response terminals
