Número de pieza 5M2500-003

Knob
Disponibilidad de stock  Códigos de condición del producto

Número de pieza 5m2500-003 está en stock en las siguientes cantidades y condiciones.

  • NE: 37
  • NS: 1

Nota: La disponibilidad de este artículo se actualizó por última vez 04/22/2022 y puede haber cambiado desde entonces. Solicite una cotización para conocer los precios y la disponibilidad actualizados.

Precios y disponibilidad

Envíe este formulario para conocer los precios actuales y la disponibilidad de esta NSN.
Número de pieza:
Cantidad:
Dirección de correo electrónico:
Teléfono:
Referencia:
Compañía:
Nombre:

No compartimos ni vendemos su información a nadie.
Privacidad | Letra chica

All major credit cards accepted as well as gov. p-cards

Imágenes

Imágenes de referencia de esta pieza

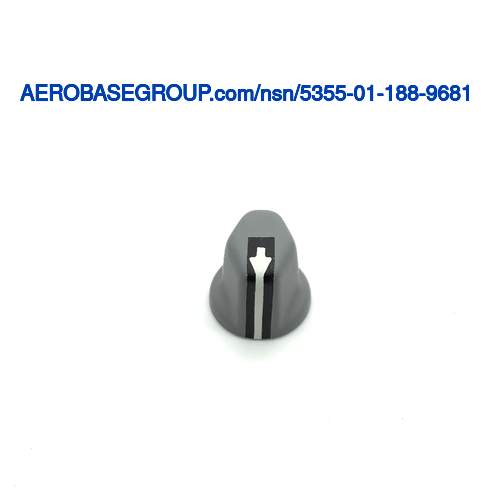

Imagen del número de acciones nacionales 5355-01-188-9681

El precio histórico de este producto está entre 37.1 and 50.085 USD. Dependiendo de la cantidad, disponibilidad, condición, plazo de entrega y posible interrupción de un artículo, no podemos garantizar el precio hasta que le proporcionemos un presupuesto actualizado.

Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
5m2500-003
Desmilitarización:
No
Vigencia:
N/A
Unidad de medida:
1 EA
NIIN:
011889681

Información de la pieza
Round knob with bar face shaft accommodation hole counterbore, 0.370 in Dia 0.090 in Depth ref marking is on black border arrow on top of knob indicator line on side flat on shaft to be perpindicular to center line of arrow

NSN
Número de acciones nacionales:
5355-01-188-9681 5355011889681
TXT
Descripción:
Knob
INC
INC
Código de nombre del artículo:
03263
MRC:
The length of a straight line which passes through the center of a circular figure or body,and terminates at the inside circumference.AARX
Inside Diameter:
Between 0.127 inches and 0.129 inches
MRC:
The number of setscrew holes included on the item.ABFR
Setscrew Hole Quantity:
2
MRC:
The distance from the center of the hole to the base of the knob or base of skirt if with integrally molded skirt.ABFU
Distance From Hole Center To Knob/skirt Base:
0.250 inches
MRC:
An overall measurement between specified points of an item,in distinction from height.ABFY
Overall Depth:
0.500 inches
MRC:
The texture of that portion of the item which is designed to be grasped.ABHG
Gripping Surface Condition:
Grip aid
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the shaft accommodation.ABHH
Shaft Accommodation Style:
Flatted one side
MRC:
The length of a straight line which passes through the center of a circular figure or body,and terminates at the outside circumference.ABKV
Outside Diameter:
0.620 inches
MRC:
A visible tracing or impression,and the like,of alpha and/or numeric characters,symbols,and the like.ABSP
Reference Marking:
Index line and arrow
MRC:
The means used to attach the item.ABSX
Attachment Method:
Setscrews
MRC:
An inside measurement taken at right angles to the length of an item,in distinction from thickness.ADJT
Inside Width:
Between 0.107 inches and 0.109 inches
MRC:
An overall measurement of the smallest dimension of an item,in distinction from length or width.ADUM
Overall Thickness:
0.560 inches
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
Aircraft B-1B, aircraft eagle F-15
MRC:
The ability of the material to transmit light and allow visual perception.AJQE
Material Transparency:
Opaque
MRC:
Indicates the type of drive provided for turning,rotating,or positioning the screw.CBSC
Screw Drive Type:
Hexagon socket
MRC:
The number of threads on the item per linear inch measured on a line parallel to the thread axis.CMLP
Thready Qty Per Inch (tpi):
40 screw hole
MRC:
A designation that is used for the purpose of general identification of the thread.CQJX
Thread Size:
0.112 inches screw hole
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Round with bar face
MRC:
A designation distinguishing one group of thread diameter-pitch combinations from another by the number of threads per measurement scale for a specific diameter.THSD
Thread Series Designator:
Unc screw hole
