Número de pieza:
582r323h01
NSN
Número de acciones nacionales:
TXT
Descripción:

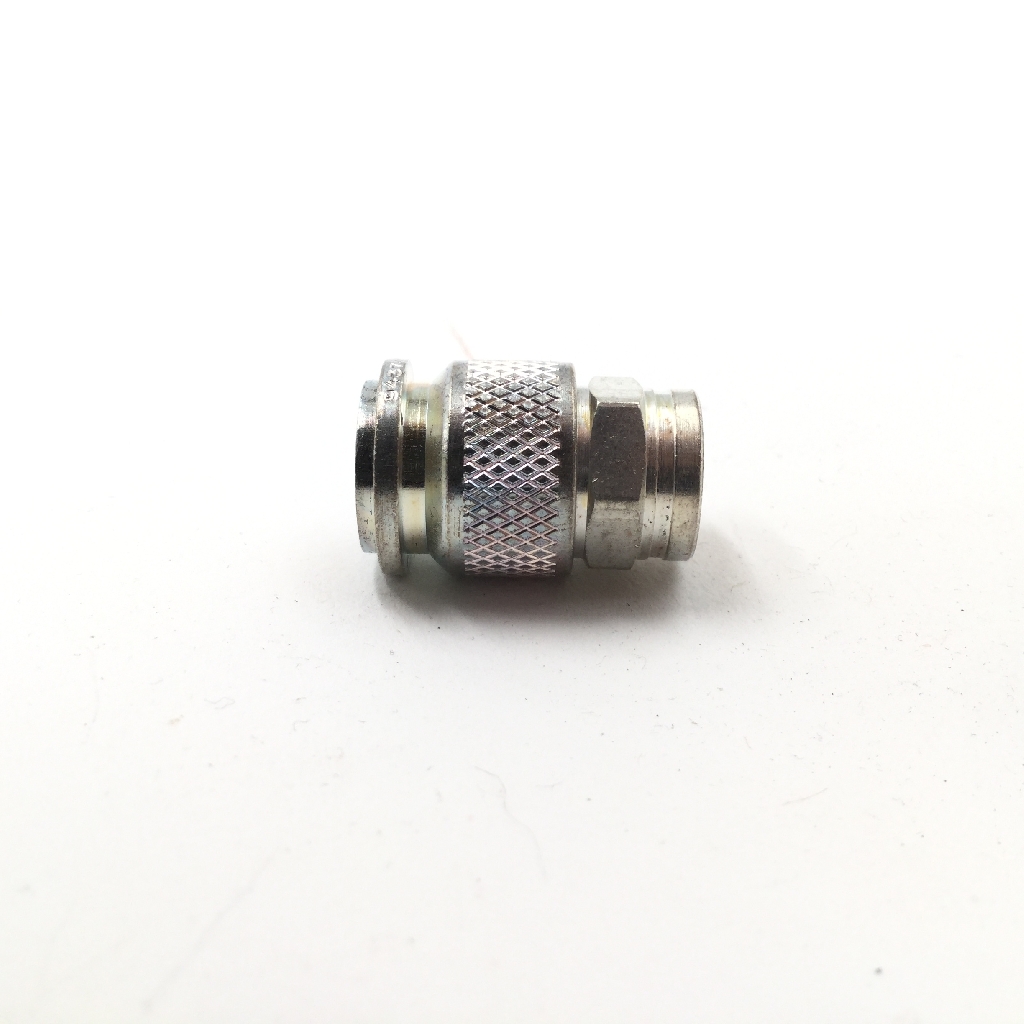

Electrical Plug Connector
Código de nombre del artículo:
01938
MRC:
The environmental elements or conditions that an item is designed or protected to resist or withstand satisfactorily.ADZC
Environmental Protection:
Corrosion resistant and shock resistant and vibration resistant
MRC:
The number of mating ends provided with the item which are designed to accommodate another connector.AFQW
Mating End Quantity:
1
MRC:
The chemical compound or mechanical mixture properties of which the contact is fabricated.CQTZ
Contact Material:
Copper alloy single mating end 1ST contact grouping
MRC:
The chemical compound or mechanical mixture properties of which the contact is fabricated.CQTZ
Contact Material:
Copper alloy single mating end 2ND contact grouping
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the contact surface(s) and cannot be wiped off.CQYH
Contact Surface Treatment:
Gold single mating end all contact groupings
MRC:
The chemical compound or mechanical mixture properties of which the insert is fabricated.CQZG
Insert Material:
Plastic tetrafluoroethylene single mating end
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the contact surface treatment material.CRBJ
Contact Surface Treatment Specification:
MIL-G-45204, type ii class 2 3RD treatment response clear printed value single mating end all contact groupings
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the contact material.CSGF
Contact Material Specification:
QQ-B-626 federal specification 2ND material response single mating end 2ND contact grouping
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the contact material.CSGF
Contact Material Specification:
QQ-C-530, condition h federal specification 1ST material response single mating end 1ST contact grouping
MRC:
The chemical compound or mechanical mixture properties of which the shell is fabricated.CSPT
Shell Material:
Copper alloy
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the shell surface/s/ and cannot be wiped off.CSWM
Shell Surface Treatment:
Silver
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like that identifies the shell surface treatment material.CTBC
Shell Surface Treatment Specification:
MIL-F-14072 military specification single treatment response
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the shell material.CTHH
Shell Material Specification:
QQ-B-626, half hard composition 22 federal specification single material response
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the insert material.CTKL
Insert Material Specification:
MIL-P-19468 military specification single material response single mating end
MRC:
The number of contacts included with the item which provides electrical connection.CXCG
Included Contact Quantity:
1 single mating end 1ST contact grouping
MRC:
The number of contacts included with the item which provides electrical connection.CXCG
Included Contact Quantity:
1 single mating end 2ND contact grouping
MRC:
A characteristic of light that can be specified in terms of luminance,dominant wavelength,and purity.HUES
Color:
Natural
MRC:
An indication of the precious material and its location in the item.PMLC
Precious Material And Location:
Contacts gold and shell silver
MRC:
Identification of the precious material contained in the item.PRMT
Precious Material:
Gold and silver
