Número de pieza 55722-1

Loop Clamp

Precios y disponibilidad

Envíe este formulario para conocer los precios actuales y la disponibilidad de esta NSN.
Número de pieza:
Cantidad:
Dirección de correo electrónico:
Teléfono:
Referencia:
Compañía:
Nombre:

No compartimos ni vendemos su información a nadie.
Privacidad | Letra chica

All major credit cards accepted as well as gov. p-cards

Imágenes

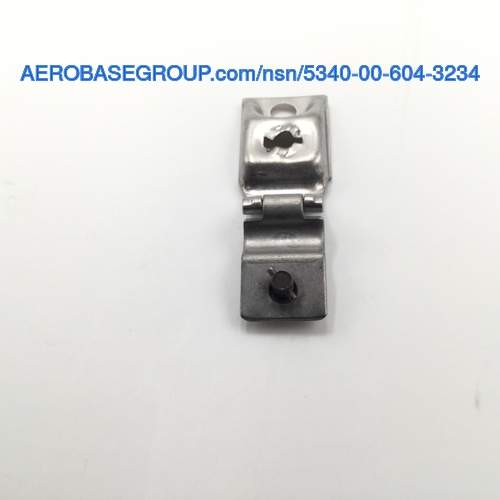

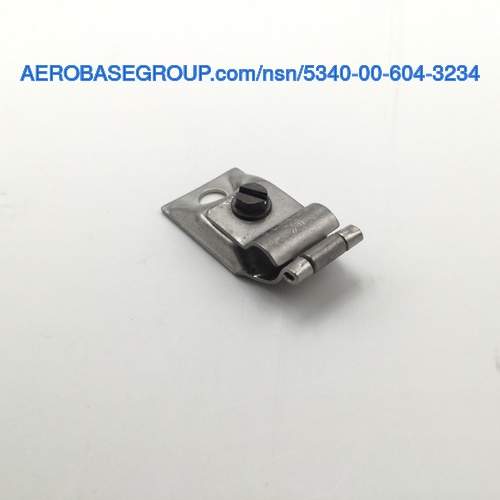

Imágenes de referencia de esta pieza
Imagen del número de acciones nacionales  5340-00-604-3234 Imagen del número de acciones nacionales  5340-00-604-3234 Imagen del número de acciones nacionales  5340-00-604-3234

El precio histórico de este producto está entre 37.44 and 50.544 USD. Dependiendo de la cantidad, disponibilidad, condición, plazo de entrega y posible interrupción de un artículo, no podemos garantizar el precio hasta que le proporcionemos un presupuesto actualizado.

Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
55722-1
Desmilitarización:
No
Vigencia:
N/A
Unidad de medida:
1 EA
NIIN:
006043234
NSN
Número de acciones nacionales:
5340-00-604-3234 5340006043234
TXT
Descripción:
Loop Clamp
INC
INC
Código de nombre del artículo:
17532
MRC:
Indicates the type of hole/s/ in the tongue.AAAL
Tongue Hole Type:
Round unthreaded
MRC:
An overall measurement taken at right angles to the length of an item,in distinction from thickness.ABMK
Overall Width:
2.060 inches
MRC:
The length of a straight line which passes through the center of a circular figure or body,and terminates at the circumference.ABMZ
Diameter:
0.197 inches
MRC:
A measurement of the smallest dimension of the material,in distinction from length or width.ABPX
Material Thickness:
0.036 inches
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
Fire detection system
MRC:
Indicates the type of fastening device provided.AXWJ
Fastening Device Type:
Plain slotted head screw
MRC:
None.AZCY
Center To Center Distance Between Loop And Mounting Hole:
1.230 inches
MRC:
None.AZDC
Distance From Loop Center To Tongue End:
0.451 inches
MRC:
The length of a straight line which passes through the center of the loop,and terminates at the inside circumference.BZTN
Loop Inside Diameter:
0.255 inches
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 321 or steel comp 347
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Any acceptable
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Hinged & center mtd
