Número de pieza 547A003013

Flat Washer
Descripción

Washer

Precios y disponibilidad

Envíe este formulario para conocer los precios actuales y la disponibilidad de esta NSN.
Número de pieza:
Cantidad:
Dirección de correo electrónico:
Teléfono:
Referencia:
Compañía:
Nombre:

No compartimos ni vendemos su información a nadie.
Privacidad | Letra chica

All major credit cards accepted as well as gov. p-cards

Imágenes

Imágenes de referencia de esta pieza

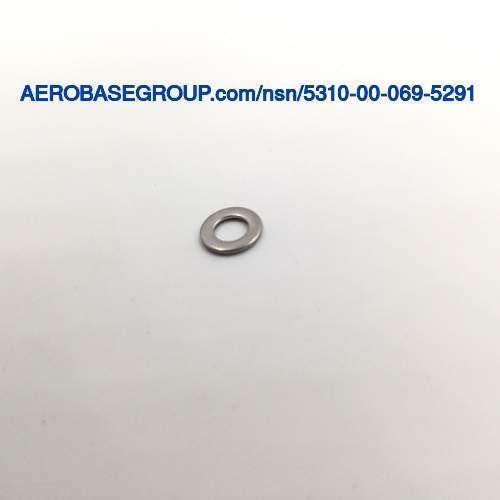

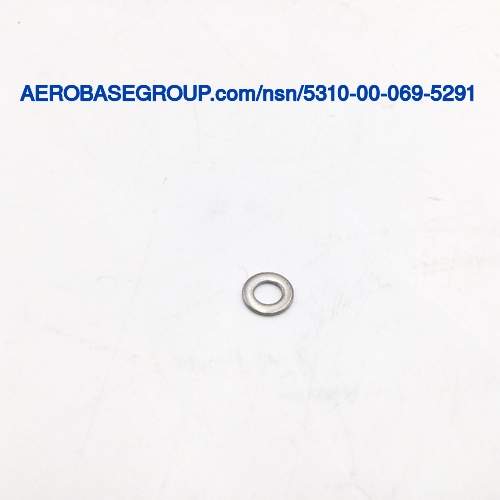

Imagen del número de acciones nacionales 5310-00-069-5291 Imagen del número de acciones nacionales 5310-00-069-5291

El precio histórico de este producto está entre 1.62 and 2.187 USD. Dependiendo de la cantidad, disponibilidad, condición, plazo de entrega y posible interrupción de un artículo, no podemos garantizar el precio hasta que le proporcionemos un presupuesto actualizado.

Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
547a003013
Desmilitarización:
No
Vigencia:
N/A
Unidad de medida:
1 HD
NIIN:
000695291
NSN
Número de acciones nacionales:
5310-00-069-5291 5310000695291
TXT
Descripción:
Flat Washer
INC
INC
Código de nombre del artículo:
13393
MRC:
The style designation indicating the configuration that most nearly corresponds to the cross-sectional shape of the item.AAGR
Cross Sectional Shape:
Rectangular
MRC:
The length of a straight line which passes through the center of a hole,and terminates at the circumference.AAUB
Hole Diameter:
Between 0.169 inches and 0.179 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the peripheral shape of the item.ABMW
Edge Shape:
Round
MRC:
The style designation indicating the configuration that most nearly corresponds to the shape of the center hole.ABMX
Center Hole Shape:
1 round
MRC:
The style designation indicating the configuration that most nearly corresponds to the shape of the center hole.ABMX
Center Hole Shape:
Round
MRC:
A measurement of the smallest dimension of an item,in distinction from length or width.ABNM
Thickness:
0.032 inches
MRC:
A measurement of the longest straight line across a circular cross-sectional plane.ADAV
Overall Diameter:
0.304 inches
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
Mrap RG-33
MRC:
Those features,not otherwise specified,which may be required for proper functioning of the item.CBBL
Features Provided:
Casehardened
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Stainless steel
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
QQ-S-766, cd a federal specification single material response
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Passivate
MRC:
The document designator of the specification or standard which established the item of supply.ZZZK
Specification Data:
80205-NAS620 professional/industrial association standard
