Número de pieza 5380-0002

Valve Seat

Precios y disponibilidad

Envíe este formulario para conocer los precios actuales y la disponibilidad de esta NSN.
Número de pieza:
Cantidad:
Dirección de correo electrónico:
Teléfono:
Referencia:
Compañía:
Nombre:

No compartimos ni vendemos su información a nadie.
Privacidad | Letra chica

All major credit cards accepted as well as gov. p-cards

Imágenes

Imágenes de referencia de esta pieza

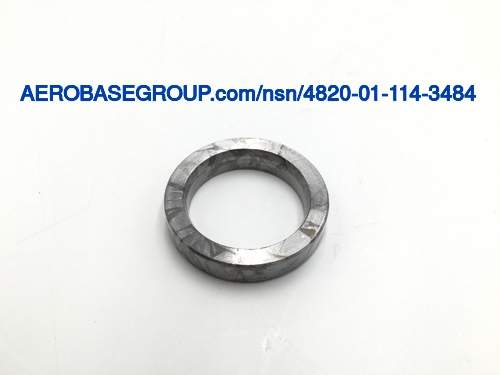

Imagen del número de acciones nacionales  4820-01-114-3484 Imagen del número de acciones nacionales  4820-01-114-3484

El precio histórico de este producto está entre 181.96 and 245.646 USD. Dependiendo de la cantidad, disponibilidad, condición, plazo de entrega y posible interrupción de un artículo, no podemos garantizar el precio hasta que le proporcionemos un presupuesto actualizado.

Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
5380-0002
Desmilitarización:
No
Vigencia:
N/A
Unidad de medida:
1 EA
NIIN:
011143484
NSN
Número de acciones nacionales:
4820-01-114-3484 4820011143484
TXT
Descripción:
Valve Seat
INC
INC
Código de nombre del artículo:
22113
MRC:
The distance measured in a straight line from the bottom to the top of an item.ABKW
Overall Height:
0.250 inches
MRC:
The length of a straight line which passes through the center of the body,and terminates at the outside circumference.ADAR
Body Outside Diameter:
Between 1.363 inches and 1.367 inches
MRC:
The length of a straight line which passes through the center of a body,and terminates at the inside circumference.ADAS
Body Inside Diameter:
Between 0.992 inches and 0.997 inches
MRC:
The angle of the end surface upon which the mated surface seats,expressed in degrees.AJSG
Seat Angle In Deg:
30.000
MRC:
Indicates the type of seal accommodation included in or on the item.AJSH
Seal Accommodation Type:
Grooved
MRC:
A numeric value that reflects the hardness of an item when used in conjunction with a hardness rating scale.CQFM
Hardness Rating:
45.0 rockwell c and 50.0 rockwell c
MRC:
The physical configuration of the surface of the seat.CQKM
Seating Surface Shape:
Angular
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Plain
