Número de pieza 5075143

Extended Washer Self-locking Nut
Disponibilidad de stock  Códigos de condición del producto

Número de pieza 5075143 está en stock en las siguientes cantidades y condiciones.

  • NS: 88
  • NE: 121

Nota: La disponibilidad de este artículo se actualizó por última vez 11/04/2023 y puede haber cambiado desde entonces. Solicite una cotización para conocer los precios y la disponibilidad actualizados.

Precios y disponibilidad

Envíe este formulario para conocer los precios actuales y la disponibilidad de esta NSN.
Número de pieza:
Cantidad:
Dirección de correo electrónico:
Teléfono:
Referencia:
Compañía:
Nombre:

No compartimos ni vendemos su información a nadie.
Privacidad | Letra chica

All major credit cards accepted as well as gov. p-cards

Imágenes

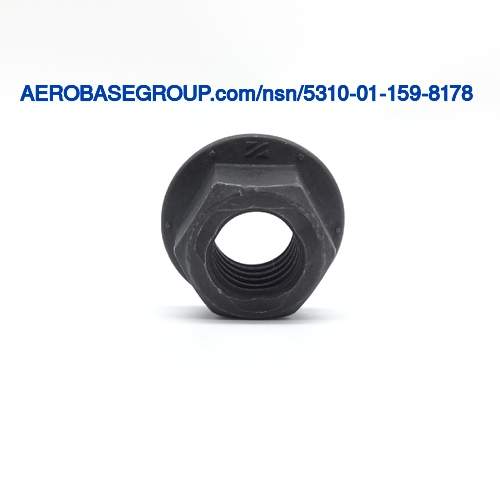

Imágenes de referencia de esta pieza
Imagen del número de acciones nacionales  5310-01-159-8178

El precio histórico de este producto está entre 1.66 and 2.241 USD. Dependiendo de la cantidad, disponibilidad, condición, plazo de entrega y posible interrupción de un artículo, no podemos garantizar el precio hasta que le proporcionemos un presupuesto actualizado.

Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
5075143
Desmilitarización:
No
Vigencia:
N/A
Unidad de medida:
1 EA
NIIN:
011598178

Información de la pieza
Weapon system essential

NSN
Número de acciones nacionales:
5310-01-159-8178 5310011598178
TXT
Descripción:
Extended Washer Self-locking Nut
INC
INC
Código de nombre del artículo:
29730
MRC:
A numeric-alpha designator indicating the pitch diameter tolerance and an external or internal thread.AAJD
Thread Class:
2B
MRC:
The direction of the thread when viewed axially. a right-hand thread winds in a clockwise direction while a left-hand thread winds in a counterclockwise direction.AAJF
Thread Direction:
Right-hand
MRC:
An element inserted into the fastener,or a design feature,that enables the fastener to effectively resist vibration and rotation.AAUM
Locking Feature:
Prevailing torque with metallic insert
MRC:
None.AAVX
Washer Outside Diameter:
Between 1.000 inches and 1.031 inches
MRC:
The distance measured in a straight line from the bottom to the top of an item.ABKW
Overall Height:
0.555 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the nut.ACTA
Nut Style:
Hexagon
MRC:
None.ADEM
Washer Thickness:
0.080 inches
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
Hemtt family (heavy expanded mobility tactical trucks) 2320-01-304-2277, truck pls (palletized loading system) 2320-01-442-1940, truck cbt (command bridge transporter); 4210-01-486-1035 tfft (tactical fire fighting truck) 2320-01-097-0260 hiab crane (hemtt)
MRC:
The shortest straight line between flats,perpendicular to the height.ASDB
Width Across Flats:
Between 0.736 inches and 0.752 inches
MRC:
A designation indicating the diameter-pitch combination and the number of threads per measurement scale applied to a series of diameters.BZRR
Thread Series:
Unc
MRC:
The number of threads on the item per linear inch measured on a line parallel to the thread axis.CMLP
Thready Qty Per Inch (tpi):
13
MRC:
A numeric value that reflects the hardness of an item when used in conjunction with a hardness rating scale.CQFM
Hardness Rating:
Between 24.0 rockwell c and 32.0 rockwell c
MRC:
A designation that is used for the purpose of general identification of the thread.CQJX
Thread Size:
0.500 inches
MRC:
The master requirement codes of those requirements which are technically critical by reason of tolerance,fit,performance,or other characteristics which affect identification of the item.CRTL
Criticality Code Justification:
Feat
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Phosphate
