Número de pieza 4002885

Tubular Rivet
Descripción

Rivet tubular ( f100

Precios y disponibilidad

Envíe este formulario para conocer los precios actuales y la disponibilidad de esta NSN.
Número de pieza:
Cantidad:
Dirección de correo electrónico:
Teléfono:
Referencia:
Compañía:
Nombre:

No compartimos ni vendemos su información a nadie.
Privacidad | Letra chica

All major credit cards accepted as well as gov. p-cards

Imágenes

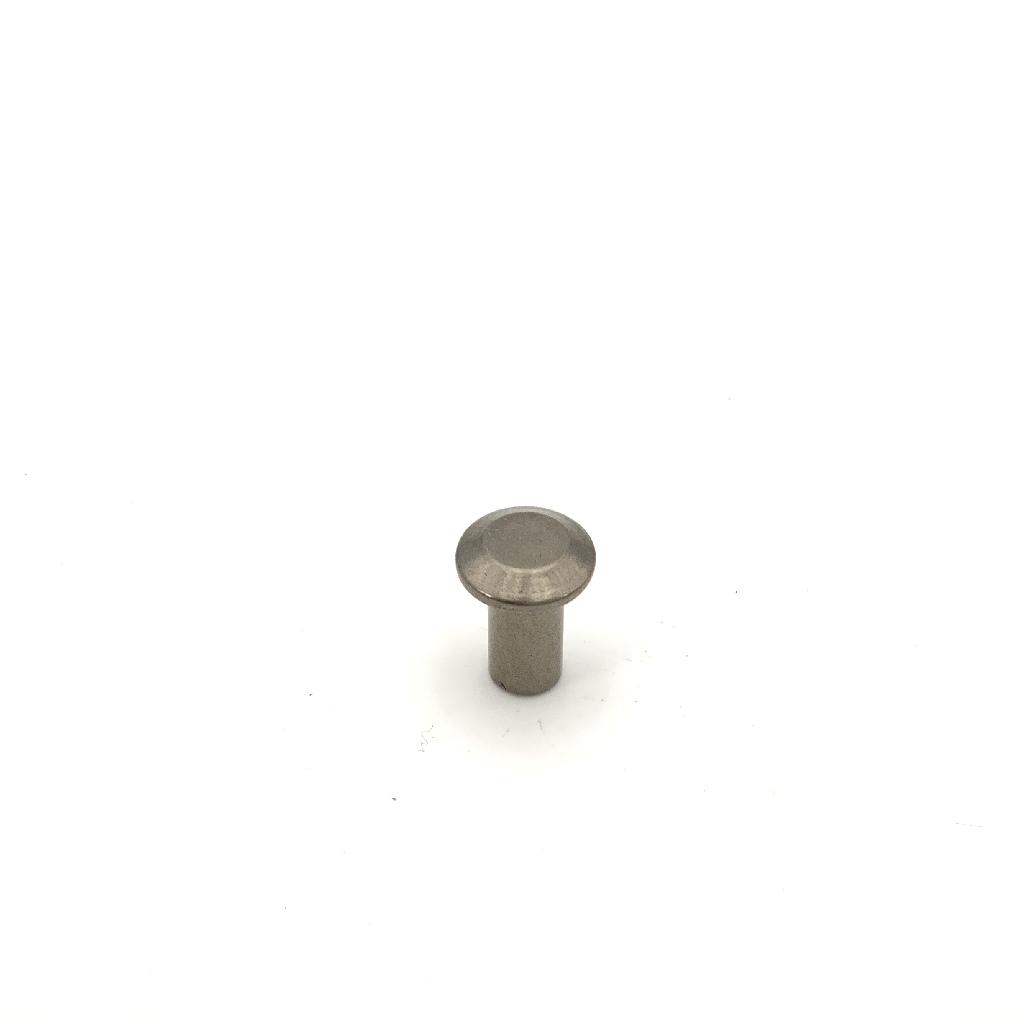

Imágenes de referencia de esta pieza
Imagen del número de acciones nacionales 5320-00-349-2650

El precio histórico de este producto está entre 10.88 and 14.688 USD. Dependiendo de la cantidad, disponibilidad, condición, plazo de entrega y posible interrupción de un artículo, no podemos garantizar el precio hasta que le proporcionemos un presupuesto actualizado.

Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
4002885
Desmilitarización:
No
Vigencia:
N/A
Unidad de medida:
100 EA
NIIN:
003492650
NSN
Número de acciones nacionales:
5320-00-349-2650 5320003492650
TXT
Descripción:
Tubular Rivet
INC
INC
Código de nombre del artículo:
00863
MRC:
The dimension,measured along a line parallel to the longitudinal axis,from the largest bearing surface of the fastener head to the extreme opposite end,or as specifically designated for other type fasteners.AASB
Fastener Length:
Between 0.490 inches and 0.510 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the head.AASK
Head Style:
Flat chamfer
MRC:
A measurement from the bottom to the top of the head,in distinction from depth.AASU
Head Height:
0.100 inches
MRC:
The length of a straight line which passes through the center of a hole,and terminates at the circumference.AAUB
Hole Diameter:
Between 0.155 inches and 0.165 inches
MRC:
The length of a straight line which passes through the center of the body of the shank and terminates at the circumference.AAZE
Shank Diameter:
Between 0.249 inches and 0.251 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the shank.AAZF
Shank Style:
Tubular
MRC:
None.AAZG
Head Major Diameter:
Between 0.435 inches and 0.445 inches
MRC:
A measurement between specified points of the hole,in distinction from height.AAZQ
Hole Depth:
Between 0.140 inches and 0.160 inches
MRC:
A measurement of the longest dimension of the grip,in distinction from width.ANEE
Grip Length:
0.350 inches
MRC:
The minimum load,applied perpendicularly to the longitudinal axis of an item,at which point the item will fracture when subjected to the standard shear test method.CQSX
Shear Strength:
80000 single pounds per square inch
MRC:
A combination of timed heating and cooling operations applied for the purpose of annealing or hardening the item.HEAT
Heat Treatment:
Solution heat treated
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel
