Número de pieza 3H2L4-30

Nonmetallic Hose
Descripción

Hose

Disponibilidad de stock  Códigos de condición del producto

Número de pieza 3h2l4-30 está en stock en las siguientes cantidades y condiciones.

  • NS: 386
  • NE: 23429
  • AR: 2
  • OH: 1
  • SV: 1

Nota: La disponibilidad de este artículo se actualizó por última vez 08/02/2024 y puede haber cambiado desde entonces. Solicite una cotización para conocer los precios y la disponibilidad actualizados.

Precios y disponibilidad

Envíe este formulario para conocer los precios actuales y la disponibilidad de esta NSN.
Número de pieza:
Cantidad:
Dirección de correo electrónico:
Teléfono:
Referencia:
Compañía:
Nombre:

No compartimos ni vendemos su información a nadie.
Privacidad | Letra chica

All major credit cards accepted as well as gov. p-cards

Imágenes

Imágenes de referencia de esta pieza

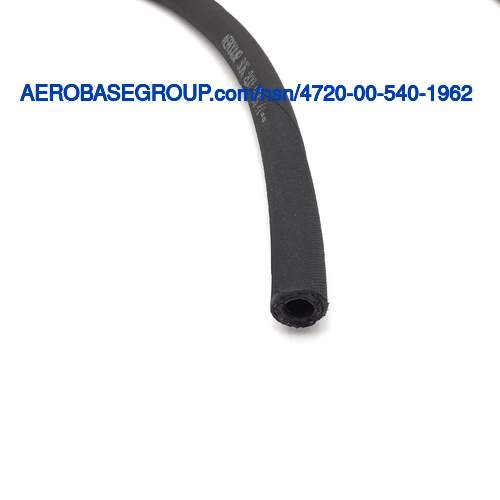

Imagen del número de acciones nacionales 4720-00-540-1962

El precio histórico de este producto está entre 5.2 and 7.02 USD. Dependiendo de la cantidad, disponibilidad, condición, plazo de entrega y posible interrupción de un artículo, no podemos garantizar el precio hasta que le proporcionemos un presupuesto actualizado.

Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
3h2l4-30
Desmilitarización:
No
Vigencia:
120 mo.
Unidad de medida:
# blk FT
NIIN:
005401962
NSN
Número de acciones nacionales:
4720-00-540-1962 4720005401962
TXT
Descripción:
Nonmetallic Hose
INC
INC
Código de nombre del artículo:
22670
MRC:
The style designation indicating the configuration that most nearly corresponds to the cross-sectional shape of the item.AAGR
Cross Sectional Shape:
Round
MRC:
The length of a straight line which passes through the center of a circular figure or body,and terminates at the inside circumference.AARX
Inside Diameter:
0.250 inches
MRC:
A value which expresses the degree of heat or cold as applied to the operation,or limitation of operation,of an item.ABJH
Tempurature Rating:
-65.0 degrees fahrenheit single response and 160.0 degrees fahrenheit single response
MRC:
The length of a straight line which passes through the center of a circular figure or body,and terminates at the outside circumference.ABKV
Outside Diameter:
0.469 inches
MRC:
The minimum inside bending radius formed without stressing or deformation of a flexible item.ACKH
Minimum Inside Bending Radius:
4.000 inches
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
Grumman A10 aircraft
MRC:
The minimum internal pressure rating,determined by destruction tests,at which the item can be expected to rupture.CQBD
Burst Test Pressure:
1250.0 pounds per square inch single response
MRC:
The material and formation identifying the structural characteristic/s/ of the item and location.CQCS
Layer Composition And Location:
1ST layer braided cotton cord ERR-100
MRC:
The material and formation identifying the structural characteristic/s/ of the item and location.CQCS
Layer Composition And Location:
Outer layer molded rubber synthetic ERR-100
MRC:
The maximum pressure at which the item is rated for operation.CQGM
Maximum Operating Pressure:
200.0 pounds per square inch single response
MRC:
A steady,uniform,internal,static pressure that the item must withstand without leakage,abnormal distortion,or damage.CRDW
Hydrostatic Test Pressure:
400.0 pounds per square inch single response
MRC:
The type of protection provided by the outer covering.CRJM
Outer Covering Environmental Protection:
Abrasion resistant and hydraulic solution resistant and oil resistant
MRC:
The ultimate maximum vacuum,expressed in terms of absolute pressure,that may be produced by or applied to an item.CRSM
Vacuum In Torr:
254.0
MRC:
The condition of the item with respect to the texture of the inner surface.CRWL
Inside Surface Condition:
Smooth
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Rubber synthetic tube
MRC:
The type of media for which the item is designed.MEDA
Media For Which Designed:
Fuel/oil hydrocarbon single response
MRC:
The document designator of the specification or standard which established the item of supply.ZZZK
Specification Data:
81349-MIL-H-5593 government specification
MRC:
The number,letter,or symbol that indicates the type,style,grade,class,and the like,of an item in a nonidentifying specification or standard.ZZZT
Specification Or Standard:
4 size
