Número de pieza 2L426Y-EU5-4C

Pin-rivet

Precios y disponibilidad

Envíe este formulario para conocer los precios actuales y la disponibilidad de esta NSN.
Número de pieza:
Cantidad:
Dirección de correo electrónico:
Teléfono:
Referencia:
Compañía:
Nombre:

No compartimos ni vendemos su información a nadie.
Privacidad | Letra chica

All major credit cards accepted as well as gov. p-cards

Imágenes

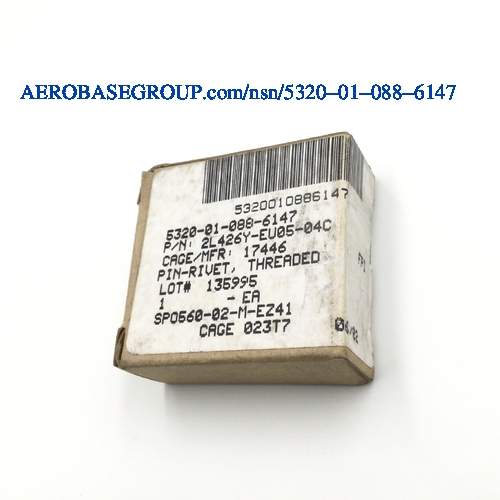

Imágenes de referencia de esta pieza
Imagen del número de acciones nacionales 5320-01-088-6147

El precio histórico de este producto está entre 8.86 and 11.961 USD. Dependiendo de la cantidad, disponibilidad, condición, plazo de entrega y posible interrupción de un artículo, no podemos garantizar el precio hasta que le proporcionemos un presupuesto actualizado.

Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
2l426y-eu5-4c
Desmilitarización:
No
Vigencia:
N/A
Unidad de medida:
1 EA
NIIN:
010886147

Información de la pieza
Color green on at least half of the pintail

NSN
Número de acciones nacionales:
5320-01-088-6147 5320010886147
TXT
Descripción:
Pin-rivet
INC
INC
Código de nombre del artículo:
67165
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the head.AASK
Head Style:
Flush countersunk
MRC:
The length of a straight line which passes through the center of the body of the shank and terminates at the circumference.AAZE
Shank Diameter:
Between 0.1635 inches and 0.1650 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the shank.AAZF
Shank Style:
Pin-rivet multiple grooved
MRC:
None.AAZG
Head Major Diameter:
Between 0.263 inches and 0.292 inches
MRC:
A measurement of the longest dimension of the grip,in distinction from width.ANEE
Grip Length:
Between 0.240 inches and 0.265 inches
MRC:
The included angle of the countersink.CRSQ
Countersink Angle:
Between 99.0 degrees and 101.0 degrees
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Iron alloy 660
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Ams 5737 assn standard single material response
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Cadmium and chromate
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
QQ-P-416, type 2, class 3 federal specification single treatment response
