Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Unidad de medida:
No qup EA
NSN
Número de acciones nacionales:
TXT
Descripción:

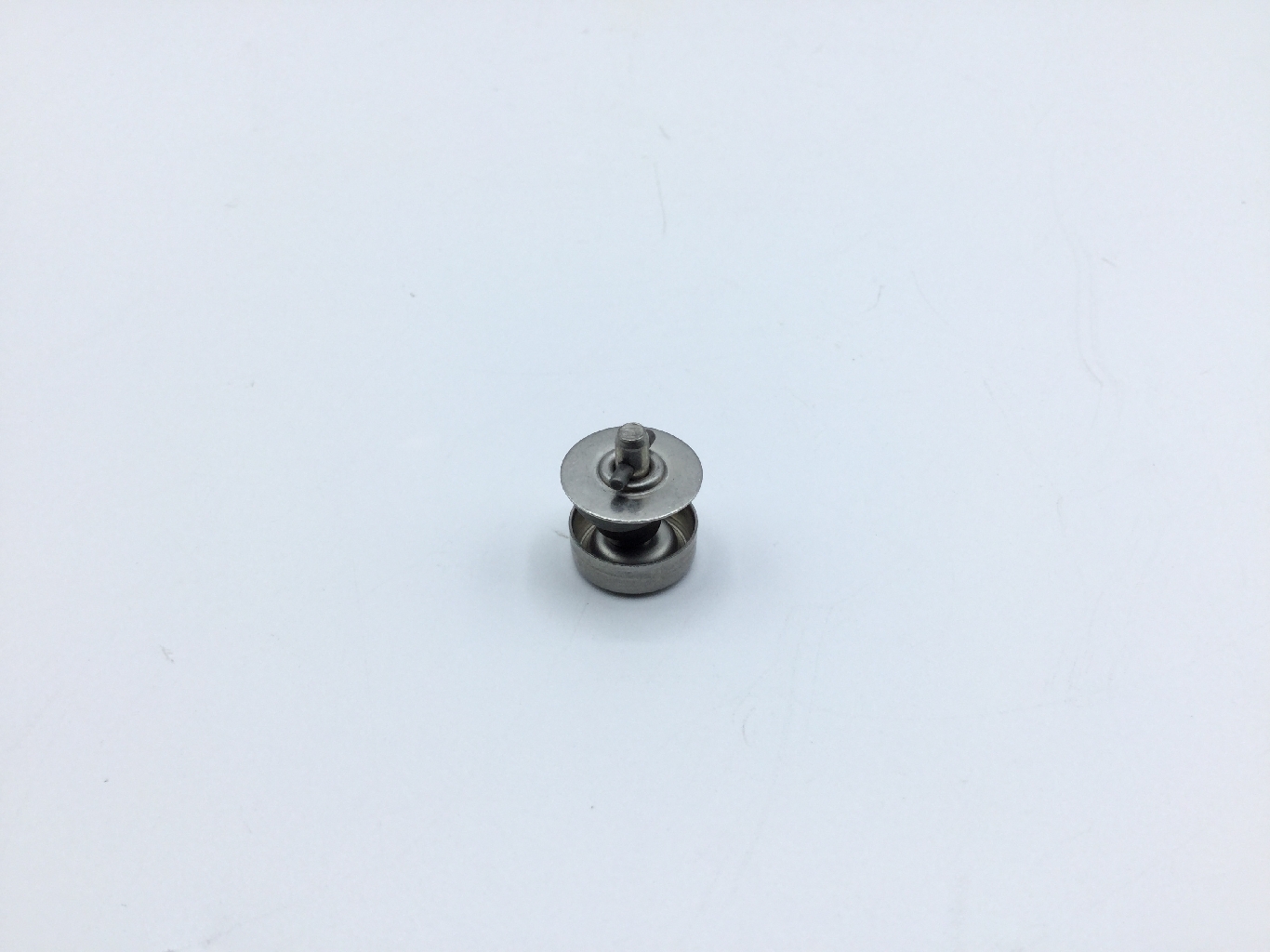

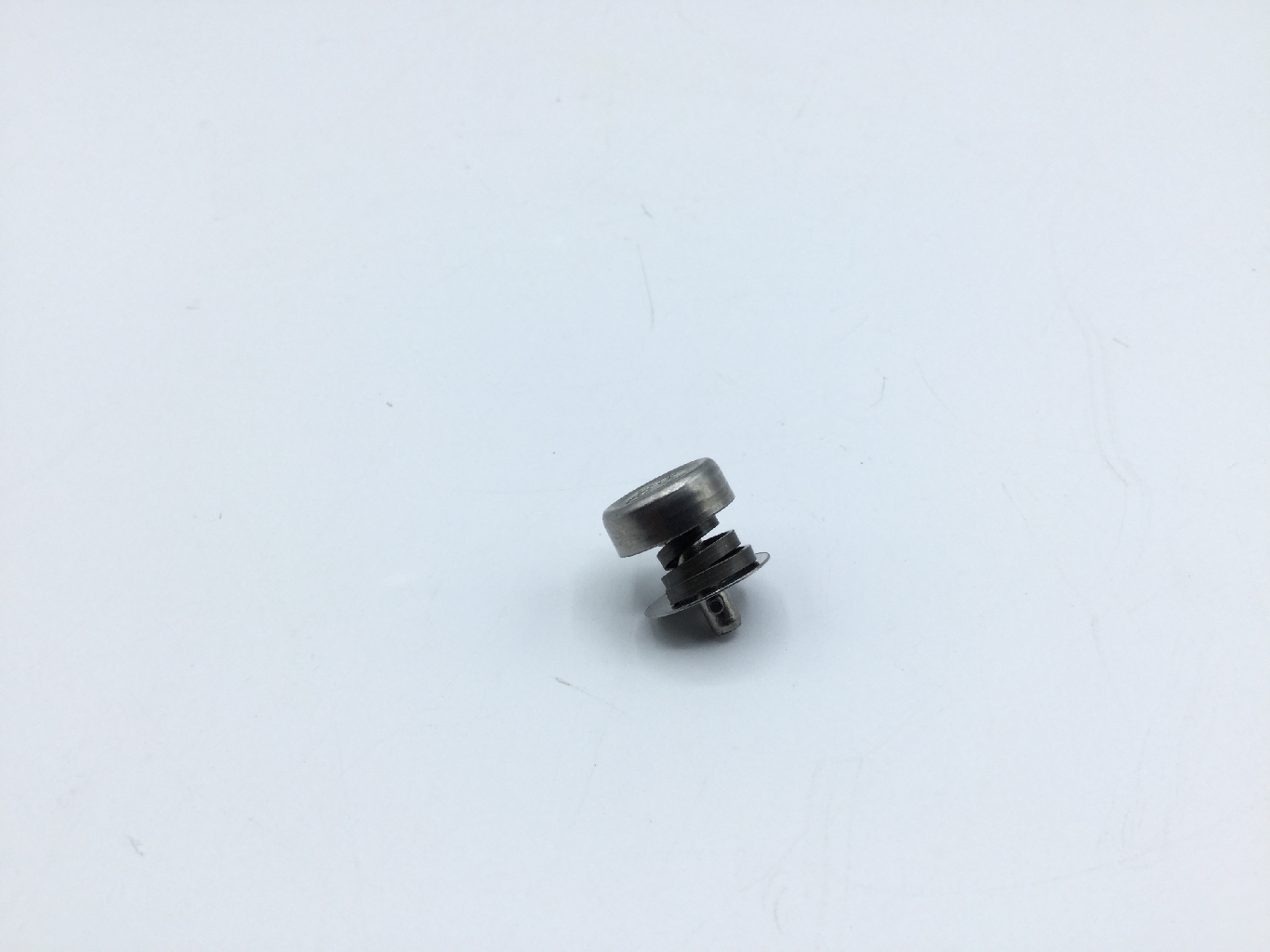

Turnlock Fastener Stud Assembly
Código de nombre del artículo:
18484
MRC:
The length of a straight line which passes through the center of a circular figure or body,and terminates at the circumference.ABMZ
Diameter:
Between 0.489 inches and 0.511 inches
MRC:
Indicates the type of device used to fasten the item.ADQB
Securing Device Type:
Washer
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the turnlock stud head.AGRD
Turnlock Stud Head Style:
Fillister
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the stud assembly.AGRE
Stud Assembly Style:
Stud assembly
Distance From Engaging Member To Largest Bearing Surface Of Head:
Between 0.370 inches and 0.380 inches
Eyelet Outside Diameter:
Between 0.519 inches and 0.531 inches
MRC:
The length of a straight line which passes through the center of a stud,and terminates at the circumference.AGRJ
Stud Diameter:
Between 0.305 inches and 0.315 inches
MRC:
The thickness of the material to be accommodated.AGSM
Material Accommodated Thickness:
Between 0.180 inches and 0.209 inches
MRC:
Indicates the type of drive for turning,rotating,or positioning the mechanism.AKCV
Drive Type:
Slotted
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 302 stud
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 302 pin
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 305 retainer
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 305 washer
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel ejector spring
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Ams 5673 assn standard single material response ejector spring
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
QQ-S-423 federal specification single material response pin
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
QQ-S-763 federal specification single material response stud
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
QQ-S-766 federal specification single material response retainer
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
QQ-S-766 federal specification single material response washer
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Passivate
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
QQ-P-35 federal specification single treatment response
