Número de pieza 271119-1

Tube To Boss Straight Adapter
Disponibilidad de stock  Códigos de condición del producto

Número de pieza 271119-1 está en stock en las siguientes cantidades y condiciones.

  • NS: 43
  • NE: 164

Nota: La disponibilidad de este artículo se actualizó por última vez 08/10/2023 y puede haber cambiado desde entonces. Solicite una cotización para conocer los precios y la disponibilidad actualizados.

Precios y disponibilidad

Envíe este formulario para conocer los precios actuales y la disponibilidad de esta NSN.
Número de pieza:
Cantidad:
Dirección de correo electrónico:
Teléfono:
Referencia:
Compañía:
Nombre:

No compartimos ni vendemos su información a nadie.
Privacidad | Letra chica

All major credit cards accepted as well as gov. p-cards

Imágenes

Imágenes de referencia de esta pieza

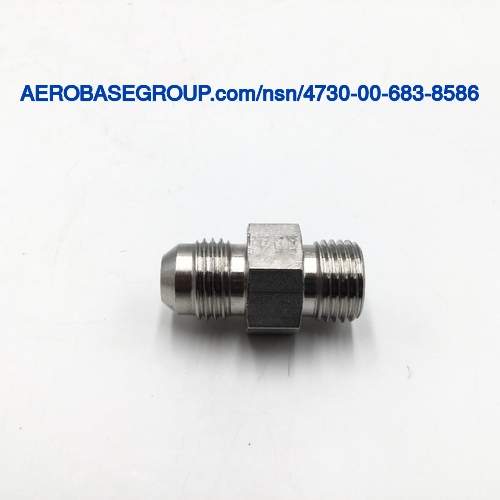

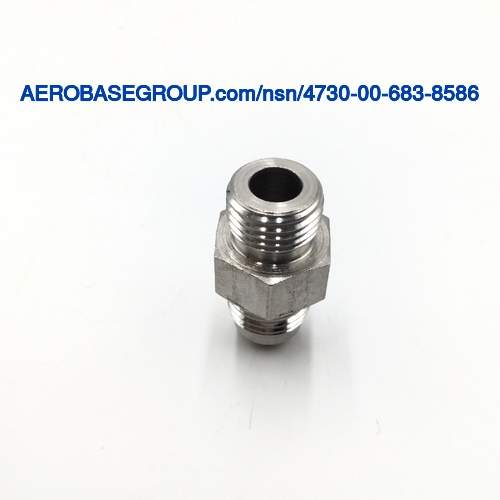

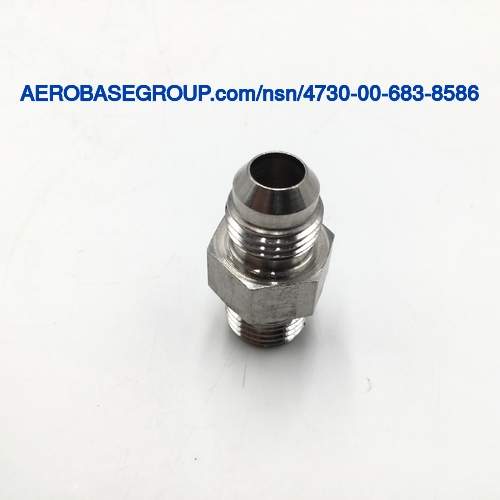

Imagen del número de acciones nacionales 4730-00-683-8586 Imagen del número de acciones nacionales 4730-00-683-8586 Imagen del número de acciones nacionales 4730-00-683-8586 Imagen del número de acciones nacionales 4730-00-683-8586

El precio histórico de este producto está entre 10.28 and 13.878 USD. Dependiendo de la cantidad, disponibilidad, condición, plazo de entrega y posible interrupción de un artículo, no podemos garantizar el precio hasta que le proporcionemos un presupuesto actualizado.

Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
271119-1
Desmilitarización:
No
Vigencia:
N/A
Unidad de medida:
1 EA
NIIN:
006838586
NSN
Número de acciones nacionales:
4730-00-683-8586 4730006838586
TXT
Descripción:
Tube To Boss Straight Adapter
INC
INC
Código de nombre del artículo:
22675
MRC:
A numeric-alpha designator indicating the pitch diameter tolerance and an external or internal thread.AAJD
Thread Class:
2A all ends
MRC:
The maximum temperature at which the item is rated to operate for an extended period of time.AEHZ
Maximum Operating Temp:
107.0 degrees celsius single response
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
Eyn sturgeon class ssn (637)
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the connection.AHNC
Connection Style:
External seat for gasket seal (boss) 2ND end
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the connection.AHNC
Connection Style:
Flared (tube) 1ST end
MRC:
Indicates the type of connection/s/.AWLS
Connection Type:
Threaded external boss 2ND end
MRC:
Indicates the type of connection/s/.AWLS
Connection Type:
Threaded external tube 1ST end
MRC:
The maximum pressure at which the item is rated for operation.CQGM
Maximum Operating Pressure:
3000.0 pounds per square inch single response
MRC:
A designation that is used for the purpose of general identification of the thread.CQJX
Thread Size:
0.562 inches all ends
MRC:
The angle of the end surface upon which the mated surface seats.CQRB
Seat Angle:
37.0 degrees 1ST end
MRC:
The nominal length of a straight line which passes through the center of the accommodated tube,and terminates at the outside circumference.CWFD
Outside Diameter Tube Accommodated:
0.375 inches 1ST end
MRC:
The nominal dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.CWFR
Nominallength:
1.297 inches
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Stainless steel
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
66-316 federal standard single material response
MRC:
The type of media for which the item is designed.MEDA
Media For Which Designed:
Hydraulic fluid single response
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Passivate
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
QQ-P-35, type 1 or 2 federal specification single treatment response
MRC:
A designation distinguishing one group of thread diameter-pitch combinations from another by the number of threads per measurement scale for a specific diameter.THSD
Thread Series Designator:
Unf all ends
MRC:
The name and number of those parts furnished with the item of supply that have not been specified elsewhere.TMQY
Furnished Items And Quantity:
1 tube coupling nut w/sleeve and 1 preformed packing
MRC:
The document designator of the specification or standard which established the item of supply.ZZZK
Specification Data:
96906-MS51525 government standard and 81343-J514 professional/industrial association standard
MRC:
The number,letter,or symbol that indicates the type,style,grade,class,and the like,of an item in a nonidentifying specification or standard.ZZZT
Specification Or Standard:
3B figure
