Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
NSN
Número de acciones nacionales:
TXT
Descripción:

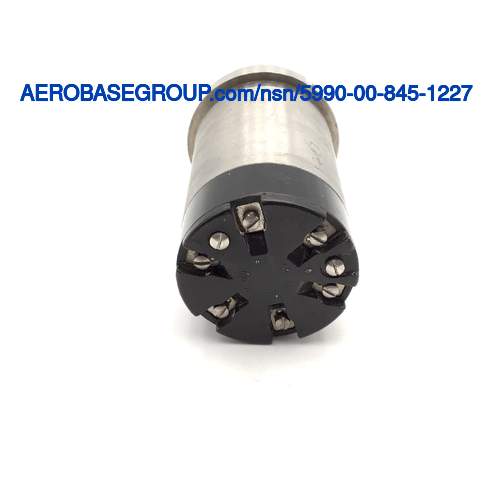

Differential Transmitter Synchro
Código de nombre del artículo:
02071
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABHP
Overall Length:
3.8300 inches
MRC:
The length of a straight line which passes through the center of a shaft,and terminates at the circumference.ABWV
Shaft Diameter:
0.2405 inches single shaft
MRC:
A measurement of the longest dimension of the shaft,in distinction from width.ABXF
Shaft Length:
0.6760 inches single shaft
MRC:
An alpha and/or numeric designation indicating the size by which the body is identified.AJSL
Body Size:
23
MRC:
The value of the primary excitation voltage for which the stator is rated,expressed in volts.AJSN
Stator Input Voltage Rating In Volts:
90.0
MRC:
The value of the primary excitation current for which the stator is rated,with rotor /secondary/ circuit open.AJSP
Stator Input Current Rating:
270.0 milliamperes
MRC:
The value of the primary /electrical/ excitation power for which the stator is rated.AJSQ
Stator Input Electrical Power Rating:
2.0 watts
MRC:
The cycles per second /hertz/ of the alternating current.AJSS
Frequency In Hertz:
400.0
MRC:
The number of individual teeth on the splined portion of the shaft.AJVM
Spline Tooth Quantity:
22 single shaft
MRC:
The number of teeth the splined shaft has per inch of pitch diameter.AJXA
Spline Tooth Diametral Pitch:
96 single shaft
MRC:
Indicates the type of shaft included on the item.CRSJ
Shaft Type:
Spline single shaft
MRC:
The ratio of the output voltage to the input voltage at maximum coupling.CSJY
Transformation Ratio:
1.154 rotor to stator
MRC:
Indicates the type and number of terminals for providing electrical connection.TTQY
Terminal Type And Quantity:
6 screw
