Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Desmilitarización:
Yes - DEMIL/MLI
NSN
Número de acciones nacionales:
TXT
Descripción:

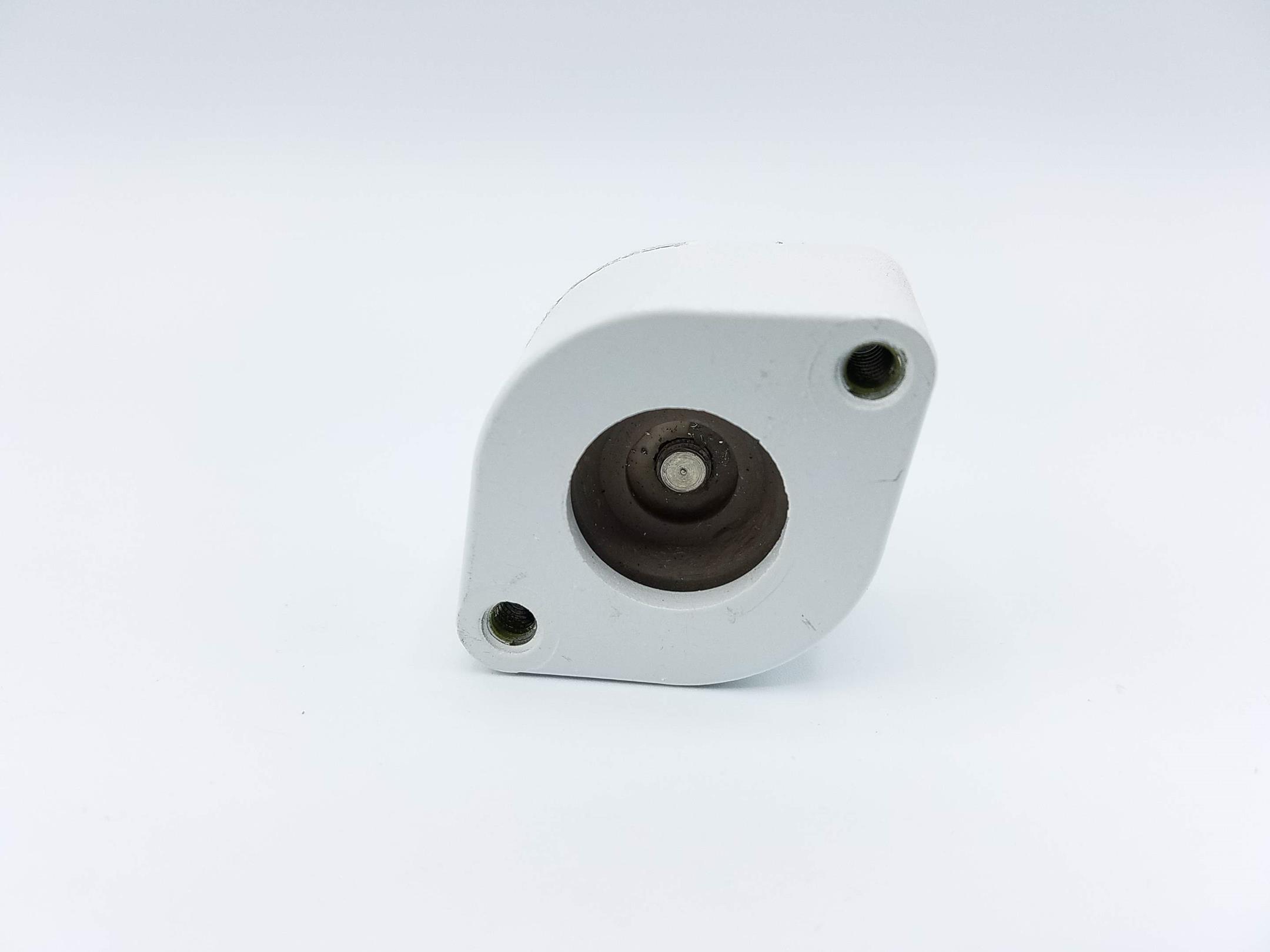

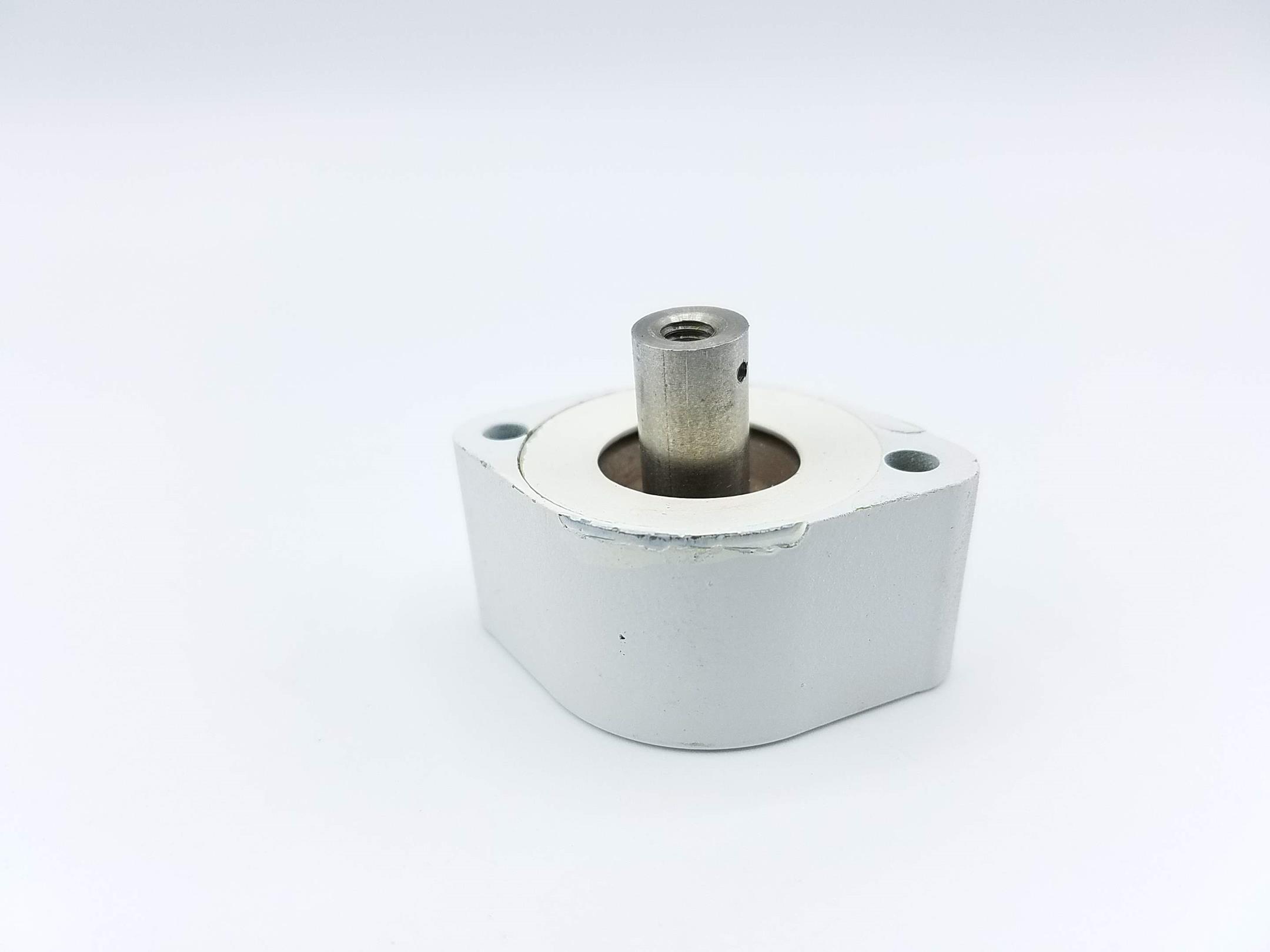

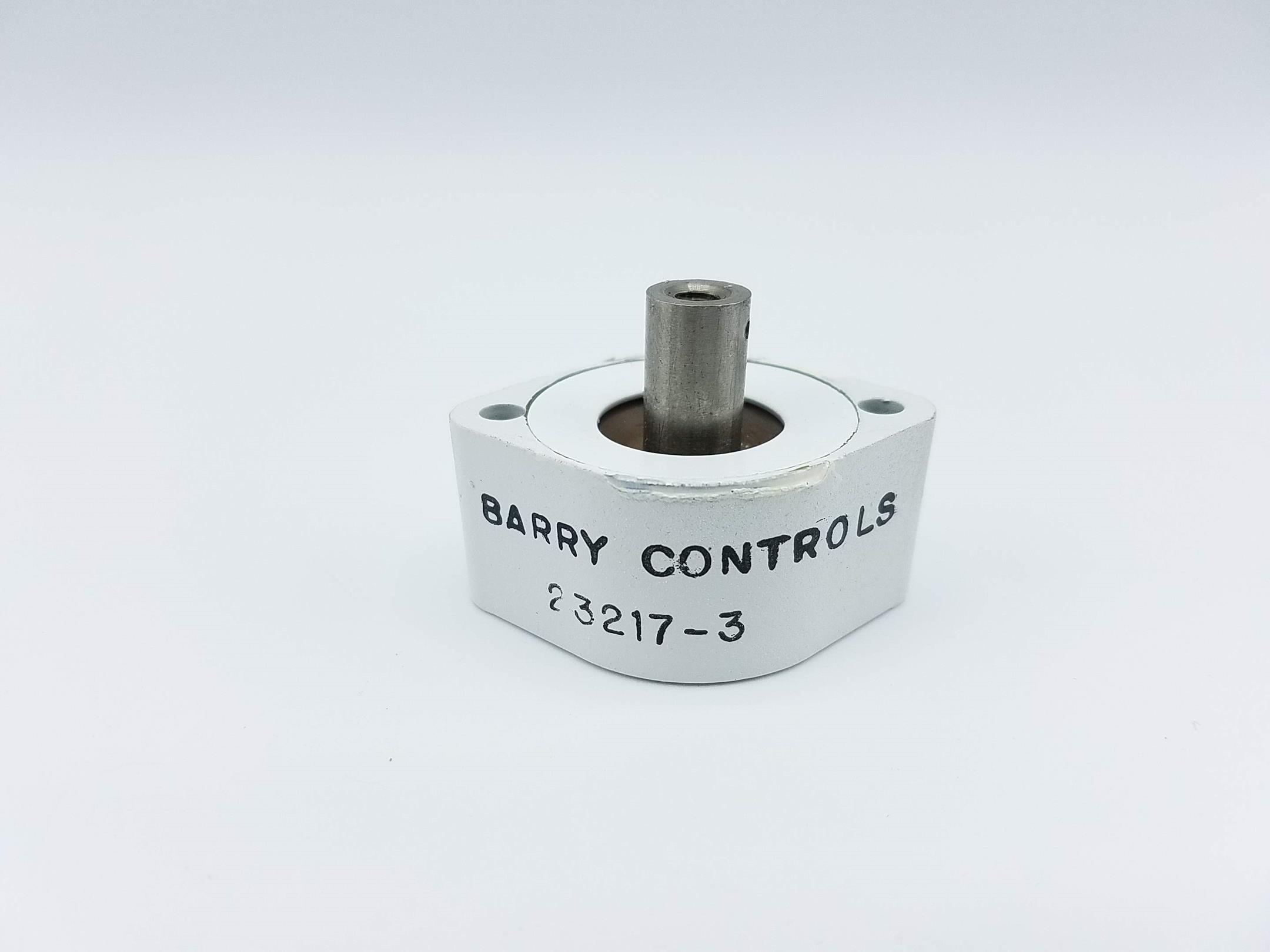

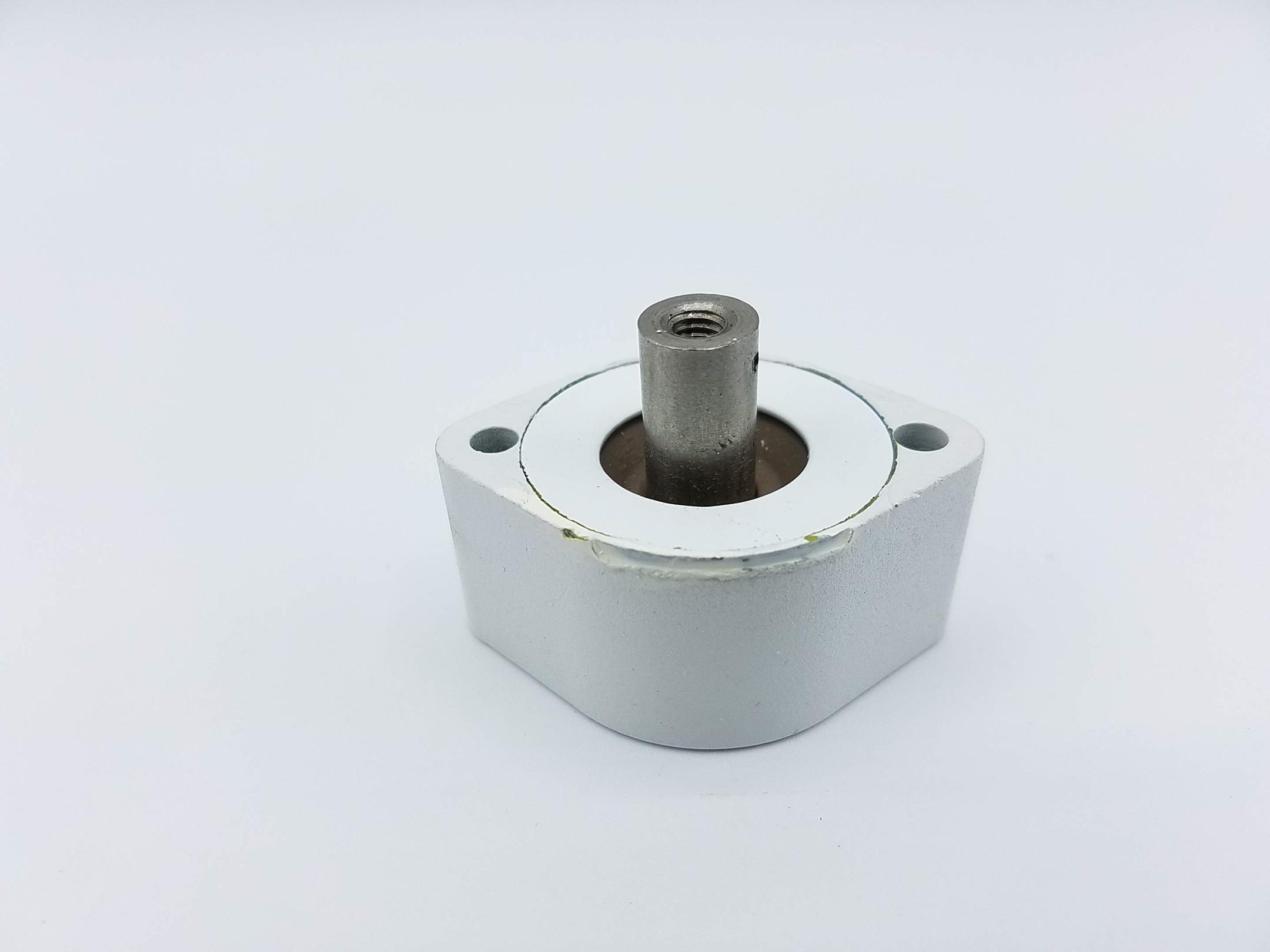

Weapon System Resilient Mount
Código de nombre del artículo:
53589
MRC:
The distance between the centerline of the mounting holes.AFQM
Distance Between Mounting Hole Centers:
1.406 inches
MRC:
A measurement of the longest dimension of a flange,in distinction from width.AFQN
Flange Length:
1.810 inches
MRC:
A measurement taken at right angles to the length of a flange,in distinction from thickness.AGFF
Flange Width:
1.330 inches
MRC:
A measurement of the longest dimension of the stud,in distinction from width.AGXF
Stud Length:
0.360 inches all threaded stud
Flange Mounting Hole Diameter:
0.640 inches
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Aluminum alloy housing or steel housing
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Stainless steel core
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Passivate core
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
Cage 81755, FPS-3001 mfr ref single treatment response core
