Número de pieza:
20p103-7
NSN
Número de acciones nacionales:
TXT
Descripción:

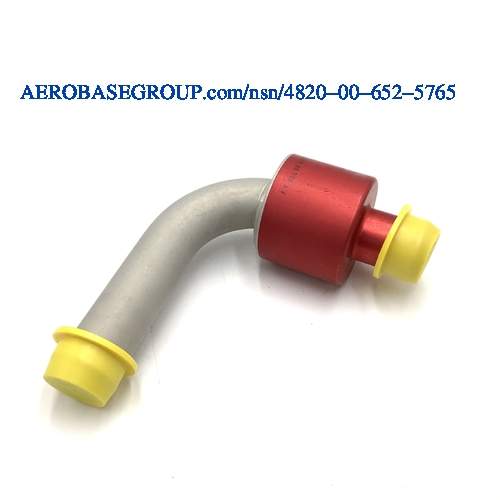

Safety Relief Valve
Código de nombre del artículo:
05488
MRC:
The part that controls the flow through the item.ADQU
Flow Control Device:
Piston
MRC:
The maximum temperature at which the item is rated to operate for an extended period of time.AEHZ
Maximum Operating Temp:
160.0 degrees fahrenheit single response
MRC:
The means used to control the operation of the valve.AQLR
Valve Operation Method:
Automatic
MRC:
Indicates the type of connection/s/.AWLS
Connection Type:
Unthreaded external hose 2ND end
MRC:
Indicates the type of connection/s/.AWLS
Connection Type:
Unthreaded external tube 1ST end
MRC:
The maximum pressure at which the item is rated for operation.CQGM
Maximum Operating Pressure:
50.0 pounds per square inch single response
MRC:
The nominal length of a straight line which passes through the center of the accommodated tube,and terminates at the outside circumference.CWFD
Outside Diameter Tube Accommodated:
1.250 inches 1ST end
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Aluminum alloy 2024 flow control device
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Aluminum alloy 2017 body and aluminum alloy 2024 body
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
QQ-A-225/6, ALLOY2024, T351 federal specification single material response flow control device
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
QQ-A-225/5, ALLOY2017 federal specification 1ST material response body and QQ-A-225/6, ALLOY2024, T351 federal specification 2ND material response body
MRC:
The type of media for which the item is designed.MEDA
Media For Which Designed:
Fuel/oil hydrocarbon single response
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Anodize
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
MIL-A-8625, type 1 military specification single treatment response
