Número de pieza 206-010-765-1

Self-aligning Plain Bearing
Disponibilidad de stock  Códigos de condición del producto

Número de pieza 206-010-765-1 está en stock en las siguientes cantidades y condiciones.

  • NS: 4
  • NE: 1

Nota: La disponibilidad de este artículo se actualizó por última vez 04/05/2025 y puede haber cambiado desde entonces. Solicite una cotización para conocer los precios y la disponibilidad actualizados.

Precios y disponibilidad

Envíe este formulario para conocer los precios actuales y la disponibilidad de esta NSN.
Número de pieza:
Cantidad:
Dirección de correo electrónico:
Teléfono:
Referencia:
Compañía:
Nombre:

No compartimos ni vendemos su información a nadie.
Privacidad | Letra chica

All major credit cards accepted as well as gov. p-cards

Imágenes

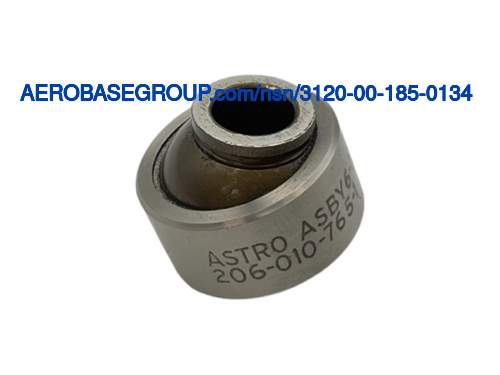

Imágenes de referencia de esta pieza
Imagen del número de acciones nacionales 3120-00-185-0134

El precio histórico de este producto está entre 204.12 and 275.562 USD. Dependiendo de la cantidad, disponibilidad, condición, plazo de entrega y posible interrupción de un artículo, no podemos garantizar el precio hasta que le proporcionemos un presupuesto actualizado.

Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
206-010-765-1
Desmilitarización:
No
Vigencia:
N/A
Unidad de medida:
1 EA
NIIN:
001850134

Información de la pieza
Inner race member coated with polytetrafluoroethylene sealer 20 degrees min misalignment

NSN
Número de acciones nacionales:
3120-00-185-0134 3120001850134
TXT
Descripción:
Self-aligning Plain Bearing
INC
INC
Código de nombre del artículo:
13208
MRC:
The length of a straight line which passes through the center of a circular bore,and terminates at the circumference.ABXV
Bore Diameter:
Between 0.3745 inches and 0.3750 inches
MRC:
None.AGGF
Outer Member Outside Diameter:
Between 0.9995 inches and 1.0000 inches
MRC:
None.AGGH
Outer Member Width:
Between 0.5000 inches and 0.5100 inches
MRC:
None.AGGJ
Inner Member Width:
Between 0.9330 inches and 0.9350 inches
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Aluminum alloy 7075 inner member
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Plastic race liner
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel outer race member
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
97499206-010-765-1 mfr ref single material response inner member
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
97499206-010-765-1 mfr ref single material response race liner
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Ams 5643 military standard single material response outer race member
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Anodize inner member
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
97499206-010-765-1 mfr ref all treatment responses inner member
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
With insert and/or liner
