Número de pieza 205217-1003-06

Hexagon Self-locking Nut
Descripción

Nut,self-locking,hex

Disponibilidad de stock  Códigos de condición del producto

Número de pieza 205217-1003-06 está en stock en las siguientes cantidades y condiciones.

  • NE: 12290
  • NS: 396
  • SV: 1
  • AR: 1

Nota: La disponibilidad de este artículo se actualizó por última vez 04/25/2025 y puede haber cambiado desde entonces. Solicite una cotización para conocer los precios y la disponibilidad actualizados.

Precios y disponibilidad

Envíe este formulario para conocer los precios actuales y la disponibilidad de esta NSN.
Número de pieza:
Cantidad:
Dirección de correo electrónico:
Teléfono:
Referencia:
Compañía:
Nombre:

No compartimos ni vendemos su información a nadie.
Privacidad | Letra chica

All major credit cards accepted as well as gov. p-cards

Imágenes

Imágenes de referencia de esta pieza

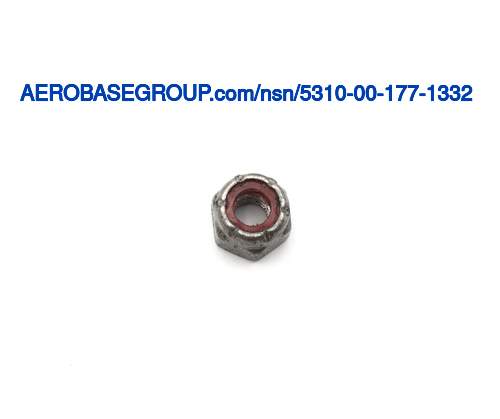

Imagen del número de acciones nacionales 5310-00-177-1332

El precio histórico de este producto está entre 0.56 and 0.756 USD. Dependiendo de la cantidad, disponibilidad, condición, plazo de entrega y posible interrupción de un artículo, no podemos garantizar el precio hasta que le proporcionemos un presupuesto actualizado.

Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
205217-1003-06
Desmilitarización:
No
Vigencia:
N/A
Unidad de medida:
100 EA
NIIN:
001771332
NSN
Número de acciones nacionales:
5310-00-177-1332 5310001771332
TXT
Descripción:
Hexagon Self-locking Nut
INC
INC
Código de nombre del artículo:
05277
MRC:
A numeric-alpha designator indicating the pitch diameter tolerance and an external or internal thread.AAJD
Thread Class:
3B
MRC:
The direction of the thread when viewed axially. a right-hand thread winds in a clockwise direction while a left-hand thread winds in a counterclockwise direction.AAJF
Thread Direction:
Right-hand
MRC:
An element inserted into the fastener,or a design feature,that enables the fastener to effectively resist vibration and rotation.AAUM
Locking Feature:
Prevailing torque with nonmetallic insert
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the nut.ACTA
Nut Style:
Hexagon
MRC:
None.ADEA
Nut Height:
Between 0.133 inches and 0.157 inches
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
S-3 aircraft
MRC:
The shortest straight line between flats,perpendicular to the height.ASDB
Width Across Flats:
Between 0.243 inches and 0.251 inches
MRC:
A value which expresses the degree of heat or cold as applied to the operation,or limitation of operation,of an item.AZKQ
Tempurature Rating:
250.0 degrees fahrenheit
MRC:
A designation indicating the diameter-pitch combination and the number of threads per measurement scale applied to a series of diameters.BZRR
Thread Series:
Unc
MRC:
The number of threads on the item per linear inch measured on a line parallel to the thread axis.CMLP
Thready Qty Per Inch (tpi):
40
MRC:
A designation that is used for the purpose of general identification of the thread.CQJX
Thread Size:
0.112 inches
MRC:
The included angle of the countersink.CRSQ
Countersink Angle:
88.0 degrees nut
MRC:
Indicates the type of bearing surface.CRTM
Bearing Surface Type:
Chamfered
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Plastic polyhexamethylene amide locking insert
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 302 nut or steel comp 303 nut or steel comp 304 nut or steel comp 305 nut or steel comp 316 nut or steel comp 317 nut or steel comp 347 nut
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Astm D4066 assn standard single material response locking insert
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Passivate nut
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
QQ-P-35 federal specification single treatment response nut
