Número de pieza 2041-3-2

Blind Rivet
Descripción

Blind rivet

Disponibilidad de stock  Códigos de condición del producto

Número de pieza 2041-3-2 está en stock en las siguientes cantidades y condiciones.

  • NE: 8197
  • NS: 284
  • SV: 7

Nota: La disponibilidad de este artículo se actualizó por última vez 05/15/2025 y puede haber cambiado desde entonces. Solicite una cotización para conocer los precios y la disponibilidad actualizados.

Precios y disponibilidad

Envíe este formulario para conocer los precios actuales y la disponibilidad de esta NSN.
Número de pieza:
Cantidad:
Dirección de correo electrónico:
Teléfono:
Referencia:
Compañía:
Nombre:

No compartimos ni vendemos su información a nadie.
Privacidad | Letra chica

All major credit cards accepted as well as gov. p-cards

Imágenes

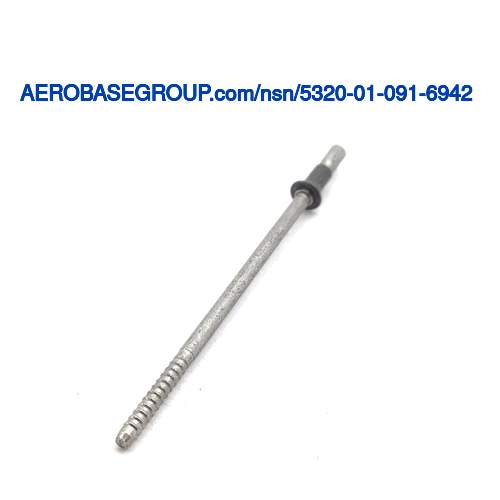

Imágenes de referencia de esta pieza
Imagen del número de acciones nacionales 5320-01-091-6942

El precio histórico de este producto está entre 2.82 and 3.807 USD. Dependiendo de la cantidad, disponibilidad, condición, plazo de entrega y posible interrupción de un artículo, no podemos garantizar el precio hasta que le proporcionemos un presupuesto actualizado.

Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
2041-3-2
Desmilitarización:
No
Vigencia:
N/A
Unidad de medida:
100 EA
NIIN:
010916942
NSN
Número de acciones nacionales:
5320-01-091-6942 5320010916942
TXT
Descripción:
Blind Rivet
INC
INC
Código de nombre del artículo:
00864
MRC:
The dimension,measured along a line parallel to the longitudinal axis,from the largest bearing surface of the fastener head to the extreme opposite end,or as specifically designated for other type fasteners.AASB
Fastener Length:
Between 0.209 inches and 0.229 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the head.AASK
Head Style:
Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)
MRC:
The length of a straight line which passes through the center of the body of the shank and terminates at the circumference.AAZE
Shank Diameter:
Between 0.093 inches and 0.097 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the shank.AAZF
Shank Style:
Self-plugging mechanically locked stem
MRC:
None.AAZG
Head Major Diameter:
0.183 inches
MRC:
The device by which the item is expanded and set.ABAF
Expansion Device:
Serrated stem-type w
MRC:
A substance designed to provide a reduction of friction between the two surfaces in contact.ABAJ
Lubrication:
Dry film
MRC:
A measurement of the longest dimension of the grip,in distinction from width.ANEE
Grip Length:
Between 0.063 inches and 0.125 inches
MRC:
The included angle of the countersink.CRSQ
Countersink Angle:
Between 99.0 degrees and 101.0 degrees
MRC:
A combination of timed heating and cooling operations applied for the purpose of annealing or hardening the item.HEAT
Heat Treatment:
Annealed stem
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Nickel alloy R-405 locking ring or nickel alloy 400 locking ring
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Iron alloy 660 sleeve
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Iron alloy 660 stem
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Ams 5732 assn standard single material response sleeve
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Ams 5732 assn standard single material response stem
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Q-N-281 federal specification 13TH material response locking ring
