Número de pieza 17P8E2002-507

Angle Bracket
Disponibilidad de stock  Códigos de condición del producto

Número de pieza 17p8e2002-507 está en stock en las siguientes cantidades y condiciones.

  • NS: 2
  • NE: 1

Nota: La disponibilidad de este artículo se actualizó por última vez 04/13/2022 y puede haber cambiado desde entonces. Solicite una cotización para conocer los precios y la disponibilidad actualizados.

Precios y disponibilidad

Envíe este formulario para conocer los precios actuales y la disponibilidad de esta NSN.
Número de pieza:
Cantidad:
Dirección de correo electrónico:
Teléfono:
Referencia:
Compañía:
Nombre:

No compartimos ni vendemos su información a nadie.
Privacidad | Letra chica

All major credit cards accepted as well as gov. p-cards

Imágenes

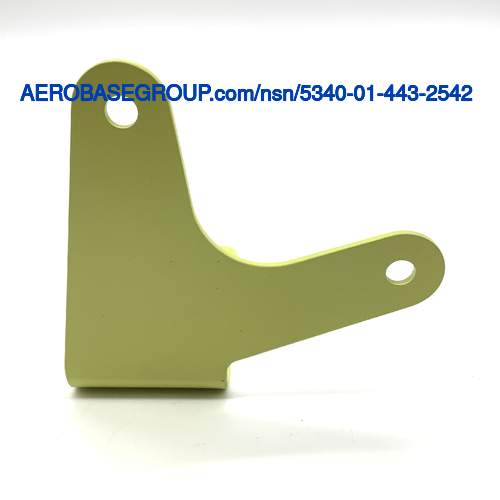

Imágenes de referencia de esta pieza
Imagen del número de acciones nacionales  5340-01-443-2542

El precio histórico de este producto está entre 162.4 and 219.24 USD. Dependiendo de la cantidad, disponibilidad, condición, plazo de entrega y posible interrupción de un artículo, no podemos garantizar el precio hasta que le proporcionemos un presupuesto actualizado.

Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
17p8e2002-507
Desmilitarización:
No
Vigencia:
N/A
Unidad de medida:
1 EA
NIIN:
014432542

Información de la pieza
Orig dwg name-support, electrical

NSN
Número de acciones nacionales:
5340-01-443-2542 5340014432542
TXT
Descripción:
Angle Bracket
INC
INC
Código de nombre del artículo:
16900
MRC:
Indicates the type of holes provided in the item to facilitate mounting to another item.ACHY
Mounting Hole Type:
Plain
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
C-17
MRC:
None.AHLK
First Leg Hole Diameter:
Between 0.220 inches and 0.230 inches
MRC:
None.AHLN
Second Leg Hole Diameter:
Between 0.280 inches and 0.287 inches
MRC:
None.AHLP
Second Leg Distance Between Hole Centers Along Width:
3.110 inches
MRC:
None.AHQN
First Leg Width:
1.800 inches
MRC:
None.AHQP
First Leg Corner Radius:
0.280 inches
MRC:
None.AHQW
First Leg Distance Between Lower Hole Centers Along Width:
0.850 inches
MRC:
None.AHQX
First Leg Distance Between Hole Centers Along Length:
2.710 inches
MRC:
None.AHQY
First Leg Distance Between First And Second Hole Centers Along Width:
0.100 inches
MRC:
None.AHRA
First Leg Distance From Edge To Hole Center Along Width:
0.500 inches
MRC:
None.AHRB
First Leg Distance From Edge To Hole Center Along Length:
0.650 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the first leg.AJZU
First Leg Style:
Corner radius
MRC:
The style designation indicating the configuration that most nearly corresponds to the arrangement of the first leg holes.AKAU
First Leg Hole Arrangement Style:
Three holes
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the second leg.AKBU
Second Leg Style:
Cut out
MRC:
The style designation indicating the configuration that most nearly corresponds to the arrangement of the second leg holes.AKCU
Second Leg Hole Arrangement Style:
Two holes
MRC:
An indication of whether or not the second leg is identical to the first leg.CSSP
Second Leg Relationship To First Leg:
Not identical
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Angle
