Número de pieza 17-615-00-002

Solid Rivet
Descripción

Rivet

Precios y disponibilidad

Envíe este formulario para conocer los precios actuales y la disponibilidad de esta NSN.
Número de pieza:
Cantidad:
Dirección de correo electrónico:
Teléfono:
Referencia:
Compañía:
Nombre:

No compartimos ni vendemos su información a nadie.
Privacidad | Letra chica

All major credit cards accepted as well as gov. p-cards

Imágenes

Imágenes de referencia de esta pieza

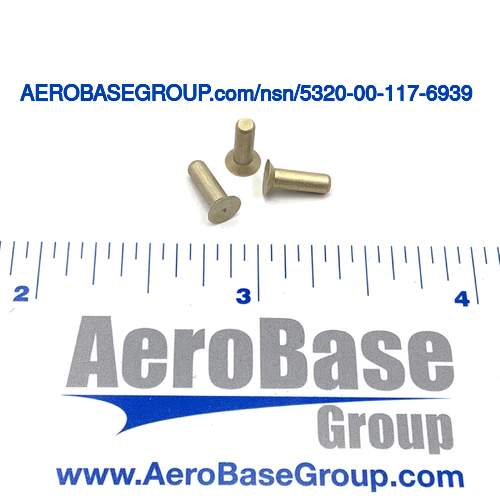

Imagen del número de acciones nacionales 5320-00-117-6939

El precio histórico de este producto está entre 44.94 and 60.669 USD. Dependiendo de la cantidad, disponibilidad, condición, plazo de entrega y posible interrupción de un artículo, no podemos garantizar el precio hasta que le proporcionemos un presupuesto actualizado.

Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
17-615-00-002
Desmilitarización:
No
Vigencia:
N/A
Unidad de medida:
1 LB
NIIN:
001176939
NSN
Número de acciones nacionales:
5320-00-117-6939 5320001176939
TXT
Descripción:
Solid Rivet
INC
INC
Código de nombre del artículo:
00861
MRC:
The dimension,measured along a line parallel to the longitudinal axis,from the largest bearing surface of the fastener head to the extreme opposite end,or as specifically designated for other type fasteners.AASB
Fastener Length:
Between 0.302 inches and 0.322 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the head.AASK
Head Style:
Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)
MRC:
The length of a straight line which passes through the center of the body of the shank and terminates at the circumference.AAZE
Shank Diameter:
Between 0.093 inches and 0.097 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the shank.AAZF
Shank Style:
Straight w/radius chamfered tip
MRC:
None.AAZG
Head Major Diameter:
Between 0.175 inches and 0.183 inches
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
W/s: teammate AN/TRQ-32; radar set AN/TPN-18; airborne mobile dir air spt ctl (2ID), (02M JUL83)(AN/UYQ-3A); aircraft (AC-130H, MC-130H, EC-130E, HC-130); communications terminal satellite AN/GSC-3 (V)1; traffic jam AN/TLQ-17A; aircraft thunderbolt ii A-10; suppoort equipment B-52 aircraft support equipment B-1 aircraft missile advanced medium range air-to-air (amraam) /AIM120A
MRC:
The included angle of the countersink.CRSQ
Countersink Angle:
Between 99.5 degrees and 100.5 degrees
MRC:
A combination of timed heating and cooling operations applied for the purpose of annealing or hardening the item.HEAT
Heat Treatment:
T-4 solution heat treated
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Aluminum alloy 2117
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
QQ-A-430 federal specification single material response
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Anodize or chromate
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
MIL-A-8625 military specification 1ST treatment response or MIL-C-5541 military specification 2ND treatment response
