Número de pieza 16933-100-3

Pipe Flange
Disponibilidad de stock  Códigos de condición del producto

Número de pieza 16933-100-3 está en stock en las siguientes cantidades y condiciones.

  • NE: 41
  • NS: 3

Nota: La disponibilidad de este artículo se actualizó por última vez 10/19/2024 y puede haber cambiado desde entonces. Solicite una cotización para conocer los precios y la disponibilidad actualizados.

Precios y disponibilidad

Envíe este formulario para conocer los precios actuales y la disponibilidad de esta NSN.
Número de pieza:
Cantidad:
Dirección de correo electrónico:
Teléfono:
Referencia:
Compañía:
Nombre:

No compartimos ni vendemos su información a nadie.
Privacidad | Letra chica

All major credit cards accepted as well as gov. p-cards

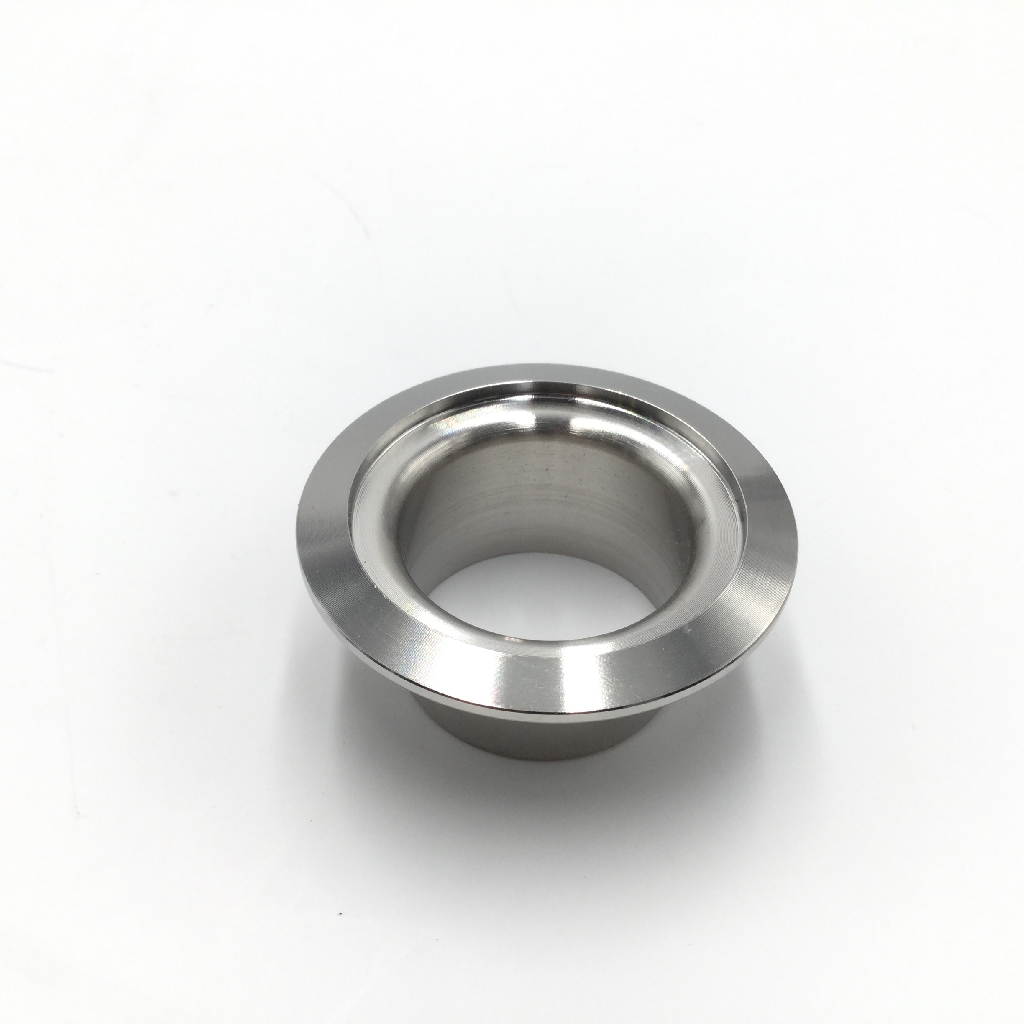

Imágenes

Imágenes de referencia de esta pieza
Imagen del número de acciones nacionales  4730-00-620-7344 Imagen del número de acciones nacionales  4730-00-620-7344

El precio histórico de este producto está entre 178.5 and 240.975 USD. Dependiendo de la cantidad, disponibilidad, condición, plazo de entrega y posible interrupción de un artículo, no podemos garantizar el precio hasta que le proporcionemos un presupuesto actualizado.

Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
16933-100-3
Desmilitarización:
No
Vigencia:
N/A
Unidad de medida:
1 EA
NIIN:
006207344
NSN
Número de acciones nacionales:
4730-00-620-7344 4730006207344
TXT
Descripción:
Pipe Flange
INC
INC
Código de nombre del artículo:
03798
MRC:
The length of a straight line which passes through the center of a flange,and terminates at the circumference.ABKK
Flange Diameter:
1.636 inches
MRC:
A measurement of the smallest dimension of an item,in distinction from length or width.ABNM
Thickness:
0.250 inches
MRC:
The length of a straight line which passes through the center of the tube for which designed,and terminates at the outside circumference.ACSV
Tube Outside Diameter For Which Designed:
1.000 inches
MRC:
The length of a straight line which passes through the center of a neck,and terminates at the circumference.ADCL
Neck Diameter:
1.040 inches
MRC:
None.AJEG
Neck Height:
0.500 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the flange section.AJEM
Flange Section Style:
Plain face long neck
MRC:
The condition of the face seating surface of an item which contacts another surface.AKWE
Face Seating Surface Condition:
Machined
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Round no bolt holes
