Número de pieza 14P00443-0000

Electric Temperature Transmitter

Precios y disponibilidad

Envíe este formulario para conocer los precios actuales y la disponibilidad de esta NSN.
Número de pieza:
Cantidad:
Dirección de correo electrónico:
Teléfono:
Referencia:
Compañía:
Nombre:

No compartimos ni vendemos su información a nadie.
Privacidad | Letra chica

All major credit cards accepted as well as gov. p-cards

Imágenes

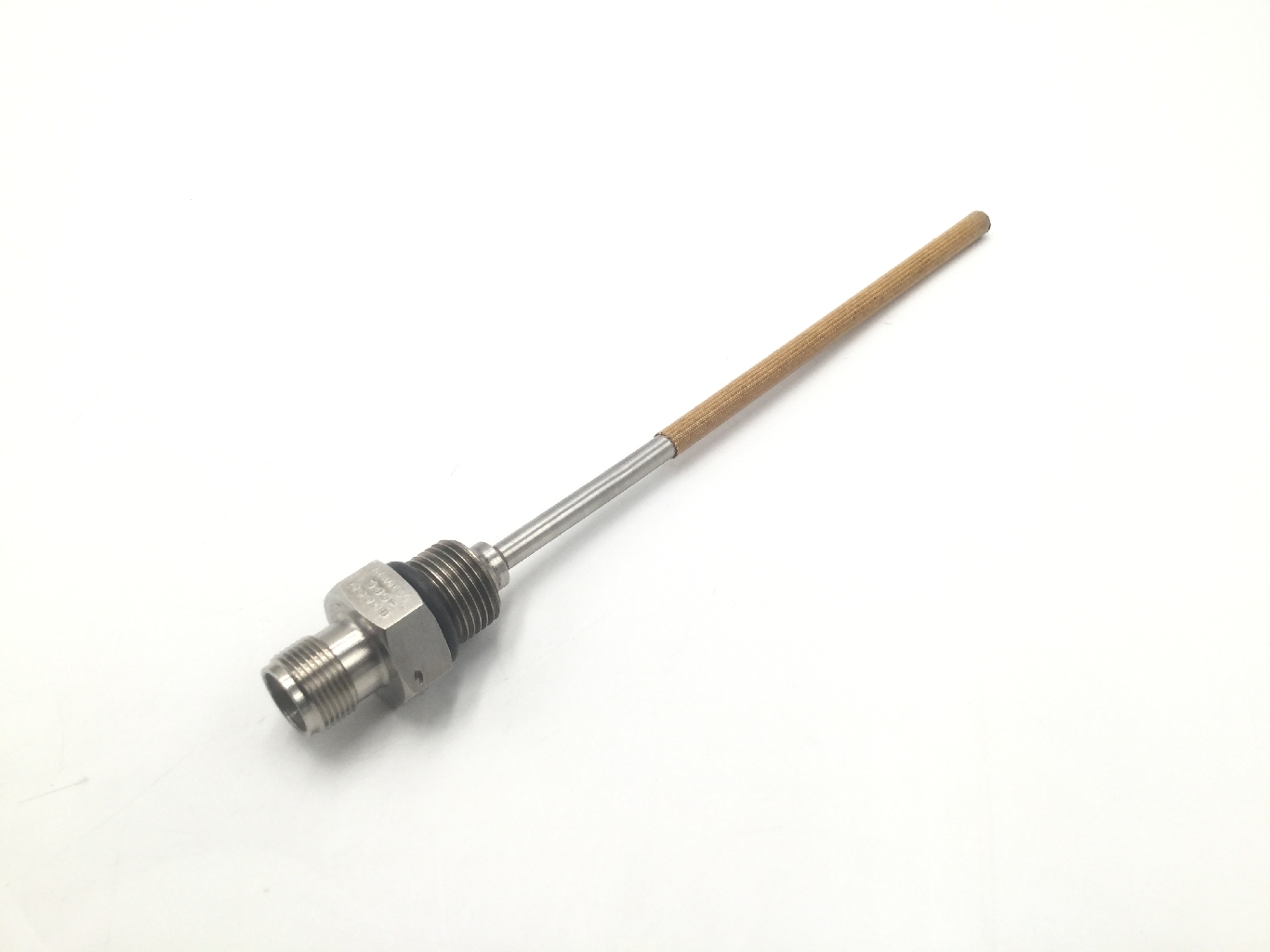

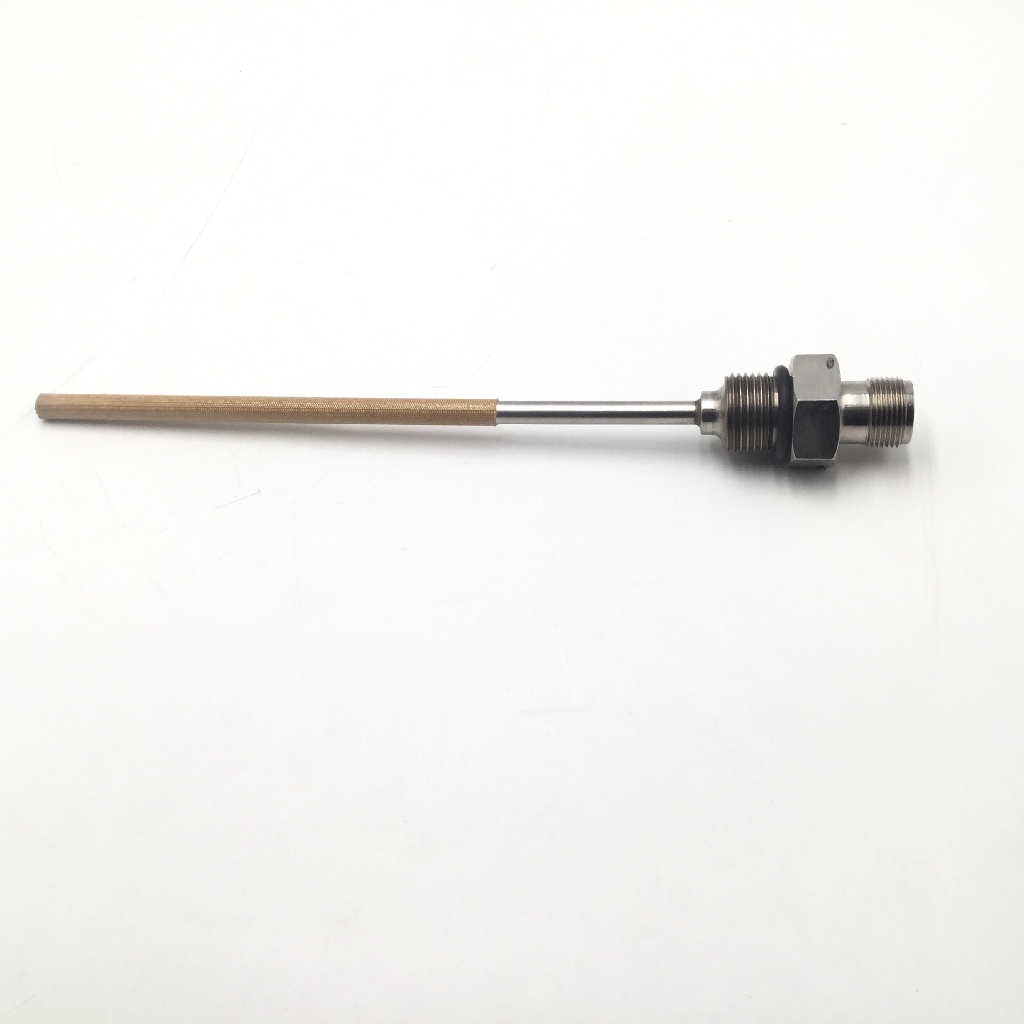

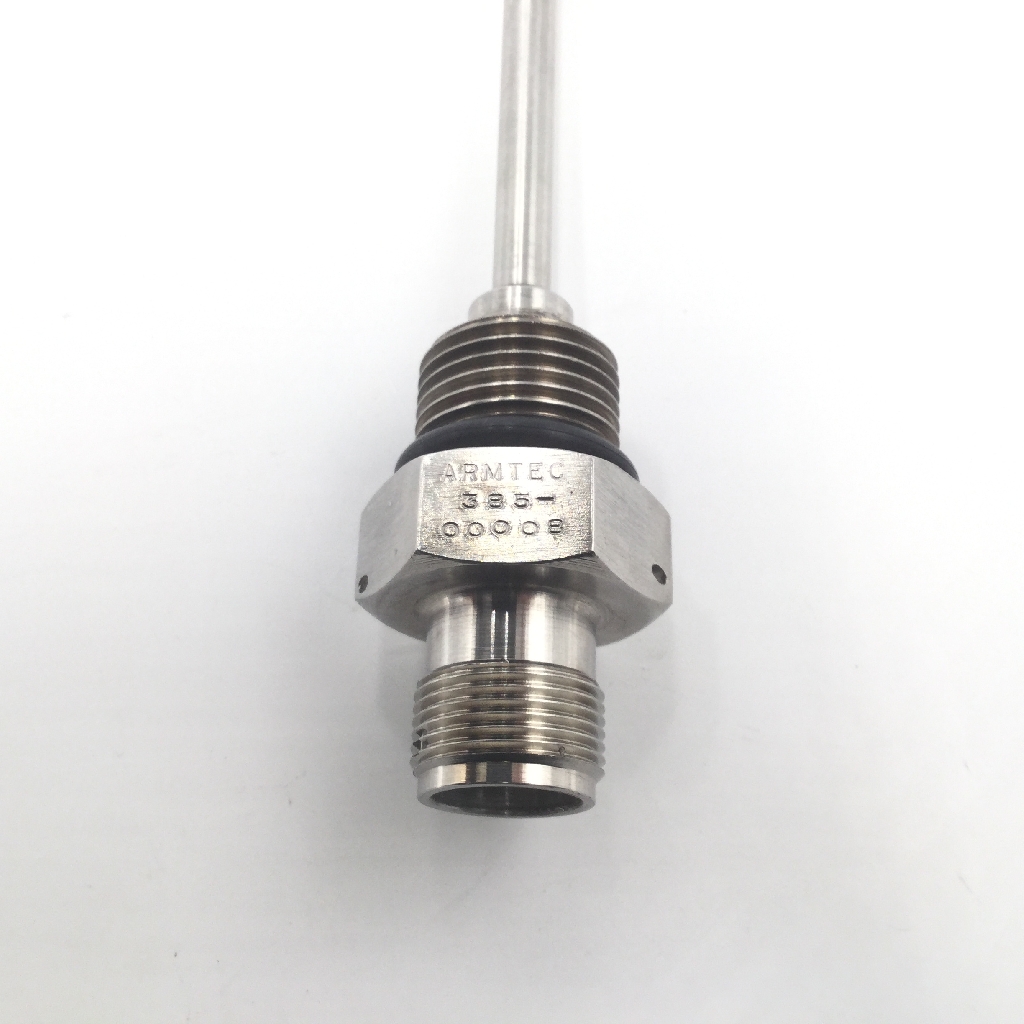

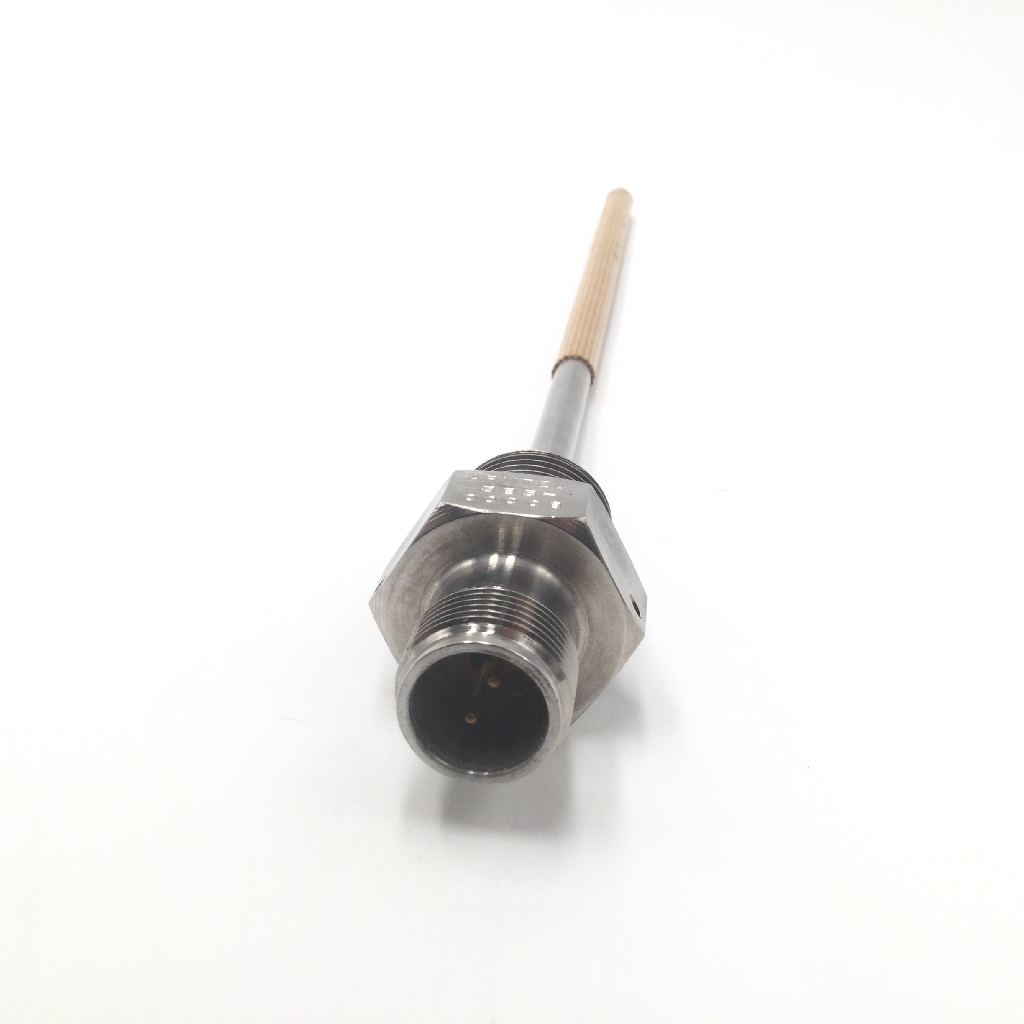

Imágenes de referencia de esta pieza
Imagen del número de acciones nacionales  6685-01-057-0768 Imagen del número de acciones nacionales  6685-01-057-0768 Imagen del número de acciones nacionales  6685-01-057-0768 Imagen del número de acciones nacionales  6685-01-057-0768

El precio histórico de este producto está entre 1368.22 and 1847.097 USD. Dependiendo de la cantidad, disponibilidad, condición, plazo de entrega y posible interrupción de un artículo, no podemos garantizar el precio hasta que le proporcionemos un presupuesto actualizado.

Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
14p00443-0000
Desmilitarización:
No
Vigencia:
N/A
Unidad de medida:
1 EA
NIIN:
010570768
NSN
Número de acciones nacionales:
6685-01-057-0768 6685010570768
TXT
Descripción:
Electric Temperature Transmitter
INC
INC
Código de nombre del artículo:
20340
MRC:
A measurement of the extent of threads,including incomplete threads,along a line parallel to the longitudinal axis.AASA
Thread Length:
0.688 inches
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABHP
Overall Length:
9.906 inches
MRC:
The length of a straight line which passes through the center of a circular figure or body,and terminates at the outside circumference.ABKV
Outside Diameter:
0.370 inches
MRC:
The minimum and maximum limits of temperature at which the item is rated for operation.AFGA
Operating Tempurature Range:
+0.0/+148.9 degrees celsius
MRC:
A designation distinguishing one group of screw thread diameter-pitch combinations from another by the number of threads per measurement scale for a specific diameter on the mounting facility.AKEJ
Mounting Facility Screw Thread Series Designator:
Unf
MRC:
Indicates the type of unit.APQB
Unit Type:
Protective tube
MRC:
Indicates the type and number of facilities by which the item is mounted.AXHR
Mounting Facility Type And Quantity:
1 thread
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Transmitter, 24V dc
