Número de pieza 1339AS218-1

Butt Hinge Leaf

Precios y disponibilidad

Envíe este formulario para conocer los precios actuales y la disponibilidad de esta NSN.
Número de pieza:
Cantidad:
Dirección de correo electrónico:
Teléfono:
Referencia:
Compañía:
Nombre:

No compartimos ni vendemos su información a nadie.
Privacidad | Letra chica

All major credit cards accepted as well as gov. p-cards

Imágenes

Imágenes de referencia de esta pieza

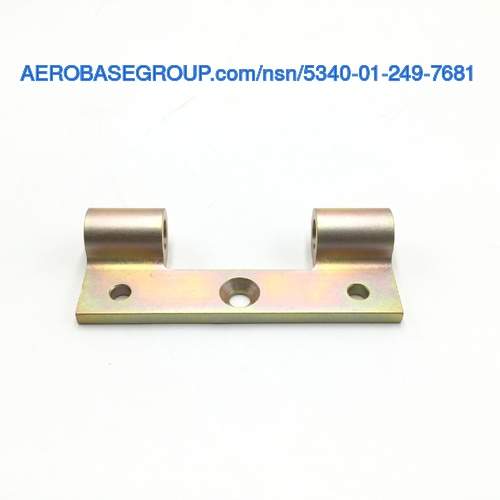

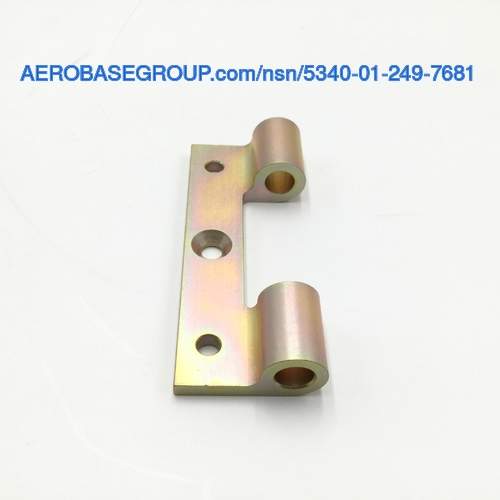

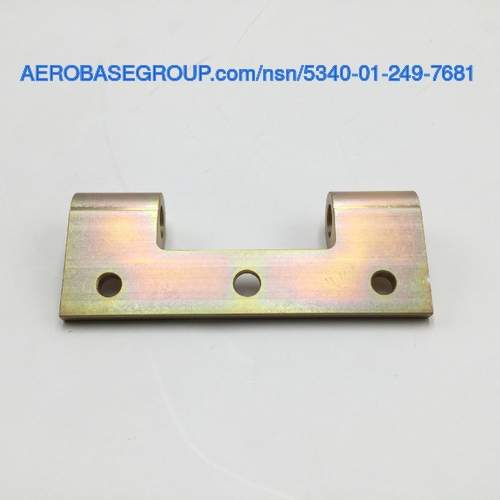

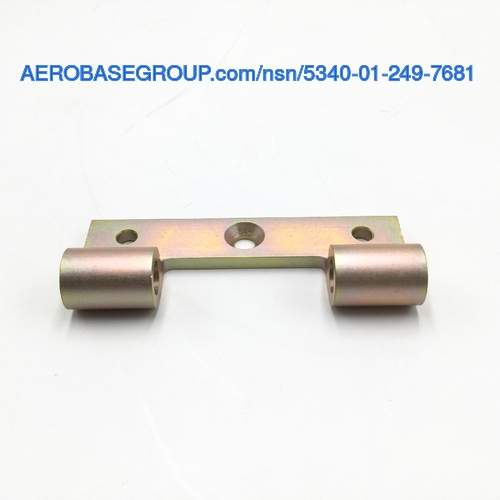

Imagen del número de acciones nacionales  5340-01-249-7681 Imagen del número de acciones nacionales  5340-01-249-7681 Imagen del número de acciones nacionales  5340-01-249-7681 Imagen del número de acciones nacionales  5340-01-249-7681

El precio histórico de este producto está entre 33.56 and 45.306 USD. Dependiendo de la cantidad, disponibilidad, condición, plazo de entrega y posible interrupción de un artículo, no podemos garantizar el precio hasta que le proporcionemos un presupuesto actualizado.

Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
1339as218-1
Desmilitarización:
No
Vigencia:
N/A
Unidad de medida:
1 EA
NIIN:
012497681

Información de la pieza
One additional hole 0.343 in Diameter csk to 0.635 in Dia

NSN
Número de acciones nacionales:
5340-01-249-7681 5340012497681
TXT
Descripción:
Butt Hinge Leaf
INC
INC
Código de nombre del artículo:
07655
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABHP
Overall Length:
5.000 inches
MRC:
The length of a straight line which passes through the center of a mounting hole,and terminates at the circumference.ABTB
Mounting Hole Diameter:
0.312 inches
MRC:
The number of mounting holes provided.ABTJ
Mounting Hole Quantity:
2
MRC:
A measurement of the center to center distance between the mounting holes along the length.ADFY
Center To Center Distance Between Mounting Holes Along Length:
Between 3.745 inches and 3.755 inches
MRC:
Indicates the performance capability of the item or component.AGLD
Performance Type:
Not rated
MRC:
An indication of whether or not a reversible feature is included.AJNC
Reversible Feature:
Not included
MRC:
An indication of whether or not a hinge pin is included.AKEW
Hinge Pin:
Not included
MRC:
The number of cylindrical projections through which an axis or pin passes.AKEX
Knuckle Quantity:
2
MRC:
None.AKFH
Knuckle Length:
1.250 inches
MRC:
None.AKFK
Pin Center To Body Edge Distance:
1.7483 inches
MRC:
None.AKFS
Knuckle Inside Diameter:
Between 0.503 inches and 0.504 inches
MRC:
Indicates the type of cylindrical projection through which an axis or pin passes.AKNB
Knuckle Type:
Friction
MRC:
The plating,dip,and/or coating that cannot be wiped off.plating and/or coating is any chemical and/or metallic additive,electrochemical,or mild mechanical process which protects the surface of the item and its location.ANNR
Surface Treatment And Location:
Chromate MIL-C-5541, class 1A
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Butt parallel holes
