Número de pieza 13211E3142-1

Packing With Retainer

Precios y disponibilidad

Envíe este formulario para conocer los precios actuales y la disponibilidad de esta NSN.
Número de pieza:
Cantidad:
Dirección de correo electrónico:
Teléfono:
Referencia:
Compañía:
Nombre:

No compartimos ni vendemos su información a nadie.
Privacidad | Letra chica

All major credit cards accepted as well as gov. p-cards

Imágenes

Imágenes de referencia de esta pieza

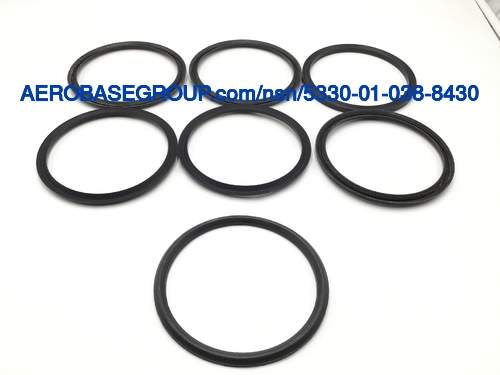

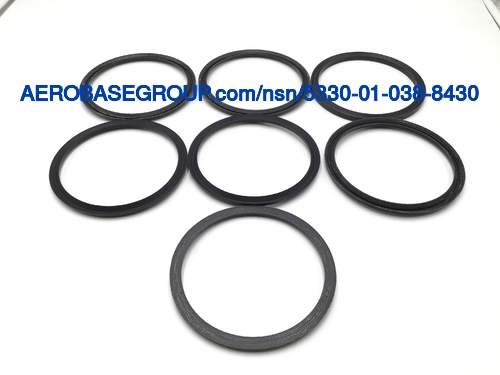

Imagen del número de acciones nacionales  5330-01-038-8430 Imagen del número de acciones nacionales  5330-01-038-8430

El precio histórico de este producto está entre 213.08 and 287.658 USD. Dependiendo de la cantidad, disponibilidad, condición, plazo de entrega y posible interrupción de un artículo, no podemos garantizar el precio hasta que le proporcionemos un presupuesto actualizado.

Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
13211e3142-1
Desmilitarización:
No
Vigencia:
N/A
Unidad de medida:
1 EA
NIIN:
010388430
NSN
Número de acciones nacionales:
5330-01-038-8430 5330010388430
TXT
Descripción:
Packing With Retainer
INC
INC
Código de nombre del artículo:
05680
MRC:
The length of a straight line which passes through the center of an item,and terminates at the outside circumference.ABHE
Outside Diameter:
5.750 inches
MRC:
A measurement of the smallest dimension of the retainer,in distinction from length or width.ADTJ
Retainer Thickness:
0.375 inches
MRC:
The length of a straight line which passes through the center of the packing ring in cross section,and terminates at the circumference.ADTK
Packing Ring Cross-sectional Diameter:
Between 1.322 inches and 1.344 inches
MRC:
The length of a straight line which passes through the center of the packing,and terminates at the inside circumference.AFFX
Packing Inside Diameter:
5.000 inches
MRC:
The structural characteristic of the item.CQCF
Construction:
One-piece
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Oil packing
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
MIL-H-6083 military specification single material response packing
