Número de pieza 13206E1480

Sediment Strainer

Precios y disponibilidad

Envíe este formulario para conocer los precios actuales y la disponibilidad de esta NSN.
Número de pieza:
Cantidad:
Dirección de correo electrónico:
Teléfono:
Referencia:
Compañía:
Nombre:

No compartimos ni vendemos su información a nadie.
Privacidad | Letra chica

All major credit cards accepted as well as gov. p-cards

Imágenes

Imágenes de referencia de esta pieza

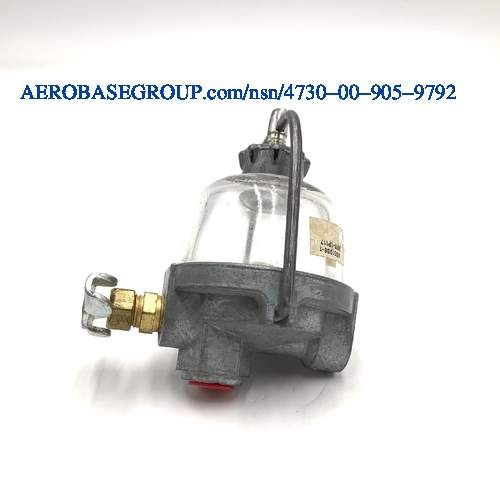

Imagen del número de acciones nacionales 4730-00-905-9792

El precio histórico de este producto está entre 41.46 and 55.971 USD. Dependiendo de la cantidad, disponibilidad, condición, plazo de entrega y posible interrupción de un artículo, no podemos garantizar el precio hasta que le proporcionemos un presupuesto actualizado.

Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
13206e1480
Desmilitarización:
No
Vigencia:
N/A
Unidad de medida:
1 EA
NIIN:
009059792

Información de la pieza
Grumman aerospace corporation A10 aircraft

NSN
Número de acciones nacionales:
4730-00-905-9792 4730009059792
TXT
Descripción:
Sediment Strainer
INC
INC
Código de nombre del artículo:
04200
MRC:
Indicates the type of mount utilized to support the item.AAXX
Mounting Type:
Inlet connection head side and outlet connection head side
MRC:
A measurement of the longest dimension of the body,in distinction from width.ADAQ
Body Length:
3.250 inches
MRC:
A measurement taken at right angles to the length of the body,in distinction from thickness.ADAT
Body Width:
2.750 inches
MRC:
A measurement from the bottom to the top of the body,in distinction from depth.ADAU
Body Height:
3.875 inches
MRC:
The length of a straight line which passes through the center of the wire,and terminates at the circumference.AGCW
Wire Diameter:
0.0045 inches
MRC:
A numeric value which represents the number of openings per lineal inch.AKSX
Mesh Size:
100.0
MRC:
Those features,not otherwise specified,which may be required for proper functioning of the item.CBBL
Features Provided:
Drain plug and manual shut-off valve
MRC:
An indication of the structure or characteristic of the filtering media.CRXW
Filtering Media Design:
Mesh single filtering media response
MRC:
Indicates the type of connection on the first intake.CRXZ
First Intake Connection Type:
Threaded internal pipe head side
MRC:
Indicates the first discharge connection relationship to an intake connection.CSJR
First Discharge Connection Relationship To Intake Connection:
Identical to first intake connection
MRC:
A designation distinguishing one group of thread diameter-pitch combination from another by the number of threads per measurement scale for a specific diameter.CTDY
First Intake Thread Series Designator:
Nptf
MRC:
A designation that is used for the purpose of general identification of the thread.CTGK
First Intake Thread Size:
0.125 inches
MRC:
The direction of the thread when viewed axially.a right-hand thread winds in a clockwise direction while a left-hand thread winds in a counterclockwise direction.CXPF
First Intake Thread Direction:
Right-hand
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Copper alloy screening
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Copper alloy sediment bowl
MRC:
The type of media for which the item is designed.MEDA
Media For Which Designed:
Fuel/oil hydrocarbon
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Unthreaded shell w/selective flow
