Número de pieza:
12707366
NSN
Número de acciones nacionales:
TXT
Descripción:

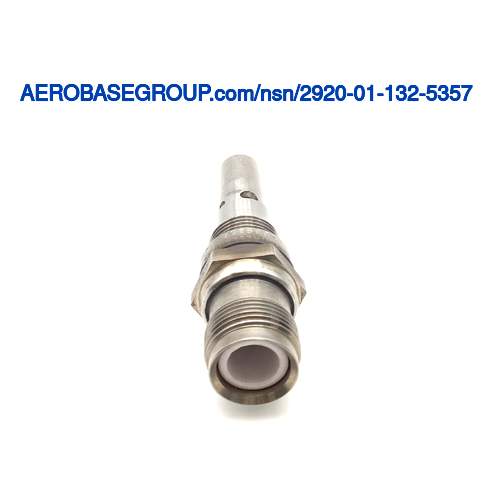

Spark Plug
Código de nombre del artículo:
00294
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the body.AAQL
Body Style:
Electrically shielded full insulator gasket seat
MRC:
A measurement of the longest dimension of the reach,in distinction from width.AHPM
Reach Length:
0.700 inches
MRC:
Indicates the designed use of the item.ALBY
Usage Design:
Engine other than aircraft
MRC:
The shortest straight line between flats,perpendicular to the height.ASDB
Width Across Flats:
0.885 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the electrode.AYGA
Electrode Style:
Triple gap ground electrode
MRC:
Designates the thread diameter,series/type,and number of threads per measurement scale,and the location.AYGB
Thread Size And Series/type Designator And Location:
18-1.5MM base
Seat Major Diameter:
0.510 inches
Height Above Mounting Surface:
2.920 inches
Top To Terminal Contact Distance:
1.000 inches
Top To Shield Thread Distance:
0.104 inches
Shield Thread Length:
0.375 inches
Terminal Sleeve Inside Diameter:
0.378 inches
