Número de pieza 12597041

Retaining Strap

Precios y disponibilidad

Envíe este formulario para conocer los precios actuales y la disponibilidad de esta NSN.
Número de pieza:
Cantidad:
Dirección de correo electrónico:
Teléfono:
Referencia:
Compañía:
Nombre:

No compartimos ni vendemos su información a nadie.
Privacidad | Letra chica

All major credit cards accepted as well as gov. p-cards

Imágenes

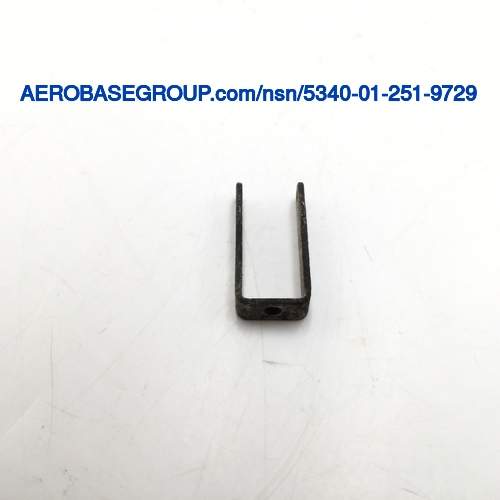

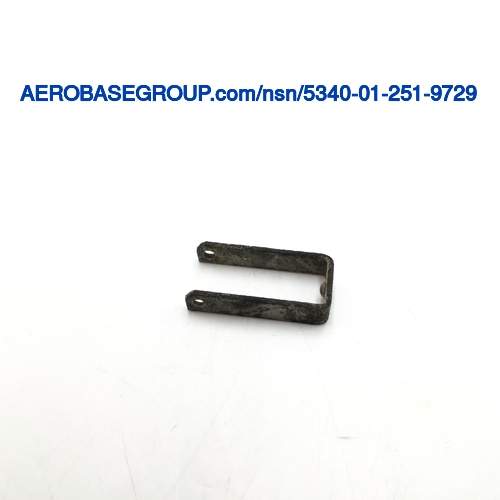

Imágenes de referencia de esta pieza
Imagen del número de acciones nacionales 5340-01-251-9729 Imagen del número de acciones nacionales 5340-01-251-9729 Imagen del número de acciones nacionales 5340-01-251-9729

El precio histórico de este producto está entre 7.94 and 10.719 USD. Dependiendo de la cantidad, disponibilidad, condición, plazo de entrega y posible interrupción de un artículo, no podemos garantizar el precio hasta que le proporcionemos un presupuesto actualizado.

Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
12597041
Desmilitarización:
Yes - DEMIL/MLI
Vigencia:
N/A
Unidad de medida:
1 EA
NIIN:
012519729

Información de la pieza
Material is per ASTM-A568, carbon comp 1070-1080, cold rolled annealed and skin passed surface treatment is per MIL-P-16232, type m class 1; hydrogenembrittlement relieved per DOD-P-16232; heat treatment=austenitize at 850 deg C For 10 min In neutral atmosphere oil quench temper for 1 hr Min To 15N 83-86, air cool

NSN
Número de acciones nacionales:
5340-01-251-9729 5340012519729
TXT
Descripción:
Retaining Strap
INC
INC
Código de nombre del artículo:
05072
INC
COM
Conformidad:
* ITAR Controlled
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABHP
Overall Length:
20.41 millimeters
MRC:
An overall measurement taken at right angles to the length of an item,in distinction from thickness.ABMK
Overall Width:
2.25 millimeters
MRC:
A measurement of the smallest dimension of the material,in distinction from length or width.ABPX
Material Thickness:
0.98 millimeters
MRC:
A measurement of volume taken by multiplying the length by the width by the height of an item and rendered in cubic units.AFJK
Cubic Measure:
3.91718 cubic centimeters
MRC:
An indication of whether or not a cushion(s) is included.BXQG
Cushion:
Not included
MRC:
An indication of whether or not a mounting pad(s) is included.BXQJ
Mounting Pad:
Not included
MRC:
Designates the size of the relative or proportionate dimension of the mounting hole.BYML
Mounting Hole Size:
2.4 millimeters
MRC:
None.BYMP
Inside Diameter/arch Length:
6.57 millimeters
MRC:
None.BYMR
Center To Center Distance Between Arch And Mounting Hole:
18.9 millimeters
MRC:
The element,compound,or mixture of which an item is fabricated,excluding any surface treatment.MATL
Material:
Steel
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Phosphate
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
U
MRC:
Consists of plating,dip,and/or coating that cannot be wiped off.plating and/or coating is any chemical and/or metallic additive,electrochemical,or mild mechanical process which protects a surface.SURF
Surface Treatment:
Phosphate
