Número de pieza:
12592020
Información de la pieza

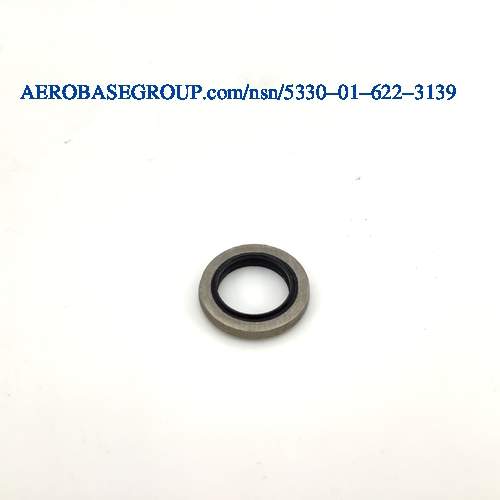

Seal bonded steel and synthetic rubber
NSN
Número de acciones nacionales:
TXT
Descripción:
Plain Encased Seal
Código de nombre del artículo:
04214
MRC:
The length of a straight line which passes through the center of an item,and terminates at the outside circumference.ABHE
Outside Diameter:
Between 0.6250 inches and 0.6300 inches
MRC:
A value which expresses the degree of heat or cold as applied to the operation,or limitation of operation,of an item.ABJH
Tempurature Rating:
-50.0 degrees fahrenheit and 145.0 degrees fahrenheit
MRC:
The length of a straight line which passes through the center of the accommodation for the shaft,and terminates at the circumference.ABVM
Accommodated Shaft Diameter:
0.407 inches
MRC:
A measurement taken between the flat surfaces /front and back/ of the seal,in distinction from thickness.ADUC
Seal Width:
0.059 inches
MRC:
The length of a straight line which passes through the center of the center hole,and terminates at the circumference.ADYT
Center Hole Diameter:
Between 0.403 inches and 0.411 inches
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
1015-01-482-4914
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the case.BHHL
Case Style:
Square
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the sealing element.CTQC
Sealing Element Style:
Vertical
MRC:
The maximum pressure at which an item is rated to operate.CTQW
Maximum Pressure Rating:
1280.0 pounds per square inch
MRC:
Those unusual or unique characteristics or qualities of an item not covered in the other requirements and which are determined to be essential for identification.FEAT
Special Features:
Edits would not allow this to be coded as specification control
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Rubber sealing element
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 316 outer ring
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Astm D2000 assn standard single material response sealing element
