Número de pieza 120-075-1

Plug-in Electronic Compon Socket
Descripción

Socket

Disponibilidad de stock  Códigos de condición del producto

Número de pieza 120-075-1 está en stock en las siguientes cantidades y condiciones.

  • NS: 24
  • NE: 43
  • OH: 1
  • SV: 1
  • AR: 1

Nota: La disponibilidad de este artículo se actualizó por última vez 03/14/2024 y puede haber cambiado desde entonces. Solicite una cotización para conocer los precios y la disponibilidad actualizados.

Precios y disponibilidad

Envíe este formulario para conocer los precios actuales y la disponibilidad de esta NSN.
Número de pieza:
Cantidad:
Dirección de correo electrónico:
Teléfono:
Referencia:
Compañía:
Nombre:

No compartimos ni vendemos su información a nadie.
Privacidad | Letra chica

All major credit cards accepted as well as gov. p-cards

Imágenes

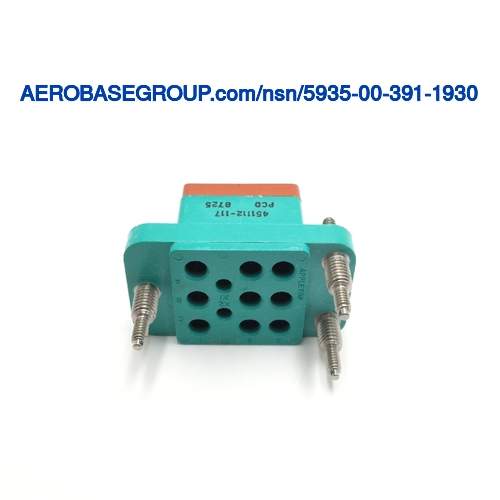

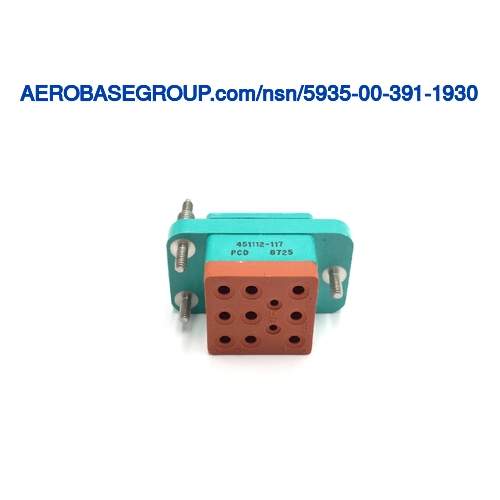

Imágenes de referencia de esta pieza
Imagen del número de acciones nacionales 5935-00-391-1930 Imagen del número de acciones nacionales 5935-00-391-1930 Imagen del número de acciones nacionales 5935-00-391-1930 Imagen del número de acciones nacionales 5935-00-391-1930

El precio histórico de este producto está entre 76.04 and 102.654 USD. Dependiendo de la cantidad, disponibilidad, condición, plazo de entrega y posible interrupción de un artículo, no podemos garantizar el precio hasta que le proporcionemos un presupuesto actualizado.

Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
120-075-1
Desmilitarización:
No
Vigencia:
N/A
Unidad de medida:
1 EA
NIIN:
003911930
NSN
Número de acciones nacionales:
5935-00-391-1930 5935003911930
TXT
Descripción:
Plug-in Electronic Compon Socket
INC
INC
Código de nombre del artículo:
28914
MRC:
The basic material of which the body is fabricated.AAFZ
Body Material:
Plastic
MRC:
A numeric-alpha designator indicating the pitch diameter tolerance and an external or internal thread.AAJD
Thread Class:
2A
MRC:
The direction of the thread when viewed axially. a right-hand thread winds in a clockwise direction while a left-hand thread winds in a counterclockwise direction.AAJF
Thread Direction:
Right-hand
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the body.AAQL
Body Style:
Top or bottom mount w/molded saddle and bushing
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABHP
Overall Length:
Between 1.700 inches and 1.720 inches
MRC:
The distance measured in a straight line from the bottom to the top of an item.ABKW
Overall Height:
Between 1.060 inches and 1.080 inches
MRC:
An overall measurement taken at right angles to the length of an item,in distinction from thickness.ABMK
Overall Width:
Between 0.990 inches and 1.010 inches
MRC:
The length of a straight line which passes through the center of a mounting hole,and terminates at the circumference.ABTB
Mounting Hole Diameter:
Between 0.198 inches and 0.218 inches
MRC:
None.ADAJ
Body Mounting Hole Accommodation Length:
Between 0.990 inches and 1.010 inches
MRC:
None.ADAK
Body Mounting Hole Accommodation Width:
Between 0.990 inches and 1.010 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the mounting hole(s).AEVB
Mounting Hole Style:
Rectangular, w/three mounting holes/slots
MRC:
The element,compound,or mixture of which the contact/s/ is fabricated,excluding any surface treatment.AFRG
Contact Material:
Any acceptable
MRC:
Consists of plating,dip,and/or coating that cannot be wiped off. plating and/or coating is any chemical and/or metallic additive,electrochemical,or mild mechanical process which protects the contact surface.AFRH
Contact Surface Treatment:
Any acceptable
MRC:
The number of contacts accommodated by the item.AFRL
Accommodated Contact Quantity:
11
MRC:
None.AGVA
Center To Center Distance Between Outside Mounting Holes Along Length:
Between 1.396 inches and 1.416 inches
MRC:
None.AGVB
Center To Center Distance Between Outside Mounting Holes Along Width:
Between 0.615 inches and 0.635 inches
MRC:
Indicates the type of polarization used to prevent mismating.AKWN
Polarization Type:
Contact position
MRC:
None.AKXD
Projection Length Above Mounting Surface:
Between 0.083 inches and 0.103 inches
MRC:
The means of attaching the item.AXGY
Mounting Method:
Threaded stud
MRC:
Indicates the type of mounting for which the item is designed.BCNX
Mounting Type For Which Designed:
Chassis
MRC:
The number of threads on the item per linear inch measured on a line parallel to the thread axis.CMLP
Thready Qty Per Inch (tpi):
40
MRC:
A designation that is used for the purpose of general identification of the thread.CQJX
Thread Size:
0.112 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the arrangement of the contact positions.CRPY
Contact Position Arrangement Style:
Irregular
MRC:
A designation distinguishing one group of thread diameter-pitch combinations from another by the number of threads per measurement scale for a specific diameter.THSD
Thread Series Designator:
Unc
MRC:
Indicates the type and number of terminals for providing electrical connection.TTQY
Terminal Type And Quantity:
11 crimp
