Número de pieza 11741118-2

Rotating Counter
Disponibilidad de stock  Códigos de condición del producto

Número de pieza 11741118-2 está en stock en las siguientes cantidades y condiciones.

  • NE: 11

Nota: La disponibilidad de este artículo se actualizó por última vez 03/22/2024 y puede haber cambiado desde entonces. Solicite una cotización para conocer los precios y la disponibilidad actualizados.

Precios y disponibilidad

Envíe este formulario para conocer los precios actuales y la disponibilidad de esta NSN.
Número de pieza:
Cantidad:
Dirección de correo electrónico:
Teléfono:
Referencia:
Compañía:
Nombre:

No compartimos ni vendemos su información a nadie.
Privacidad | Letra chica

All major credit cards accepted as well as gov. p-cards

Imágenes

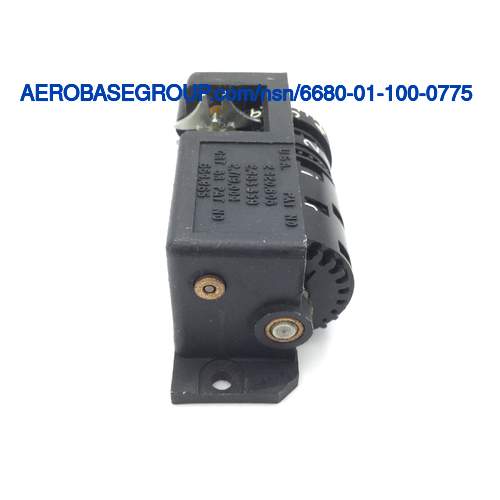

Imágenes de referencia de esta pieza
Imagen del número de acciones nacionales 6680-01-100-0775

El precio histórico de este producto está entre 2949.921 and 3857.589 USD. Dependiendo de la cantidad, disponibilidad, condición, plazo de entrega y posible interrupción de un artículo, no podemos garantizar el precio hasta que le proporcionemos un presupuesto actualizado.

Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
11741118-2
Desmilitarización:
Yes - DEMIL/MLI
Vigencia:
N/A
Unidad de medida:
1 EA
NIIN:
011000775
NSN
Número de acciones nacionales:
6680-01-100-0775 6680011000775
TXT
Descripción:
Rotating Counter
INC
INC
Código de nombre del artículo:
30762
INC
COM
Conformidad:
* ITAR Controlled
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABHP
Overall Length:
3.093 inches
MRC:
The distance measured in a straight line from the bottom to the top of an item.ABKW
Overall Height:
1.250 inches
MRC:
An overall measurement taken at right angles to the length of an item,in distinction from thickness.ABMK
Overall Width:
1.188 inches
MRC:
The length of a straight line which passes through the center of a shaft,and terminates at the circumference.ABWV
Shaft Diameter:
Between 0.1870 inches and 0.1875 inches
MRC:
A measurement of the longest dimension of the shaft,in distinction from width.ABXF
Shaft Length:
0.312 inches
MRC:
The number of register(s) contained in the item.ANQD
Register Quantity:
4
MRC:
The number of digits displayed on each register of the item.ANQS
Figure Quantity Per Register:
10 single register single tier
MRC:
A measurement from the bottom to the top of the figure.ANQT
Figure Height:
0.161 inches single register single tier
MRC:
The number of shaft revolutions required to make one count.ANRD
Shaft Revolutions Per Count:
0.01 single register single tier
MRC:
The maximum number of counts the item can accomplish in a measured time.ANRE
Maximum Count Rate:
10.0 per second single register single tier
MRC:
The means used to return the register/s/ to original position.AXEC
Register Reset Method:
Individual figure manual single register single tier
MRC:
The mathematical function the register/s/ is designed to perform.AXED
Register Function:
Subtract single register single tier
MRC:
Indicates the location of the actuating device on the item.AXEG
Actuating Device Location:
Top center single register single tier
MRC:
Indicates the type and number of facilities by which the item is mounted.AXHR
Mounting Facility Type And Quantity:
4 unthreaded hole
MRC:
Indicates the type of mounting for which the item is designed.BCNX
Mounting Type For Which Designed:
Shaft single register single tier
MRC:
The means by which the display of the numeral is provided.CSWS
Numeral Display Method:
Wheel
MRC:
The readout of the numerals displayed by the item.CSWT
Numeral Readout:
00000 single register single tier and 99999 single register single tier
MRC:
The direction the shaft turns as viewed from the drive end and the maximum speed,expressed in revolutions per minute.CSWW
Shaft Rotation Direction And Maximum Speed In Rpm:
2400.0 clockwise all registers all tiers
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Square/rectangular cased
