Número de pieza:
11625035
NSN
Número de acciones nacionales:
TXT
Descripción:

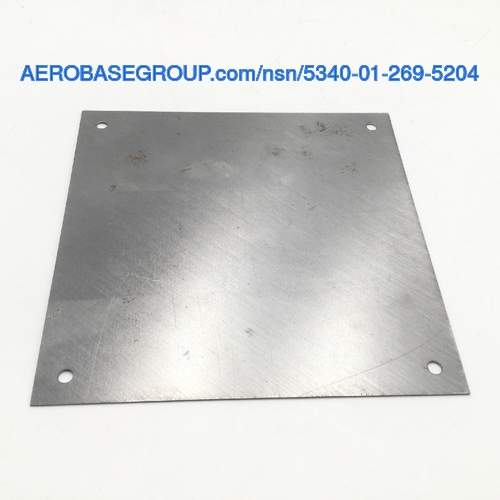

Access Cover
Código de nombre del artículo:
29785
MRC:
The style designation indicating the configuration that most nearly corresponds to the cross-sectional shape of the item.AAGR
Cross Sectional Shape:
Flat
MRC:
The length of a straight line which passes through the center of a hole,and terminates at the circumference.AAUB
Hole Diameter:
Between 0.184 inches and 0.190 inches
MRC:
A measurement taken at right angles to the length of an item,in distinction from thickness.ABGL
Width:
5.500 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the peripheral shape of the item.ABMW
Edge Shape:
Rectangle four holes
MRC:
A measurement of the longest dimension of any object,in distinction from width.ABRY
Length:
5.500 inches
Distance Between Holes Along Length:
4.750 inches
Distance Between Holes Along Width:
4.750 inches
Distance From First Hole Centerline To End Along Length:
0.380 inches
Distance From First Hole Centerline To End Along Width:
0.380 inches
MRC:
A measurement of the smallest dimension of a body,in distinction from length or width.ADPR
Body Thickness:
0.030 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the shape of the mounting opening.ADQK
Mounting Opening Shape Style:
Unthreaded hole
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 1009 or steel comp 1015 or steel comp 1018 or steel comp 1020
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
QQ-S-698 federal specification all material responses
