Número de pieza 10C

Loop Clamp
Descripción

Clamp

Precios y disponibilidad

Envíe este formulario para conocer los precios actuales y la disponibilidad de esta NSN.
Número de pieza:
Cantidad:
Dirección de correo electrónico:
Teléfono:
Referencia:
Compañía:
Nombre:

No compartimos ni vendemos su información a nadie.
Privacidad | Letra chica

All major credit cards accepted as well as gov. p-cards

Imágenes

Imágenes de referencia de esta pieza

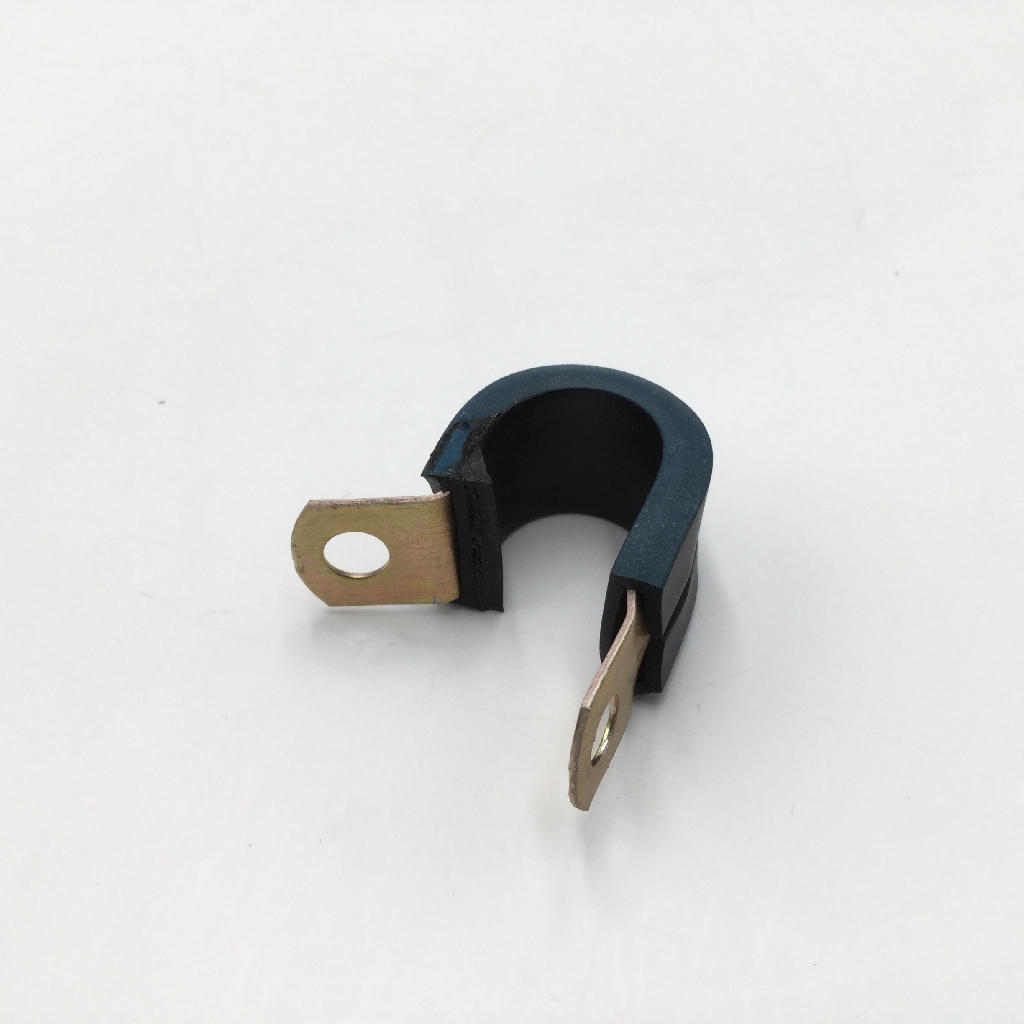

Imagen del número de acciones nacionales 5340-00-291-5347 Imagen del número de acciones nacionales 5340-00-291-5347

El precio histórico de este producto está entre 0.7 and 0.945 USD. Dependiendo de la cantidad, disponibilidad, condición, plazo de entrega y posible interrupción de un artículo, no podemos garantizar el precio hasta que le proporcionemos un presupuesto actualizado.

Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
10c
Desmilitarización:
No
Vigencia:
180 mo.
Unidad de medida:
1 EA
NIIN:
002915347

Información de la pieza
Weapons system essential

NSN
Número de acciones nacionales:
5340-00-291-5347 5340002915347
TXT
Descripción:
Loop Clamp
INC
INC
Código de nombre del artículo:
17532
MRC:
Indicates the type of hole/s/ in the tongue.AAAL
Tongue Hole Type:
Round unthreaded
MRC:
The environmental elements or conditions that the cushioning is designed or protected to resist or withstand satisfactorily.AAAP
Cushioning Environmental Protection:
Weather resistant
MRC:
An overall measurement taken at right angles to the length of an item,in distinction from thickness.ABMK
Overall Width:
0.500 inches
MRC:
The length of a straight line which passes through the center of a circular figure or body,and terminates at the circumference.ABMZ
Diameter:
0.204 inches
MRC:
A measurement of the smallest dimension of the material,in distinction from length or width.ABPX
Material Thickness:
0.032 inches
MRC:
None.AZCY
Center To Center Distance Between Loop And Mounting Hole:
0.654 inches
MRC:
None.AZDC
Distance From Loop Center To Tongue End:
0.872 inches
MRC:
The length of a straight line which passes through the center of the loop,and terminates at the inside circumference.BZTN
Loop Inside Diameter:
Between 0.485 inches and 0.515 inches
MRC:
The master requirement codes of those requirements which are technically critical by reason of tolerance,fit,performance,or other characteristics which affect identification of the item.CRTL
Criticality Code Justification:
Feat
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Aluminum alloy 2024 band
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Rubber chloroprene class cr cushion
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
00-A-250/5 federal specification single material response band
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Ams 3209 assn standard single material response cushion
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Chromate band
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
-1L-C-5541 military specification single treatment response band
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Offset mount
