Número de pieza:
10630067-47
NSN
Número de acciones nacionales:
TXT
Descripción:

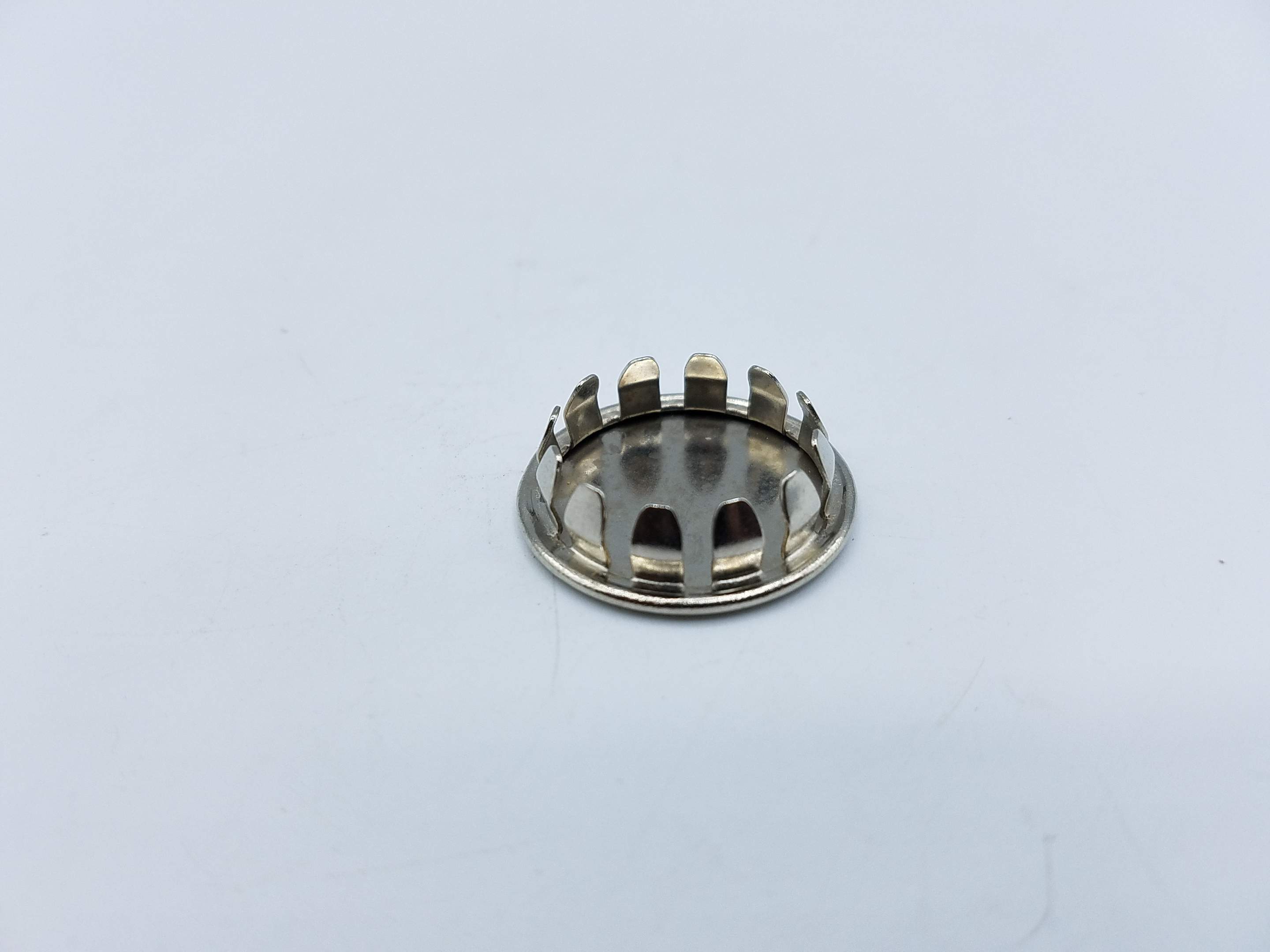

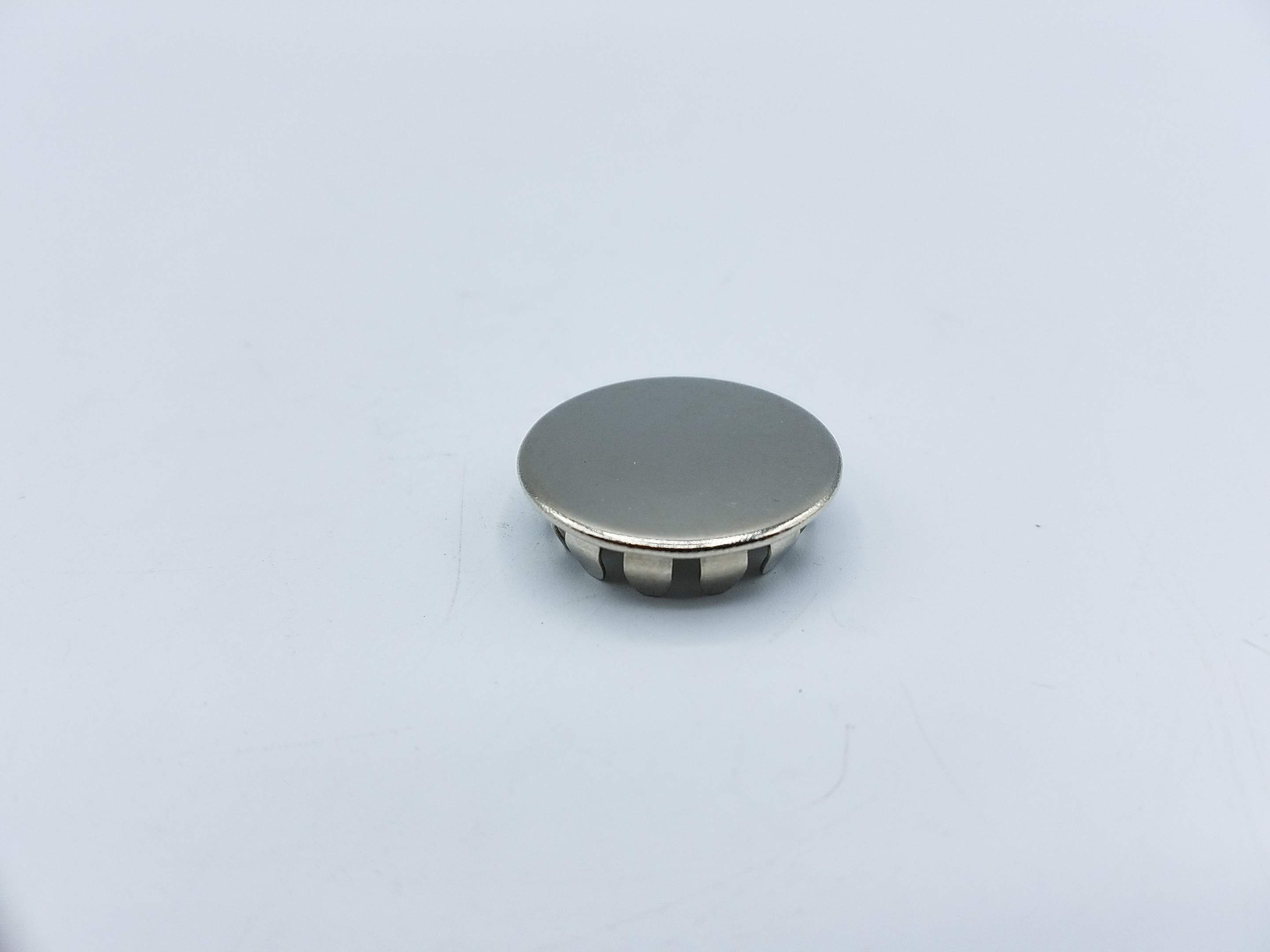

Plug Button
Código de nombre del artículo:
11251
MRC:
A measurement from the bottom to the top of the head,in distinction from depth.AASU
Head Height:
0.062 inches
MRC:
The distance measured in a straight line from the bottom to the top of an item.ABKW
Overall Height:
0.297 inches
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
W/s: aircraft hercules KC-130; helicopter HH-53H pave low
Head Outside Diameter:
1.062 inches
MRC:
The thickness of the material to be accommodated.AGSM
Material Accommodated Thickness:
Between 0.062 inches and 0.093 inches
MRC:
The length of a straight line which passes through the center of the hole accommodation,and terminates at the circumference.AKRM
Hole Accommodation Diameter:
0.880 inches
Prong Outside Diameter:
0.891 inches
MRC:
The number of prongs provided.BZNN
Prong Quantity:
12
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 1010 or steel comp 1050
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Sae 1010 assn standard single material response or sae 1050 assn standard single material response
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Nickel
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Standard
