Número de pieza 10389775

Socket Head Cap Screw
Descripción

Screw,cap,socket he

Disponibilidad de stock  Códigos de condición del producto

Número de pieza 10389775 está en stock en las siguientes cantidades y condiciones.

  • NS: 1958
  • NE: 5029
  • SV: 1

Nota: La disponibilidad de este artículo se actualizó por última vez 09/05/2024 y puede haber cambiado desde entonces. Solicite una cotización para conocer los precios y la disponibilidad actualizados.

Precios y disponibilidad

Envíe este formulario para conocer los precios actuales y la disponibilidad de esta NSN.
Número de pieza:
Cantidad:
Dirección de correo electrónico:
Teléfono:
Referencia:
Compañía:
Nombre:

No compartimos ni vendemos su información a nadie.
Privacidad | Letra chica

All major credit cards accepted as well as gov. p-cards

Imágenes

Imágenes de referencia de esta pieza

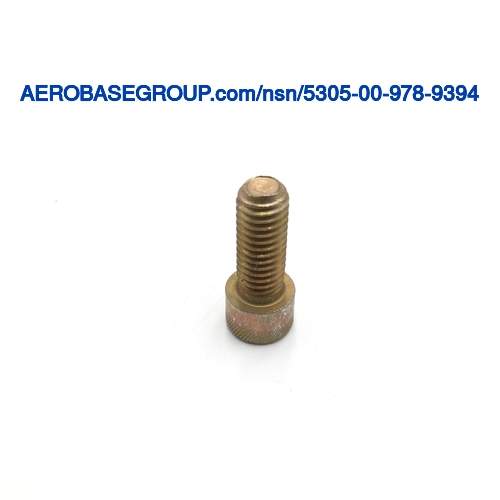

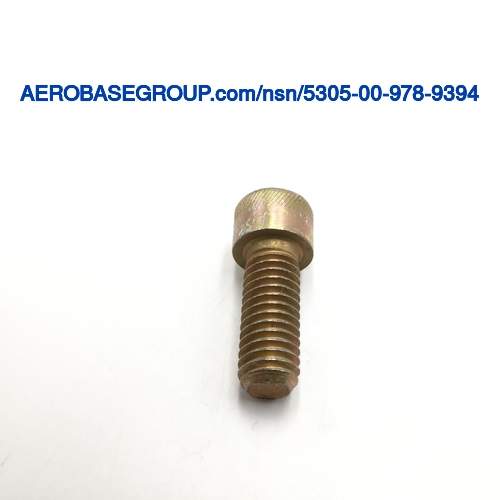

Imagen del número de acciones nacionales 5305-00-978-9394 Imagen del número de acciones nacionales 5305-00-978-9394 Imagen del número de acciones nacionales 5305-00-978-9394

El precio histórico de este producto está entre 1.1 and 1.485 USD. Dependiendo de la cantidad, disponibilidad, condición, plazo de entrega y posible interrupción de un artículo, no podemos garantizar el precio hasta que le proporcionemos un presupuesto actualizado.

Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
10389775
Desmilitarización:
No
Vigencia:
N/A
Unidad de medida:
100 EA
NIIN:
009789394
NSN
Número de acciones nacionales:
5305-00-978-9394 5305009789394
TXT
Descripción:
Socket Head Cap Screw
INC
INC
Código de nombre del artículo:
16282
MRC:
A numeric-alpha designator indicating the pitch diameter tolerance and an external or internal thread.AAJD
Thread Class:
3A
MRC:
The direction of the thread when viewed axially. a right-hand thread winds in a clockwise direction while a left-hand thread winds in a counterclockwise direction.AAJF
Thread Direction:
Right-hand
MRC:
A measurement of the extent of threads,including incomplete threads,along a line parallel to the longitudinal axis.AASA
Thread Length:
Between 0.844 inches and 1.000 inches
MRC:
The dimension,measured along a line parallel to the longitudinal axis,from the largest bearing surface of the fastener head to the extreme opposite end,or as specifically designated for other type fasteners.AASB
Fastener Length:
Between 0.969 inches and 1.000 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the head.AASK
Head Style:
Flat chamfer
MRC:
The length of a straight line which passes through the center of a circular head,and terminates at the circumference.AASL
Head Diameter:
Between 0.550 inches and 0.562 inches
MRC:
A measurement from the bottom to the top of the head,in distinction from depth.AASU
Head Height:
Between 0.368 inches and 0.375 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the internal drive.ABQZ
Internal Drive Style:
Hexagon
MRC:
The nominal length of a straight line which passes through the center of the threaded portion,and terminates at the circumference.AHYM
Thread Diameter:
0.375 inches
MRC:
The shortest straight line between flats,perpendicular to the height.ASDB
Width Across Flats:
Between 0.312 inches and 0.316 inches
MRC:
The number of threads on the item per linear inch measured on a line parallel to the thread axis.CMLP
Thready Qty Per Inch (tpi):
16
MRC:
The maximum rated load in tension applied in a longitudinal direction,per unit of cross-sectional area,that the material can withstand without rupture.CQBC
Min. Tensile Strength (psi):
160000 pounds per square inch
MRC:
A numeric value that reflects the hardness of an item when used in conjunction with a hardness rating scale.CQFM
Hardness Rating:
36.0 rockwell c and 45.0 rockwell c
MRC:
The stress at which a material exhibits a specified limiting deviation from the proportionality of stress or strain.CQHQ
Minimum Yield Strength:
130000 pounds per square inch
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Cadmium and chromate
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
QQ-P-416, type 2, cl 3 federal specification all treatment responses
MRC:
A designation distinguishing one group of thread diameter-pitch combinations from another by the number of threads per measurement scale for a specific diameter.THSD
Thread Series Designator:
Unc
MRC:
The number,letter,or symbol that indicates the type,style,grade,class,and the like,of an item in a nonidentifying specification or standard.ZZZT
Specification Or Standard:
6 type
