Número de pieza 1018985D001

Flat Washer
Descripción

Washer

Precios y disponibilidad

Envíe este formulario para conocer los precios actuales y la disponibilidad de esta NSN.
Número de pieza:
Cantidad:
Dirección de correo electrónico:
Teléfono:
Referencia:
Compañía:
Nombre:

No compartimos ni vendemos su información a nadie.
Privacidad | Letra chica

All major credit cards accepted as well as gov. p-cards

Imágenes

Imágenes de referencia de esta pieza

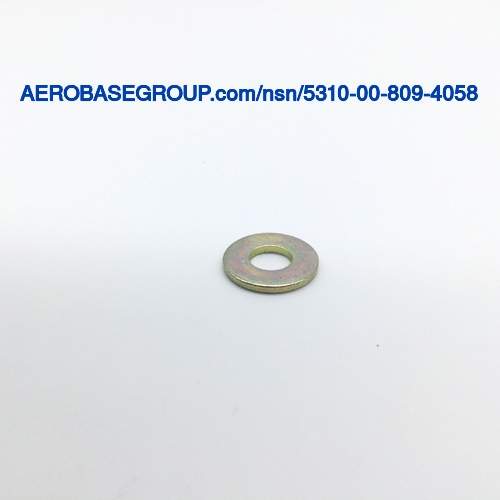

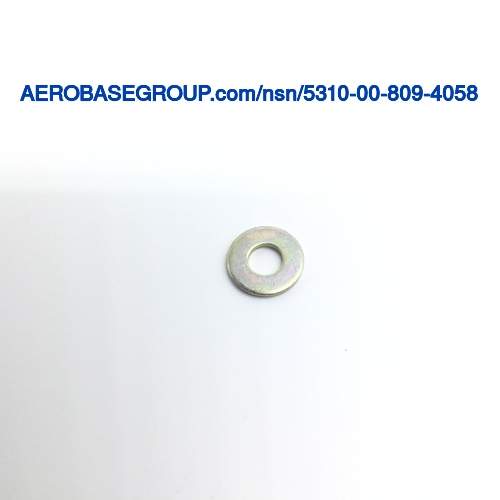

Imagen del número de acciones nacionales 5310-00-809-4058 Imagen del número de acciones nacionales 5310-00-809-4058 Imagen del número de acciones nacionales 5310-00-809-4058

El precio histórico de este producto está entre 2.94 and 3.969 USD. Dependiendo de la cantidad, disponibilidad, condición, plazo de entrega y posible interrupción de un artículo, no podemos garantizar el precio hasta que le proporcionemos un presupuesto actualizado.

Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
1018985d001
Desmilitarización:
No
Vigencia:
N/A
Unidad de medida:
1 HD
NIIN:
008094058

Información de la pieza
Weapon system essential

NSN
Número de acciones nacionales:
5310-00-809-4058 5310008094058
TXT
Descripción:
Flat Washer
INC
INC
Código de nombre del artículo:
13393
MRC:
The style designation indicating the configuration that most nearly corresponds to the cross-sectional shape of the item.AAGR
Cross Sectional Shape:
Rectangular
MRC:
The length of a straight line which passes through the center of a hole,and terminates at the circumference.AAUB
Hole Diameter:
Between 0.276 inches and 0.296 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the peripheral shape of the item.ABMW
Edge Shape:
Round
MRC:
The style designation indicating the configuration that most nearly corresponds to the shape of the center hole.ABMX
Center Hole Shape:
1 round
MRC:
A measurement of the smallest dimension of an item,in distinction from length or width.ABNM
Thickness:
Between 0.051 inches and 0.080 inches
MRC:
A measurement of the longest straight line across a circular cross-sectional plane.ADAV
Overall Diameter:
Between 0.620 inches and 0.640 inches
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
Family of hemtt vehicles (heavy expanded mobility tactical trucks) 3990-01-444-5196 cement mixer RG-33 auv mrap mrap - cougar
MRC:
The master requirement codes of those requirements which are technically critical by reason of tolerance,fit,performance,or other characteristics which affect identification of the item.CRTL
Criticality Code Justification:
Feat
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 1008 or steel comp 1009 or steel comp 1010 or steel comp 1011 or steel comp 1012 or steel comp 1013 or steel comp 1015 or steel comp 1016 or steel comp 1017 or steel comp 1018 or steel comp 1019 or steel comp 1020
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Astm A109 assn standard all material responses
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Cadmium and chromate
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
QQ-P-416, type 2, cl 3 federal specification single treatment response
MRC:
The number,letter,or symbol that indicates the type,style,grade,class,and the like,of an item in a nonidentifying specification or standard.ZZZT
Specification Or Standard:
A type and 1 grade and a class
