Número de pieza 10108519

Tube Fitting Flared Sleeve

Precios y disponibilidad

Envíe este formulario para conocer los precios actuales y la disponibilidad de esta NSN.
Número de pieza:
Cantidad:
Dirección de correo electrónico:
Teléfono:
Referencia:
Compañía:
Nombre:

No compartimos ni vendemos su información a nadie.
Privacidad | Letra chica

All major credit cards accepted as well as gov. p-cards

Imágenes

Imágenes de referencia de esta pieza

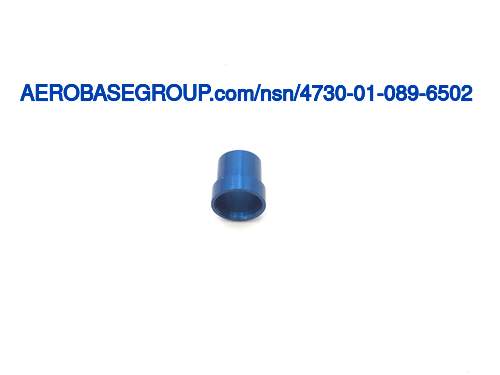

Imagen del número de acciones nacionales 4730-01-089-6502

El precio histórico de este producto está entre 1.7 and 2.295 USD. Dependiendo de la cantidad, disponibilidad, condición, plazo de entrega y posible interrupción de un artículo, no podemos garantizar el precio hasta que le proporcionemos un presupuesto actualizado.

Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
10108519
Desmilitarización:
No
Vigencia:
N/A
Unidad de medida:
25 EA
NIIN:
010896502

Información de la pieza
Weapon system essential

NSN
Número de acciones nacionales:
4730-01-089-6502 4730010896502
TXT
Descripción:
Tube Fitting Flared Sleeve
INC
INC
Código de nombre del artículo:
18027
MRC:
Indicates whether or not a ferrous alloy object has been subjected to a process whereby the outer portion is made substantially harder than the inner portion or core.AASG
Casehardening Indicator:
Not casehardened
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABHP
Overall Length:
0.500 inches
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
Aircraft F-16
MRC:
A measurement taken at right angles to the length of a flange,in distinction from thickness.AGFF
Flange Width:
0.172 inches
MRC:
The length of a straight line which passes through the center of a flange,and terminates at the outside circumference.AHTC
Flange Outside Diameter:
0.502 inches
MRC:
The angle of the end surface upon which the mated surface seats,expressed in degrees.AJFY
Seat Angle In Deg:
33.0
MRC:
The length of a straight line which passes through the center of the sleeve,with terminated points on the outside circumference.ARYW
Sleeve Outside Diameter:
0.432 inches
MRC:
The length of a straight line which passes through the center of the hose or tube for which the item is designed,and terminates at the outside circumference.CPMS
Hose/tube Outside Diameter For Which Designed:
0.375 inches
MRC:
The master requirement codes of those requirements which are technically critical by reason of tolerance,fit,performance,or other characteristics which affect identification of the item.CRTL
Criticality Code Justification:
Feat
MRC:
The element,compound,or mixture of which an item is fabricated,excluding any surface treatment.MATL
Material:
Aluminum alloy QQ-A-225/9, alloy 7075, T73
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Aluminum alloy 7075
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Anodize
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Sleeve
MRC:
Consists of plating,dip,and/or coating that cannot be wiped off.plating and/or coating is any chemical and/or metallic additive,electrochemical,or mild mechanical process which protects a surface.SURF
Surface Treatment:
Anodized MIL-A-8625, type 2
