Número de pieza:
10-60808-6
Desmilitarización:
Yes - DEMIL/MLI
NSN
Número de acciones nacionales:
TXT
Descripción:

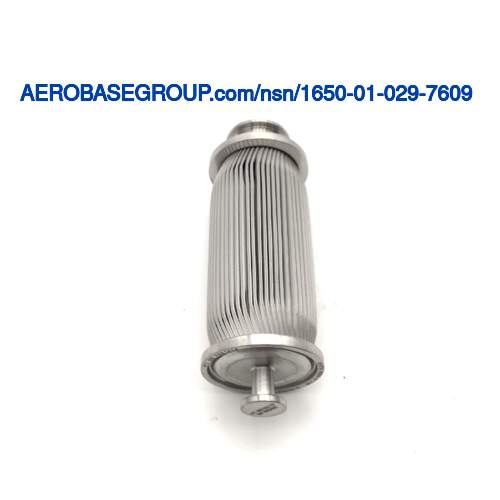

Fluid Filter Element
Código de nombre del artículo:
32624
MRC:
The length of a straight line which passes through the center of the body,and terminates at the circumference.ABPM
Body Diameter:
1.375 inches
MRC:
The length of a straight line which passes through the center of a body,and terminates at the inside circumference.ADAS
Body Inside Diameter:
0.747 inches
MRC:
The size of the smallest particle which the element is capable of removing from the fluid which passes through the filtering material.ADNH
Filtration Rating In Microns:
25.0 absolute
MRC:
The direction in which the fluid is passed through the item.ADNK
Flow Direction:
Parallel
MRC:
The amount of pressure loss in the system,due to the resistance of flow through the item.ADNP
Drop Pressure:
90.0 pounds per square inch
MRC:
Indicates the design type of the item.APGF
Design Type:
Reusable
MRC:
A value which expresses the degree of heat or cold as applied to the operation,or limitation of operation,of an item.AZKQ
Tempurature Rating:
Between -65.0 degrees fahrenheit and -250.0 degrees fahrenheit
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the body.AZTL
Bodylength:
3.910 inches
MRC:
An indication of the structure or characteristic of the filtering media.CRXW
Filtering Media Design:
Mesh single filtering media response
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 304 filtering medium
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Aisi assn standard single material response filtering medium
MRC:
The type of media for which the item is designed.MEDA
Media For Which Designed:
Fuel/oil hydrocarbon
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Cylindrical w/ container (rigid)
