Número de pieza 10-252980-204

Electrical Contact
Descripción

Socket, 20 ga

Disponibilidad de stock  Códigos de condición del producto

Número de pieza 10-252980-204 está en stock en las siguientes cantidades y condiciones.

  • NS: 3996
  • NE: 8074
  • SV: 1
  • AR: 1

Nota: La disponibilidad de este artículo se actualizó por última vez 05/24/2023 y puede haber cambiado desde entonces. Solicite una cotización para conocer los precios y la disponibilidad actualizados.

Precios y disponibilidad

Envíe este formulario para conocer los precios actuales y la disponibilidad de esta NSN.
Número de pieza:
Cantidad:
Dirección de correo electrónico:
Teléfono:
Referencia:
Compañía:
Nombre:

No compartimos ni vendemos su información a nadie.
Privacidad | Letra chica

All major credit cards accepted as well as gov. p-cards

Imágenes

Imágenes de referencia de esta pieza

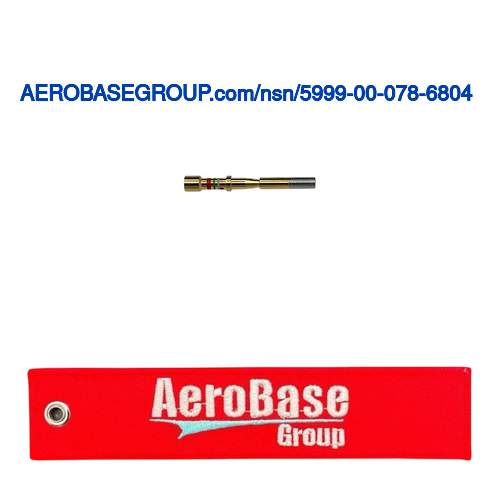

Imagen del número de acciones nacionales 5999-00-078-6804

El precio histórico de este producto está entre 1 and 1.35 USD. Dependiendo de la cantidad, disponibilidad, condición, plazo de entrega y posible interrupción de un artículo, no podemos garantizar el precio hasta que le proporcionemos un presupuesto actualizado.

Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
10-252980-204
Desmilitarización:
No
Vigencia:
N/A
Unidad de medida:
10 EA
NIIN:
000786804

Información de la pieza
Basic item identification number - bin - 259.

NSN
Número de acciones nacionales:
5999-00-078-6804 5999000786804
TXT
Descripción:
Electrical Contact
INC
INC
Código de nombre del artículo:
00443
MRC:
The application of color or a series of colors for the expressed purpose of identifying the specific functional design and/or the system application of an item.AAPC
Identification Code Color:
Red and green and white
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABHP
Overall Length:
0.854 inches
MRC:
A measurement of the longest straight line across a circular cross-sectional plane.ADAV
Overall Diameter:
Between 0.100 inches and 0.103 inches
MRC:
The length of a straight line which passes through the center of the cable entrance,and terminates at the circumference.AFQJ
Cable Entrance Diameter:
Between 0.048 inches and 0.050 inches
MRC:
A measurement of the longest dimension of the pin accommodation,in distinction from width.AKRP
Pin Accommodation Length:
Between 0.290 inches and 0.310 inches
MRC:
The length of a straight line which passes through the center of the pin accommodation,and terminates at the circumference.AKRQ
Pin Accommodation Diameter:
Between 0.042 inches and 0.044 inches
MRC:
The means of attaching the item.AXGY
Mounting Method:
Terminal
MRC:
An identifying number assigned by the government agency or commercial organization controlling the crimping tool.CRJP
Crimping Tool Identifying Number:
M22520/1-01
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Copper alloy contact
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Copper alloy body
MRC:
An indication of the precious material and its location in the item.PMLC
Precious Material And Location:
Body and contact surfaces gold and body and contact surfaces silver
MRC:
An indication of the precious material contained in the item,and the amount per a measurement scale.PMWT
Precious Material And Weight:
0.005 gold grains troy and 0.005 silver grains troy
MRC:
Identification of the precious material contained in the item.PRMT
Precious Material:
Gold and silver
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Gold body and silver body
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Gold contact and silver contact
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Socket contact
MRC:
The specification,standard,drawing,or similar instrument that specifies environmental and performance requirements or test conditions under which an item is tested and establishes acceptable limits within which the item must conform identified by an alphabetic and/or numeric reference number. includes the commercial and government entity (cage) code of the entity controlling the instrument.TEST
Test Data Document:
81349-MIL-C-39029 specification (includes engineering type bulletins brochures etc that reflect specification type data in specification format excludes commercial catalogs industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical" "average" "" etc)
MRC:
Indicates the type and number of terminals for providing electrical connection.TTQY
Terminal Type And Quantity:
1 crimp axially at one end
MRC:
The document designator of the specification or standard which established the item of supply.ZZZK
Specification Data:
81349-MIL-C-39029/32 government specification
